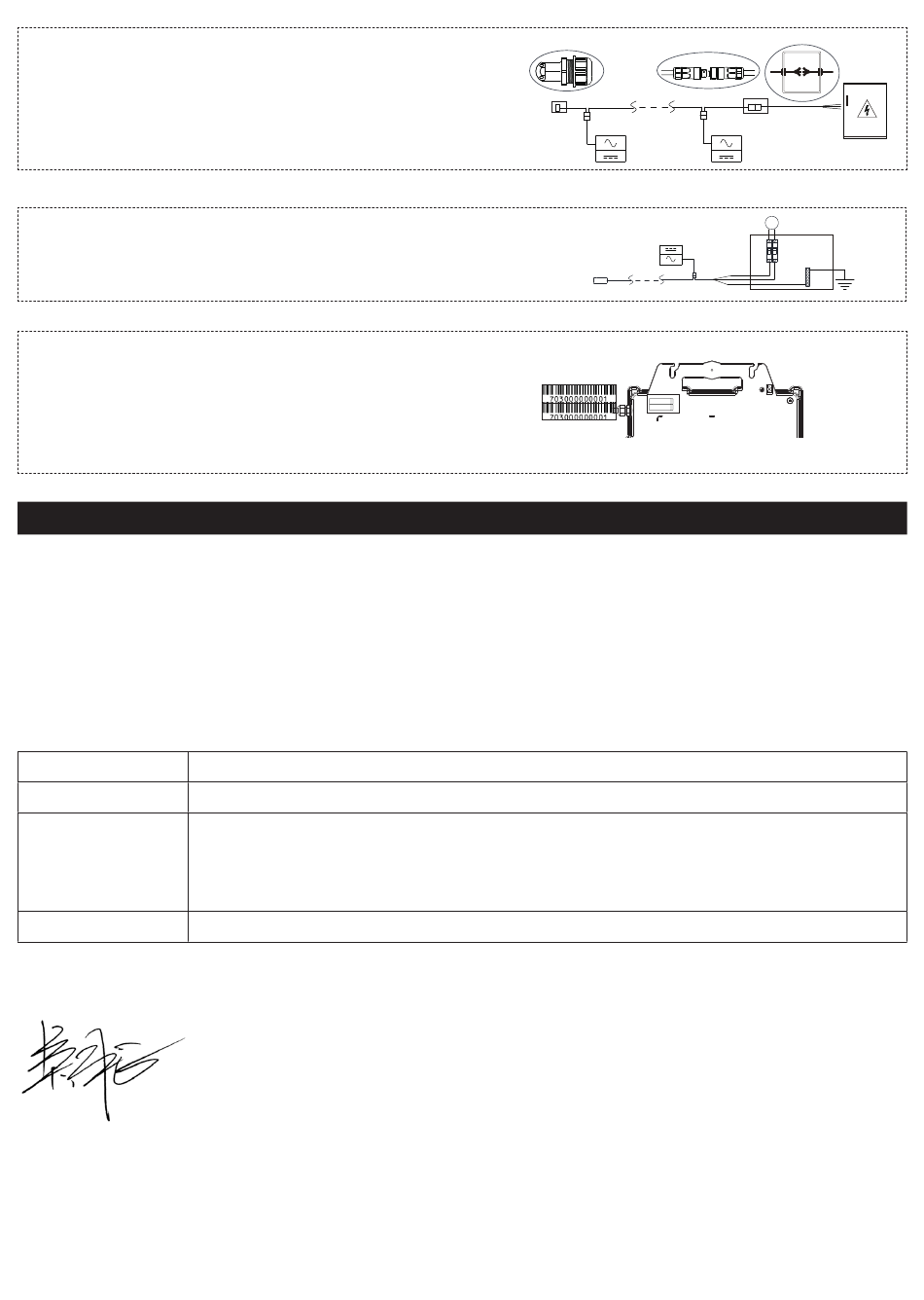

Step 8
AC extension cable
When an AC extension cable is required, users can either connect the AC bus cable and AC extension
cable within a junction box or use a pair of male/female AC connectors provided by APsystems as
optional accessories.
Step 9
Connecting APsystems microinverters to the grid
a. Please install bi-polar circuit breakers with the appropriate rated current or according to local regulations. These
circuit breakers are mandatory for grid connection.
b. Installation of leakage current breakers or AFCI/GFCI breakers is not recommended.
Step 10 Completing the APsystems installation map
a. Each APsystems Microinverter comes with 2 removable serial number labels.
b. Complete the installation map by affixing the ID label of each microinverter at the appropriate location.
c. The second serial number label can be adhered to the solar module frame. This label will assist in later
confirmation of the microinverter's position without the need to dismantle the PV module.
NOTE:
①. The arrangement of the microinverters' serial numbers in the installation map is designed for standard
installations.
②. The Installation Map can be found in the appendix on the last page of this manual.
③. When configuring the ECU, use the ECU_APP (accessible through the EMA Manager) to scan the serial
numbers on the map (refer to the ECU instruction manual for further details).
We, ALTENERGY POWER SYSTEM INC.
Of
Building 2, No. 522, Yatai Road, Nanhu District, Jiaxing City, Zhejiang 314050, China declare under our sole responsibility that the product
Product Description: Microinverter
Model No.: QS2
to which this declaration relates, is in conformity with the following standards and/or other normative documents.
Safety
Health
EMC
Radio
We hereby declare that the above named product is in conformity with to all the essential requirements of Radio Equipment Directive 2014/53/EU (RED).
Title: Director
Address: Jiaxing, China
Date: 2024/12/18
Zigbee Frequency Range：2405MHz - 2480MHz
Zigbee Maximum Power (EIRP)：＜ 20 dBm
EU DECLARATION OF CONFORMITY
（No. 20241218）
EN 62109-1:2010; EN 62109-2:2011
EN 62479:2010; EN 50663:2017
EN 62920:2017+A11:2020+A1:2021;
EN 55011:2016+A1:2017+A11:2020+A2:2021
EN IEC 61000-6-3:2021; EN IEC 61000-6-4:2019
EN IEC 61000-6-1:2019; EN IEC 61000-6-2:2019
EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021
EN 301 489-1 V2.2.3 (2019-11); EN 301 489-17 V3.2.4 (2020-09)
EN 300 328 V2.2.2(2019-07)
Importer: Altenergy Power System Europe B.V
Address: Karspeldreef 8, 1101 CJ, Amsterdam, The Netherlands
Email: support.emea@Apsystems.com
Manufacturer: Altenergy Power System Inc.
Address: Building 2, No.522, Yatai Road, Nanhu District, Jiaxing City, Zhejiang 314050, China
3 EN
Bus Cable End Cap
Male/Female AC Connectors
AC Junction Box
OR
AC Extension Cable
METER
L
N
PE
