PRODUCT INSTALLATION
POWER SUPPLY
Please use the attached power, note that power voltage and frequency are the same as the marked voltage
and frequency of device when connecting power. Every device's power should be connected separately, so that
device can be controlled individually.
DMX CONNECTION
Connection between laser lights and DMX must use the shield cable of diameter more than 0.5mm. Please use
the attached pin XLR plug/socket to connect the DMX output/input interface. The connection between sokcet
and cable as below (note the plug/socket's 3 pin number and position).

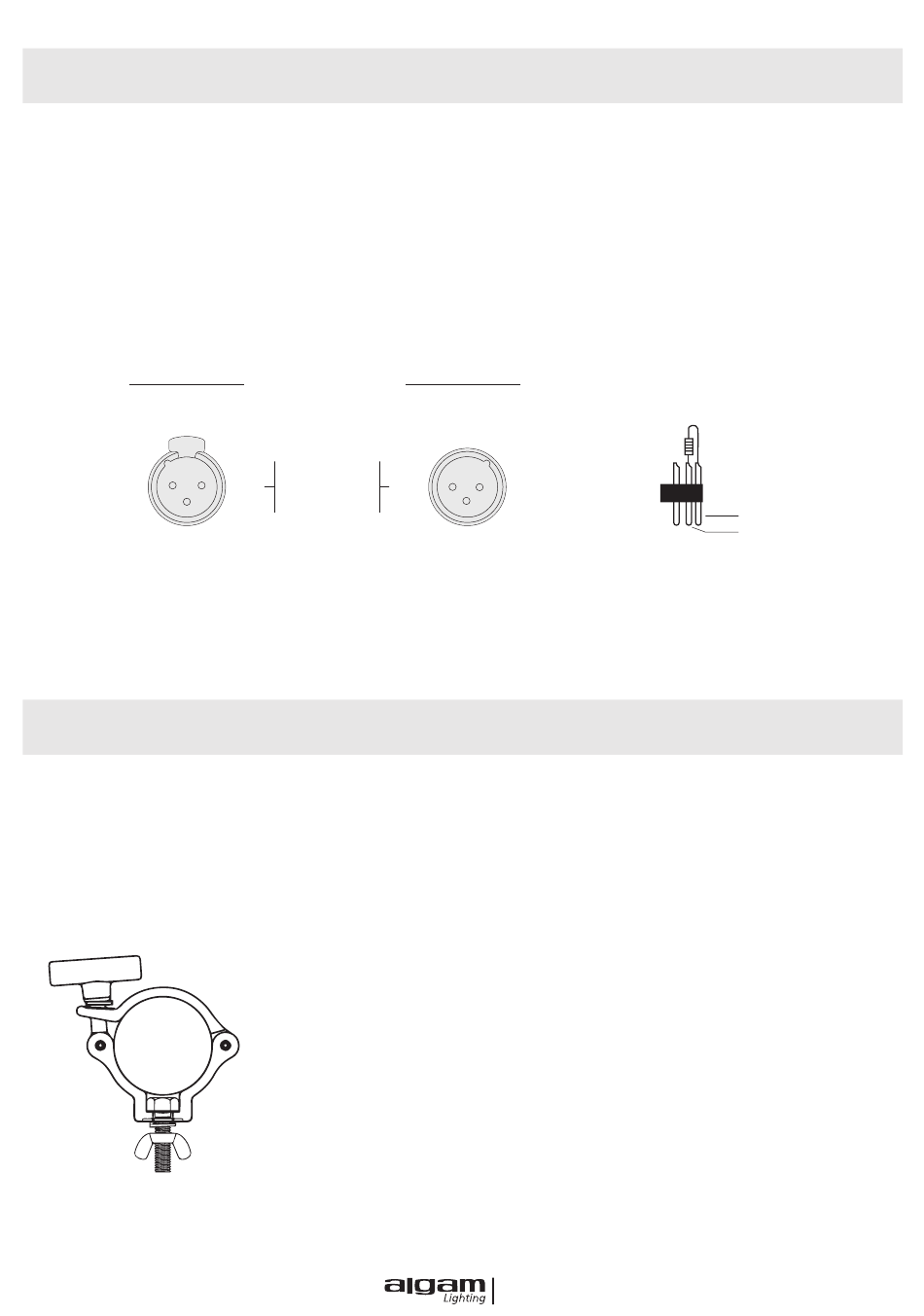

DMX-OUTPUT
XLR mounting-sockets (rear view)
2
1
3
When using standard DMX512 control signal, the last device's output interface must be connected to a DMX plug.
This plug is putting a 120 ohm resistance between "canon" plug's 2 pin and 3 pin. Showing as below pic. Sticking
this plug into the last device's signal output interface, it will avoid the interference during the process of signal
transmission.
INSTALLATION - RIGGING
This fixture can be installed on the floor on a flat and stable surface. It can be clamped to a struss or similar
rigging structure in any orientation.
Check that the rigging structure can support at least 10 times the weight of all fictures and equipment which
are installed on it. When installing the fixture on truss, it is recommanded to use half-coupler clamp (see below).
DMX-INTPUT
XLR mounting-plugs (rear view)
1 ∙ Shield
2 ∙ Shield (-)
1
3 ∙ Shield (+)
One or two pieces OMEGA ( depends on the version) brackets are supplied with
the fixture . Fix the rigging clamp with self-locking nuts to the OMEGA . OMEGA
brackets are locked to the fixture with 1/4 turn fast lock screw system.
SECURE WITH SAFETY CABLE !
Secure the fixture with safety cable.
2
3
P.16
PIN3
PIN2
