3. INSTALLATION INSTRUCTIONS

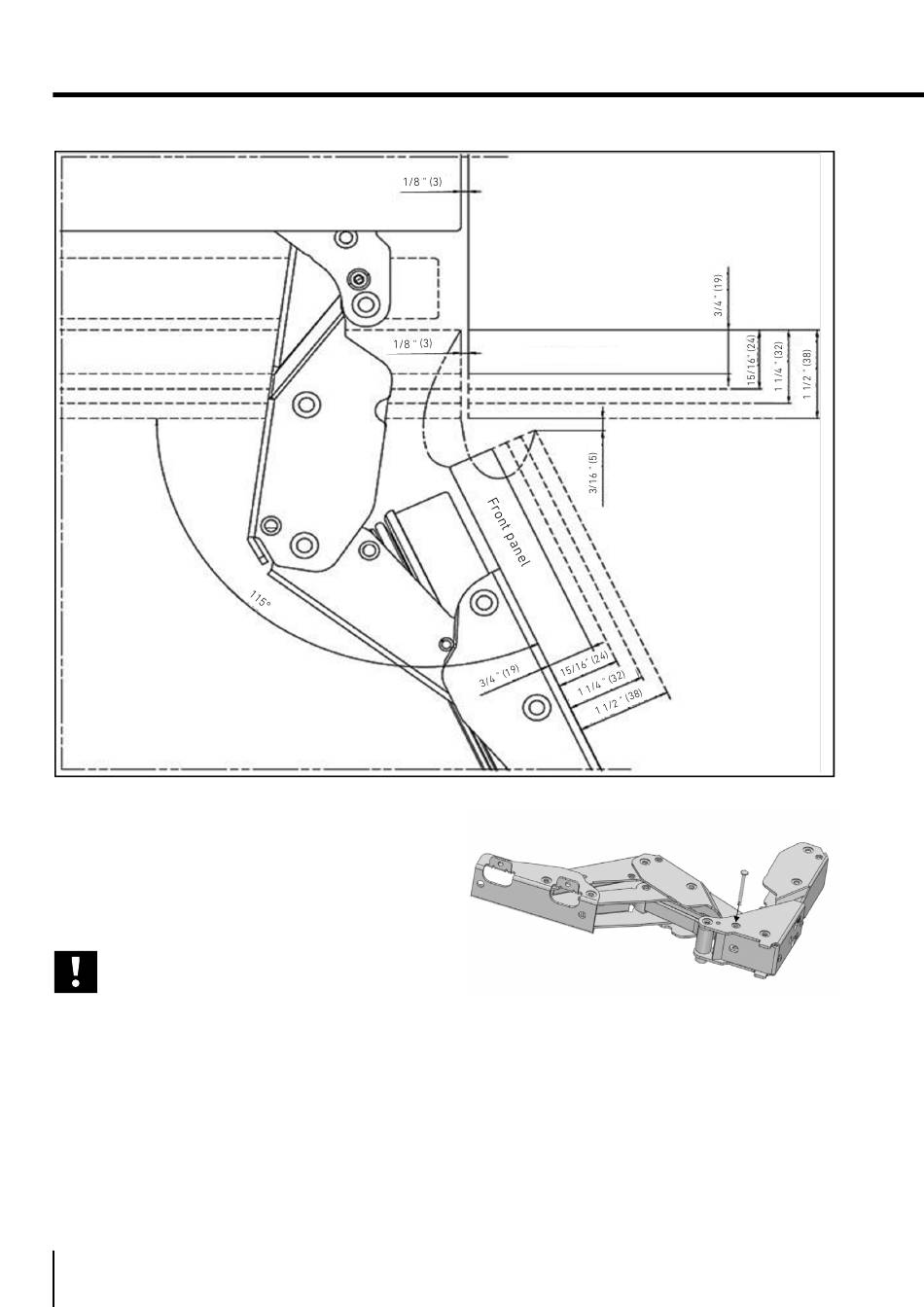

CHOOSING THE DOOR THICKNESS
• The door of your refrigerator can open to 115°
maximum. If you want the doors to open to this
degree, you can choose from the thicknesses
shown in the image above.
WARNING:
If the door thickness is more than 1½" (38
mm), the door should not open more than
90°. You must use a limiting pin on the
hinge.
A limiting pin (part #17) is provided with the unit
to prevent the door from opening beyond 90° if
necessary; it can be installed on the hinge. Door
thickness allowances when using the limiting pin
are shown in the diagram below.
32
Cabinet front
