ASSEMBLY INSTRUCTIONS
1.
Carefully remove all packaging. Check the product thoroughly for damage
or obvious faults.
If you suspect the unit to be faulty, please do not use, but contact your
supplier immediately for service.
2.
Release the side locking levers (fig. 1) left and right of the frame.
3.
Carefully insert the brake assembly (fig. 2) within the frame.
4.
Adjust the handles to the height desired, ensuring that both brakes are even
in height and the tri-walker is sitting evenly on the ground.
5.
Retighten the side lever locks (fig.1). Ensure you have tightened these locks
sufficiently so that the adjustable brake tubes will not move accidentally
and the locking levers are finger tight.
6.
Fix the brake cables into the integral brake cable clip welded onto the frame
if not already assembled (fig.3).
LOCKING MECHANISM
1.
Open out the tri-walker frame by pulling the grip
handles outwards in opposite directions forming a 'V'
shape (fig.4). Once this is completed pull/push the
central locking bracket so the plates are parallel by
using the handle mounted in the centre.
Ensure the frame is locked before using it and never
use a semi-closed position as this may lead to the
frame collapsing.
2.
To close your tri-wheeled walker stand behind the walker and pull the handle
towards yourself to release the lock. Then apply pressure to the outside of the
handgrips and the walker will fold. Please ensure fingers are clear of the locking
mechanism to reduce the risk of entrapment when closing the Tri-Walker.
Fixing and Maintenance Instructions

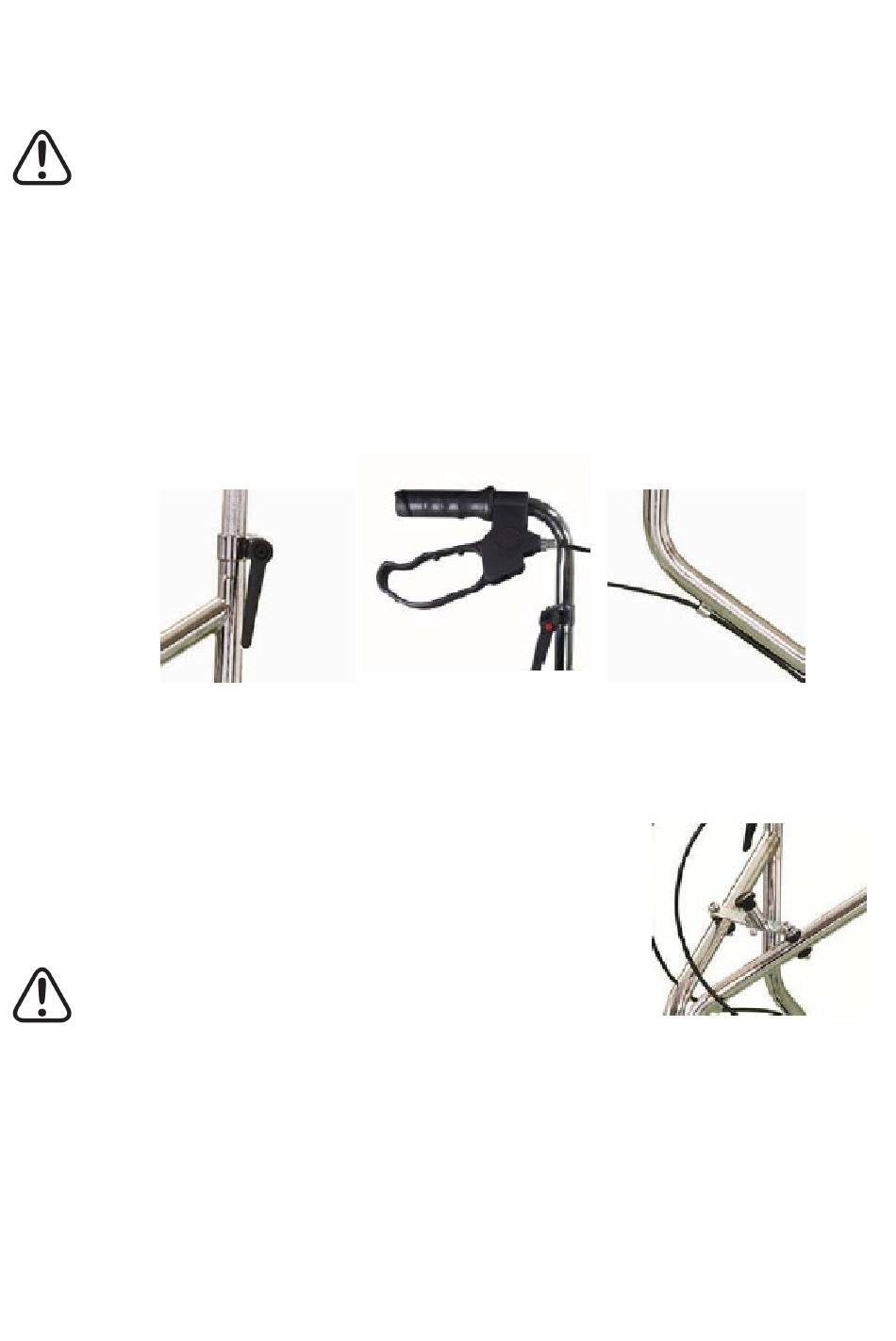

Fig. 1
Fig. 2
3
Fig. 3
Fig. 4
Ver.3 03/2013 (1326)
