2.9.2 Finishing recessed models
General
Note:
n
Ensure that the unit remains accessible for
maintenance and repair, via an inspection hatch, for
instance.

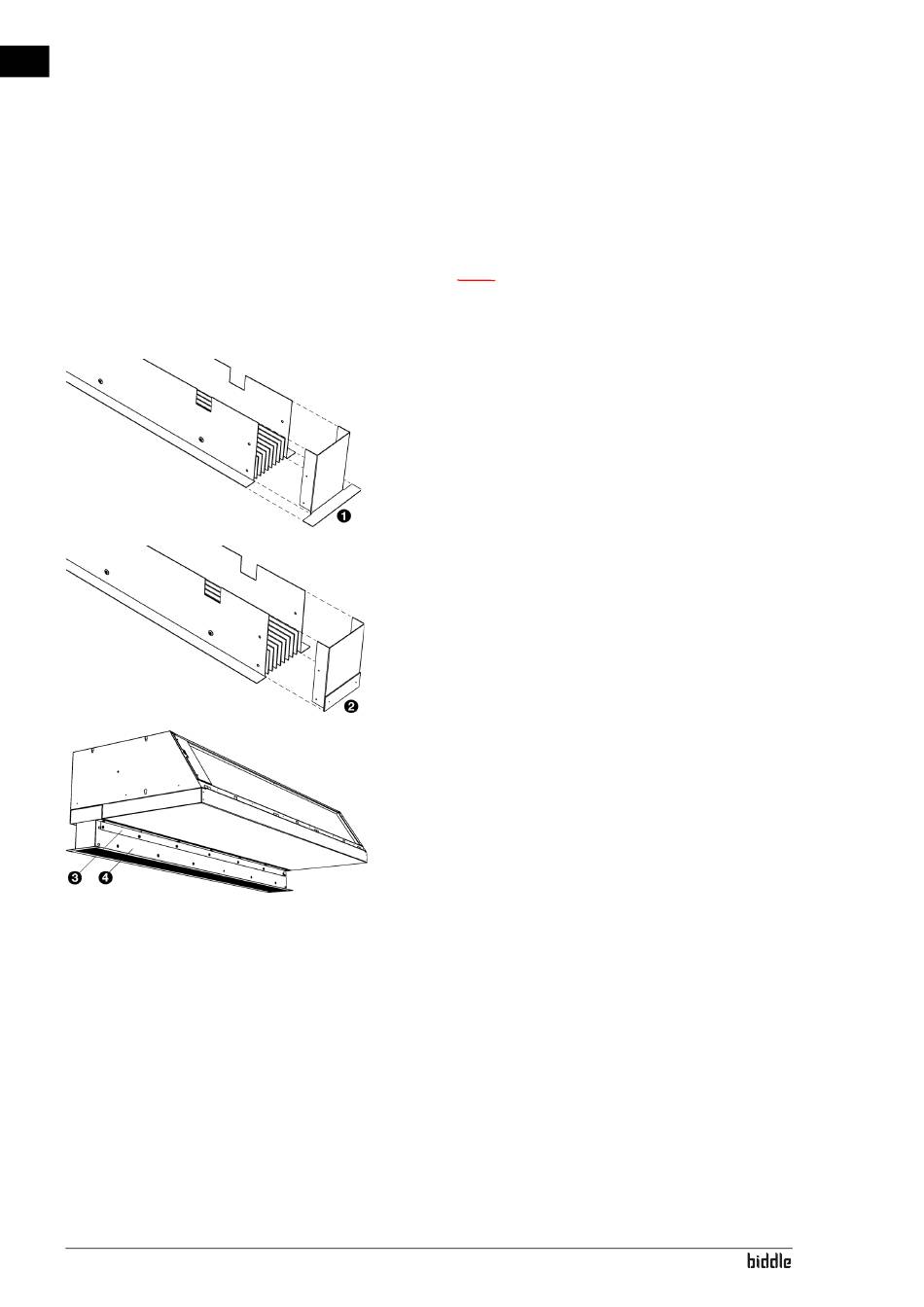

Adjusting the discharge duct
If linking two or more units to each other contiguously, you
must adjust the discharge duct so that the finishing edges are
not in each other's way.
1. Remove the end piece with finishing edge 1.
2. Mount the end piece without finishing edge 2.
Mounting the discharge duct
1. Make a hole in the ceiling for the discharge (for the dimen-
sions, see table regarding dimensions of the hole for the
discharge section).
2. Fix the two angle sections 3 with sheet metal screws to
the unit, along the edges of the discharge opening.
3. Slide the discharge duct 4 into the unit's discharge open-
ing until the desired height is reached.
4. Using sheet metal screws, fix the discharge duct to the
angle sections 3.
5. Connect the IR sensor in the discharge duct to the plug
intended for that purpose. To do this, open the inspection
panel.
