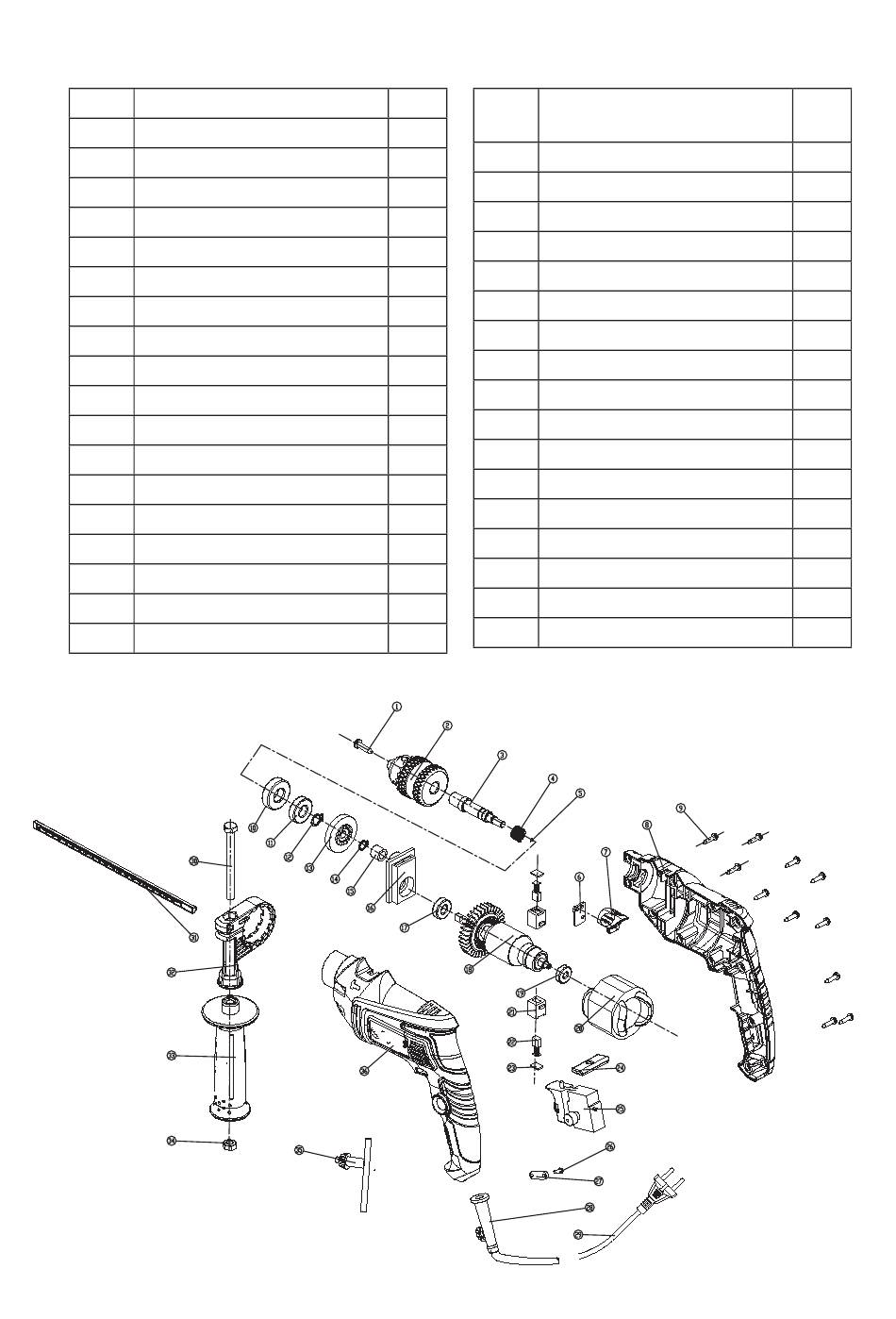

RD-ID40 Exploded view & Spare Parts List
1 screw
2 chuck
3 spindle
4 spring
5 steel ball
6 impact pin
7 button
8 right housing
9 screw
10 bearing
11 bearing
12 circlip
13 gear
14 circlip
15 bearing
16 impact block
17 bearing
18 rotor
19 bearing
All manuals and user guides at all-guides.com
1
1
1
1
1
1
1
1
11
1
1
1
1
1
1
1
1
1
1
Parts Description
No.
20 stator
21 brush holder
22 carbon brush
23 brush cover
24 swtich button
25 swtich
26 screw
27 cable fixer
28 cable sheath
29
cable
30 screw
31
ruler
32 handle connector
33
handle
34 nut
35
chuck spanner
36 left housing
Qty
1
2
2
2
1
1
2
1
1
1
1
1
1
1
1
1
1
