NOTE: All parts removed must be saved to allow the door swing to be reversed
1. 1.Use the sharp tools to pry open the decoration nail on the top of the cabinet and
the cap of door spindle carefully. (Fig 1)
2. Open the door to an angle, unscrew the screw of the door hinges cover, remove the
cover of the upper door hinge; then unscrew all the screws on the upper door hinge.
Be careful to hold the glass door firmly after removing the screw and take off the
door. (Fig 2)
3. Remove the screw of lower door hinge and the left side screw of the front vent (Fig
3); and then install the lower door hinge at the designated position on the opposite
side (Fig 4).

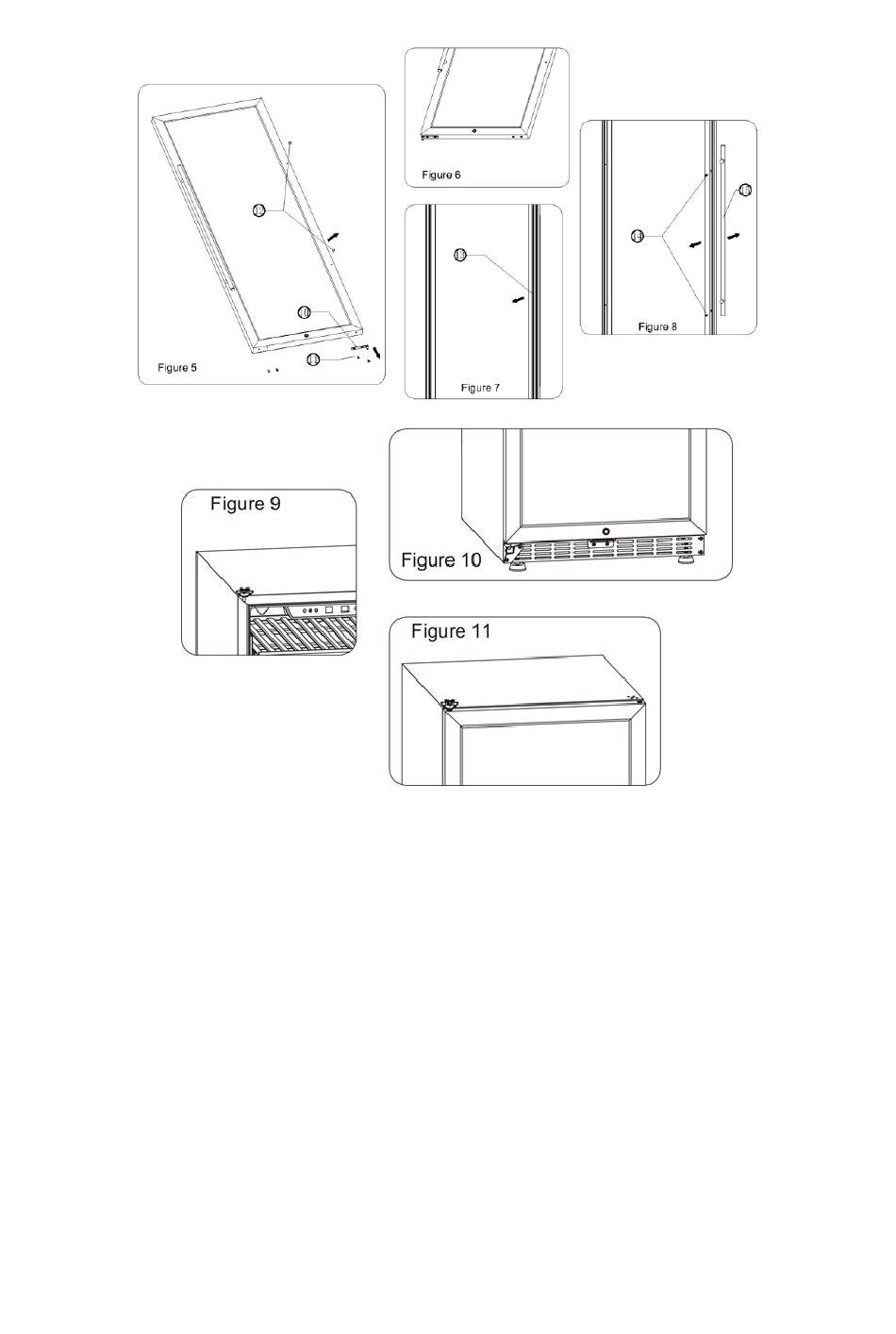

4. Remove the screw of door handle, then remove the bottom screw of left side of the
door and remove the lower supporter of the door. (Fig 5); Install the lower support of
the door to the opposite side. (Fig 6).
5. Pull open middle section of the door gasket, then it will come out the handle screw
hole. (Fig 7); remove the handle and install it on the opposite side. (Fig 8)
6. Install the upper door hinge to the opposite side and tighten the screws. (Fig 9)
7. Set glass door shaft to aim the shaft of lower door hinge (Fig 10); and then aim the
upper door hinge (Fig 11); adjust the door and the cabinet is aligned and leveled,
then tighten all the lock screws.
