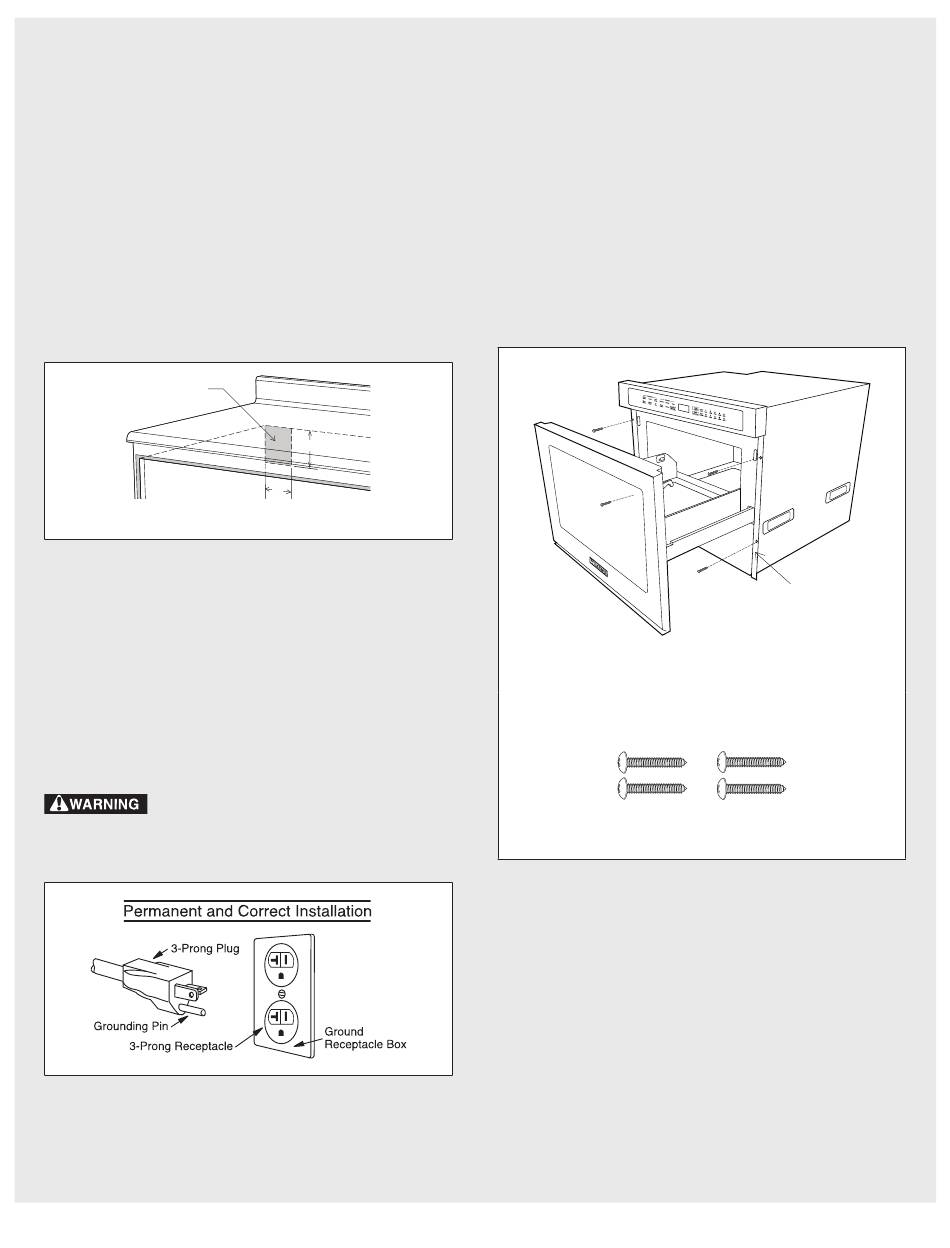

ELECTRICAL OUTLET
The electrical requirements are a 120 volt 60 Hz, AC only, 20
amp. or more protected electrical supply. It is recommended
that a separate circuit serving only this appliance be provided.
The drawer is equipped with a 3-prong grounding plug. It must
be plugged into a wall receptacle that is properly installed and
grounded. If you only have a 2-prong outlet, have a qualified
electrician install a correct wall receptacle.
Note: If you have any questions about the grounding or
electrical instructions, consult a qualified electrician or service
person. always check electrical codes for requirements.
The oven can also be installed using an outlet in an adjacent
cabinet within the area where the provided electrical cord
can reach.
Suggested electrical
outlet location
Figure
GROUNDING
INSTRUCTIONS
This appliance must be grounded. The Convection DrawerMi-
cro oven is equipped with a cord having a grounding wire with
a grounding plug. It must be plugged into a wall receptacle
that is properly installed and grounded in accordance with the
National Electrical Code and local codes and ordinances. In
the event of an electrical short circuit, grounding reduces risk
of electric shock by providing an escape wire for the electric
current.
– Improper use of the grounding plug can
result in a risk of electric shock. Do not use an extension cord.
If the power supply cord is too short, have a qualified electri-
cian or serviceperson install an outlet near the appliance.
5"
4"
8
DRAWER INSTALLATION
1. Place the Convection DrawerMicro oven adjacent to the
wall or cabinet opening. Plug the power supply cord into
the electrical outlet.
2. Carefully guide the Convection DrawerMicro oven into the
prepared opening. avoid pinching the cord between the
oven and the wall.
3. Slide the Convection DrawerMicro oven all the way until the
mounting flange is flush with the face of the cabinet. See
Figure 9.
4. Open the drawer. Using the 4 holes on the drawer as a
template, pre-drill the cabinet using a
5. Secure the drawer with the 4 screws supplied. See Figure 10.
Parts supplied - 4 Screws
MODEL AND SERIAL NUMBER
LOCATION
E7
1
/
" bit. See Figure 9.
16
Side
Rail
Figure 9
Figure 10
