Installation Overview
Qty: 6 PCS
Qty: 4 PCS
(For dry wall or
sheet rock only)
Qty: 6 PCS
Note: Type "A" anchors are
designed for for dry wall or
sheet rock. Not to be used
with any other types of walls.
Installation
Confirm where you want your range hood installed:
1.
Confirm your centerline and side measurements of
each piece of hardware.
between stove top and the bottom of range hood and
confirm a *recommended distance of 28" to 31".
*Due to different ceiling height configurations,
recommended height may not be applicable. Use removable tape, pencil or erasable marker
to mark your ideal installation.
Mark the mounting locations for the range hood body:
2.
Make sure the range hood is level, not tilted, and not colliding against other objects.
Measure the distance
Pg 10

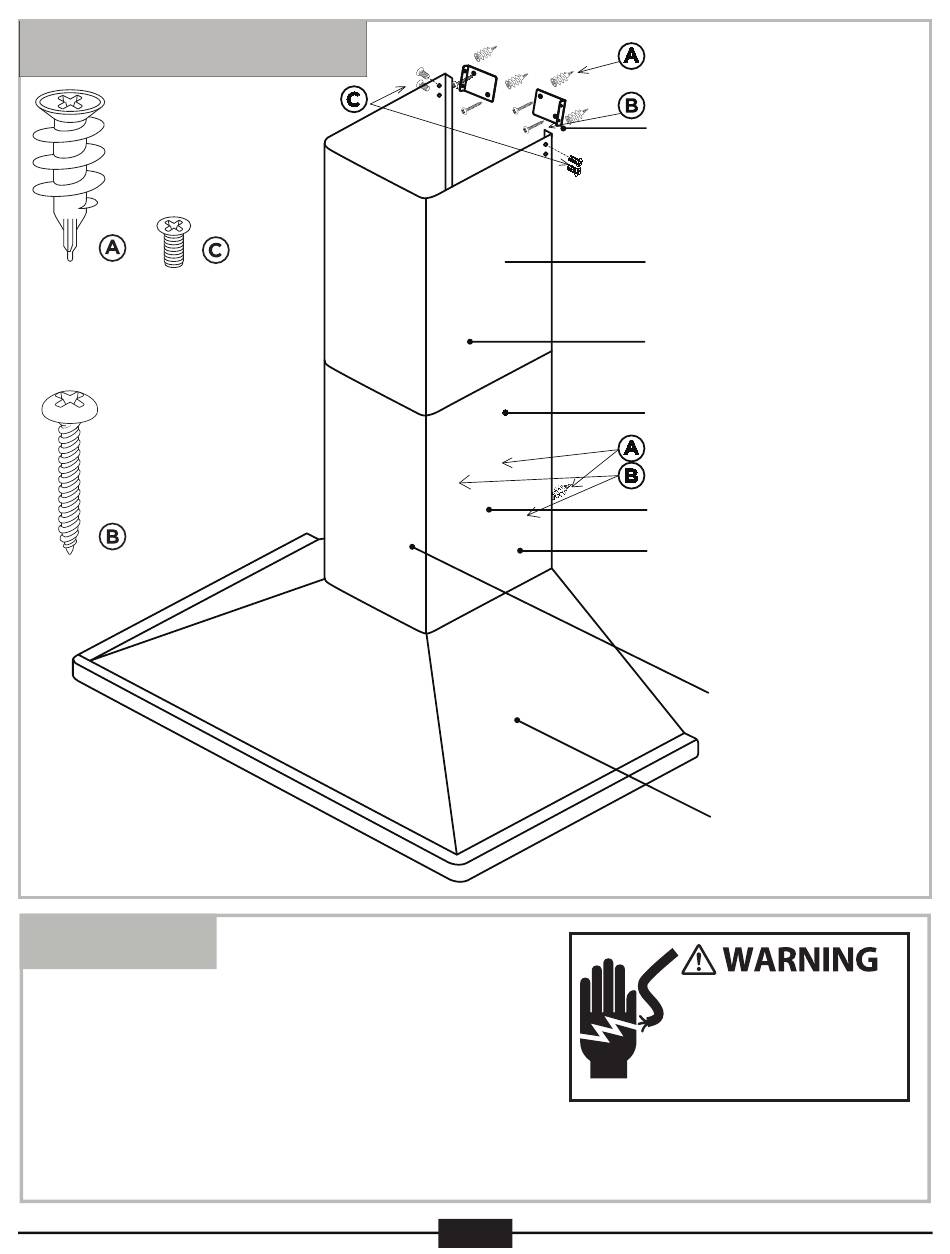

Upper Chimney
Mounting Bracket
Upper Chimney
Duct work and electric
wiring region
Lower Chimney
6" Round Duct (exhaust)
Motor Housing
Electric Circuit Box
Wall Mount
Range Hood
Electrical Shock Hazard!
Do not perform service on an electrically
live system. Disconnect the main
electrical supply before servicing this
device. Touching electrical connectors or
other exposed electrical circuitry inside
this range hood when they are energized
could result in death, serious bodily injury,
or property damage.
