Venting Methods
• This range hood is factory set for venting through the roof or wall.
• Vent work can terminate either through the roof or wall. To vent through a wall, a 90°
elbow is needed.
IMPORTANT:
• NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces,
ceiling, attics or garages. All exhaust must be ducted to the outside.
• Use metal/aluminum duct work only.
• Fasten all connections with sheet metal screws and tape all joints with aluminum foil
tape or equivalent.
• Use caulking to seal exterior wall or roof opening around the cap.

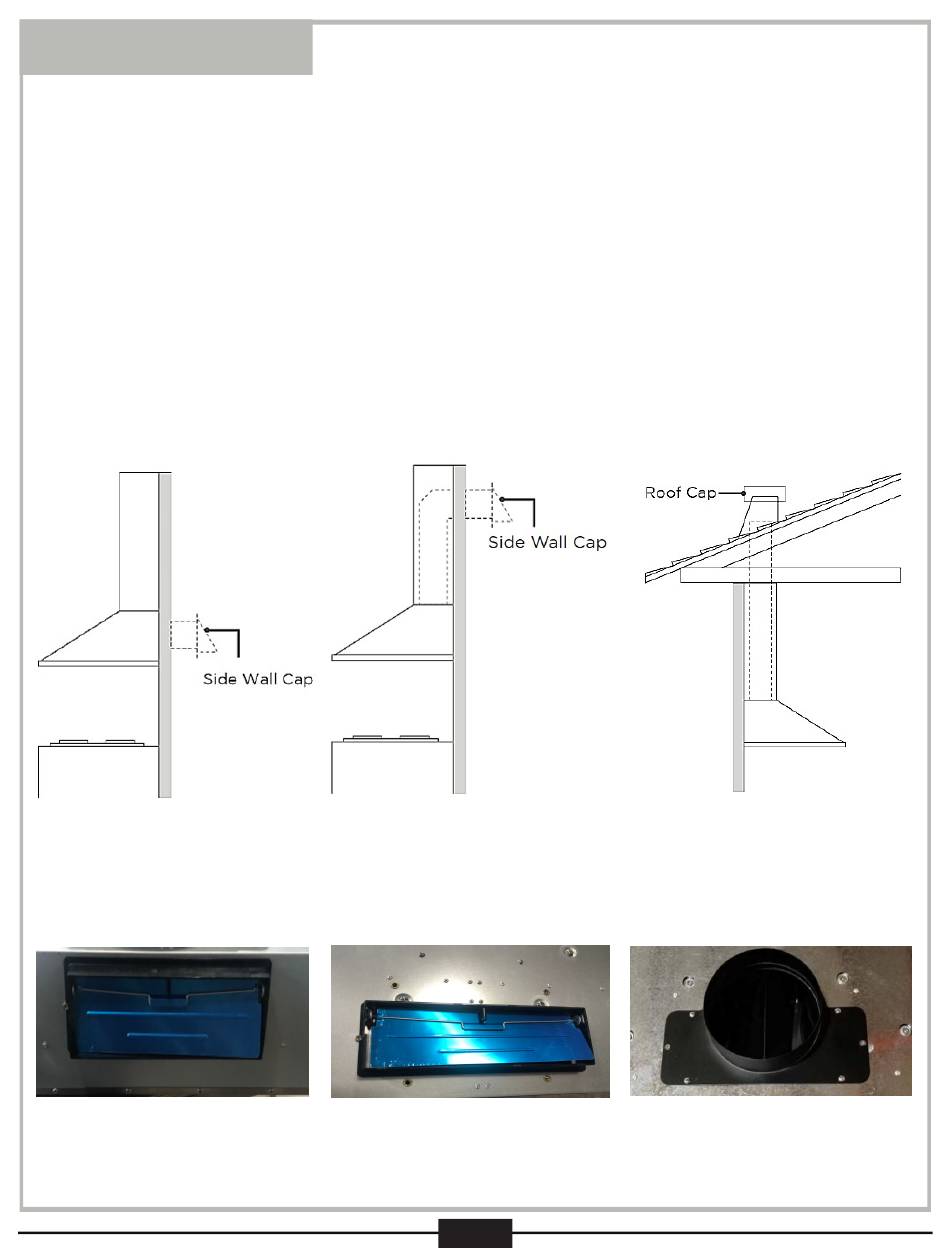

Horizontal Wall Venting
Type 1
Type 1
3 1/4" x 10" rectangular vent
adapter behind the range hood
Type 2
Type 2
3 1/4" x 10" rectangular vent
adapter on top of the range hood
Pg 7
Vertical Roof Venting
Type 3:
Type 3
6" round vent adapter on the
top of the range hood.
