Chamberlain LiftMaster SECURITY+ 3595C 3/4 HP Manuel D'instructions page 30

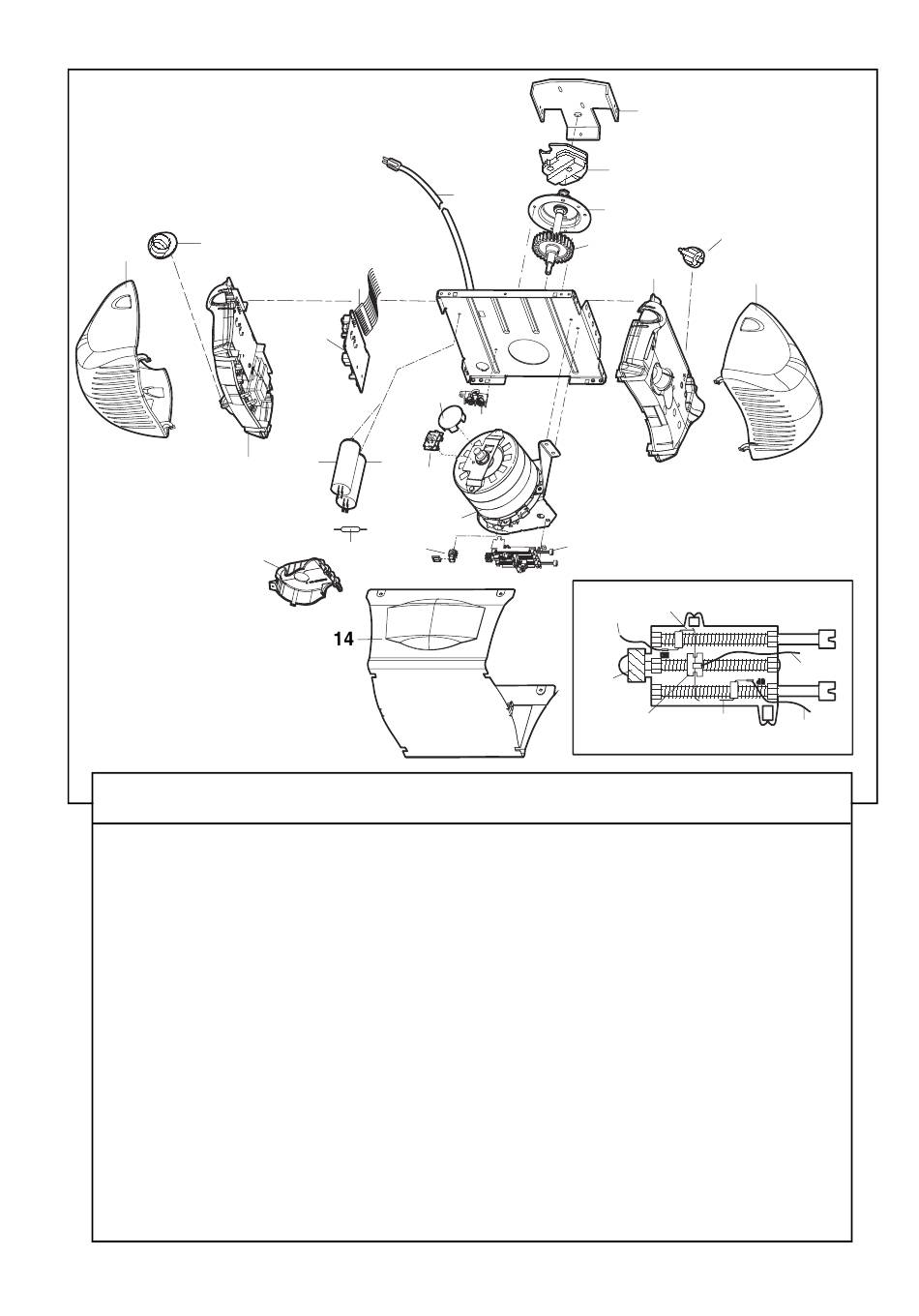

Motor Unit Assembly Parts
7
8
20
15
KEY PART
NO. NO.
1 41C5069 Chassis support bracket assy. kit
2 41A4208-2 Chain spreader
3 41A5658 Gear and sprocket assembly
Complete with: Spring washer,
thrust washer, retaining ring,
bearing plate, roll pins (2), drive
gear and worm gear, helical gear
w/retainer and grease
4 41A2817 Drive/worm gear kit w/grease,
roll pins (2)
5 41B4245-1 Line cord
6 41A5484 End panels w/all labels
7 4A1344 Light socket
8 108D78 Lens
9A 30B530 Capacitor 56uF
9B 30B529 Capacitor 40uF
9C 41A5637 Resistor
10 41A3150 Terminal block w/screws
11 81C253 Limit switch drive & retainer
12 41A5640 Limit switch assembly
All manuals and user guides at all-guides.com
19
18
9A
9B
17
11
9C
DESCRIPTION
5
4
16
10
13
12
Brown
Wire
Drive
Gear
KEY PART
NO. NO.
13 41D5563-1
14 41A5633-1
15 41A5532
16 41A2822-1
17 41C4398A
18 41AC075-2
19 41C5657
41C5587
20 41D180-1
41A2826
41A2825
30
1
2
3
7
6
8
(Down)
LIMIT SWITCH ASSY.
Contact
Center Limit (Up)
Contact Contact
DESCRIPTION
Universal replacement motor &
bracket assembly
Complete with: Motor, worm,
bracket, gear case, bearing
assembly, RPM sensor
Cover
Gear case
Interrupter cup assembly
RPM sensor assembly
Receiver logic board assy.
Complete with: Logic board, end
panel w/all labels, light socket
High voltage wire harness assy.
Low voltage wire harness assy.
End panel w/all labels
NOT SHOWN
Motor shaft bearing kit
Opener assembly hardware kit
(includes screws not designated
by a number in illustration)
Grey
Wire
Yellow
Wire
