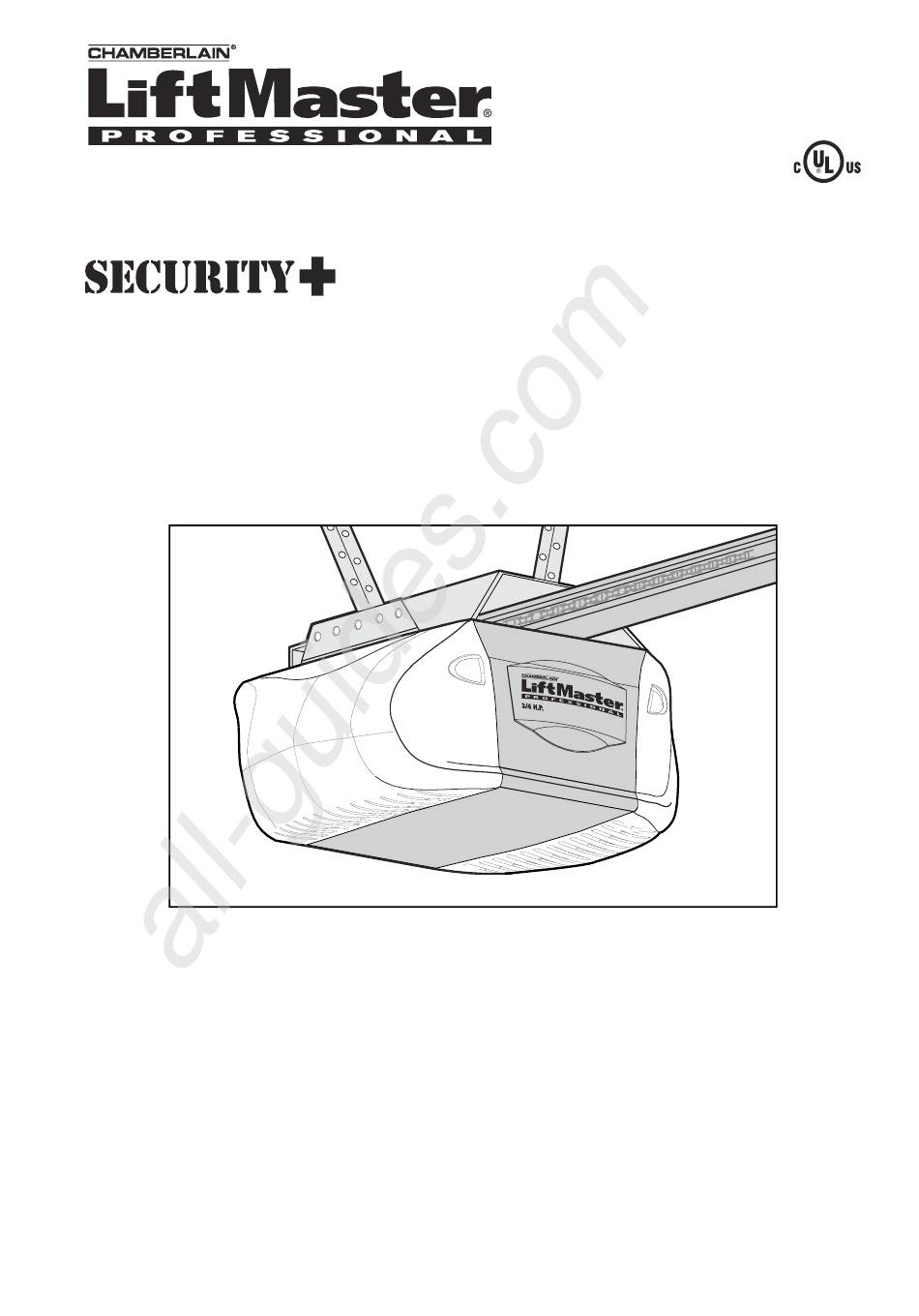

All manuals and user guides at all-guides.com The Chamberlain Group, Inc. 845 Larch Avenue Elmhurst, Illinois 60126-1196 www.liftmaster.com ® GARAGE DOOR OPENER Model 3595C 3/4 HP For Residential Use Install on Sectional Doors ONLY THIS OPERATOR IS INTENDED FOR USE ONLY WITH I-BEAM RAILS.
Page 2
All manuals and user guides at all-guides.com TABLE OF CONTENTS Introduction Adjustment 20-22 Safety symbol and signal word review......2 Adjust the travel limits ..........20 Preparing your garage door ........3 Adjust the force ............21 Tools needed ...............3 Test the safety reversal system.........22 Planning ..............4 Test the Protector System ®...
Page 3
All manuals and user guides at all-guides.com Preparing your garage door WARNING Before you begin: To prevent possible SERIOUS INJURY OR DEATH: • Disable locks. • ALWAYS call a trained door systems technician if CAUTION • Remove any ropes connected to garage door. garage door binds, sticks, or is out of balance.
Page 4
All manuals and user guides at all-guides.com Planning WARNING Identify the type and height of your garage door. Without a properly working safety reversal system, Survey your garage area to see if any of the persons (particularly small children) could be CAUTION conditions below apply to your installation.
Page 5
All manuals and user guides at all-guides.com Carton Inventory Your garage door opener is packaged in two cartons purchased. If anything is missing, carefully check the which contain the motor unit and all parts illustrated packing material. Parts may be stuck in the foam. below.
Page 6
WARNING All manuals and user guides at all-guides.com CAUTION ASSEMBLY STEP 1 Attach the Rail to the Motor Unit To avoid SERIOUS damage to garage door opener, use ONLY those bolts/fasteners mounted in the top of To avoid installation difficulties, do not run the the opener.
Page 7
All manuals and user guides at all-guides.com ASSEMBLY STEP 4 Lock Tighten the Chain Washer Outer Nut Inner Nut To Tighten Outer Nut • Spin the inner nut and lock washer down the threaded shaft, away from the trolley. To Tighten Inner Nut •...
Page 8
All manuals and user guides at all-guides.com Unfinished INSTALLATION STEP 1 OPTIONAL Ceiling CEILING Determine the Header Bracket MOUNT Location HEADER BRACKET Header Wall WARNING WARNING Vertical Centerline of Garage Door To prevent possible SERIOUS INJURY or DEATH: • Header bracket MUST be RIGIDLY fastened to Structural CAUTION WARNING...
Page 9
All manuals and user guides at all-guides.com INSTALLATION STEP 2 Install the Header Bracket Wall Mounting Holes You can attach the header bracket either to the wall above the garage door, or to the ceiling. Follow the CEILING MOUNT ONLY The nail hole is for instructions which will work best for your particular positioning only.
Page 10
All manuals and user guides at all-guides.com INSTALLATION STEP 3 Attach the Rail to the Header Header Wall Bracket Header Bracket Chain • Position the opener on the garage floor below the Pulley header bracket. Use packing material as a Bracket Header protective base.
Page 11
All manuals and user guides at all-guides.com WARNING INSTALLATION STEP 5 Hang the Opener To avoid possible SERIOUS INJURY from a falling garage door opener, fasten it SECURELY to structural CAUTION Three representative installations are shown. Yours supports of the garage. Concrete anchors MUST be used may be different.
Page 12
WARNING WARNING All manuals and user guides at all-guides.com CAUTION WARNING INSTALLATION STEP 6 Install the Door Control To prevent possible SERIOUS INJURY or DEATH from electrocution: Locate door control within sight of the door at a • Be sure power is not connected BEFORE installing door minimum height of 5 feet (1.5 m) where small children control.
Page 13
WARNING All manuals and user guides at all-guides.com CAUTION INSTALLATION STEP 7 Install the Light To prevent possible OVERHEATING of the endpanel or light socket: • Press the release tabs on both sides of lens. • DO NOT use short neck or specialty light bulbs. Gently rotate lens back and downward until the •...
Page 14
All manuals and user guides at all-guides.com WARNING WARNING INSTALLATION STEP 9 Electrical Requirements To prevent possible SERIOUS INJURY or DEATH from electrocution or fire: CAUTION WARNING To avoid installation difficulties, do not run the • Be sure power is not connected to the opener, and opener at this time.
Page 15
All manuals and user guides at all-guides.com WARNING INSTALLATION STEP 10 Install The Protector System ® • Be sure power is not connected to the garage door opener BEFORE installing the safety reversing sensor. CAUTION The safety reversing sensor must be connected •...
Page 16
All manuals and user guides at all-guides.com INSTALLING THE BRACKETS Figure 1 Be sure power to the opener is disconnected. Install and align the brackets so the sensors will face DOOR TRACK MOUNT (RIGHT SIDE) each other across the garage door, with the beam no higher than 6"...
Page 17
All manuals and user guides at all-guides.com MOUNTING AND WIRING THE SAFETY SENSORS Figure 4 • Slide a 1/4"-20x1/2" carriage bolt head into the slot on each sensor. Use wing nuts to fasten sensors to Wing Nut brackets, with lenses pointing toward each other across the door.
Page 18
WARNING All manuals and user guides at all-guides.com CAUTION INSTALLATION STEP 11 Fasten the Door Bracket Fiberglass, aluminum or lightweight steel garage doors WILL REQUIRE reinforcement BEFORE installation of Follow instructions which apply to your door type as door bracket. Contact your door manufacturer for illustrated below or on the following page.
Page 19
All manuals and user guides at all-guides.com INSTALLATION STEP 12 Inner Trolley Connect Door Arm to Trolley SECTIONAL DOORS ONLY Outer Trolley • Make sure garage door is fully closed. Pull the emergency release handle to disconnect the outer Clevis Pin trolley from the inner trolley.
Page 20
All manuals and user guides at all-guides.com WARNING ADJUSTMENT STEP 1 Adjust the UP and DOWN Travel Without a properly installed safety reversal system, Limits persons (particularly small children) could be CAUTION SERIOUSLY INJURED or KILLED by a closing garage Limit adjustment settings regulate the points at which door.
Page 21
All manuals and user guides at all-guides.com WARNING ADJUSTMENT STEP 2 Adjust the Force Without a properly installed safety reversal system, persons (particularly small children) could be CAUTION Force adjustment controls are located on the right SERIOUSLY INJURED or KILLED by a closing garage side panel of the motor unit.
Page 22
All manuals and user guides at all-guides.com WARNING ADJUSTMENT STEP 3 Test the Safety Reversal System Without a properly installed safety reversal system, persons (particularly small children) could be CAUTION SERIOUSLY INJURED or KILLED by a closing garage TEST door. •...
Page 23
WARNING All manuals and user guides at all-guides.com OPERATION IMPORTANT SAFETY INSTRUCTIONS WARNING To reduce the risk of SEVERE INJURY or DEATH: 1. READ AND FOLLOW ALL WARNINGS AND 8. NEVER use handle to pull garage door open or closed. INSTRUCTIONS.
Page 24
All manuals and user guides at all-guides.com Using the Wall-Mounted Additional feature when used with the 3-button hand-held remote Door Control To control the opener lights: THE MOTION DETECTING DOOR In addition to operating the door, you CONTROL may program the remote to operate Push the lights.
Page 25
All manuals and user guides at all-guides.com THE REMOTE CONTROL BATTERY CARE OF YOUR OPENER LIMIT AND FORCE ADJUSTMENTS: WARNING Weather conditions may cause some minor changes in door FORCE CONTROLS To prevent possible SERIOUS INJURY or DEATH: operation requiring some •...
Page 26
All manuals and user guides at all-guides.com Having a Problem? (Continued) 6. The garage door opens and closes by itself: 11. The door reverses for no apparent reason and opener lights blink for 5 seconds after • Be sure that all remote control push buttons are reversing: off.
Page 27
All manuals and user guides at all-guides.com PROGRAMMING NOTICE: If this Security ✚ ® garage door opener is operated with a non-rolling code transmitter, the technical measure in the receiver of the garage door opener, which provides security against code-theft devices, will be circumvented.
Page 28
All manuals and user guides at all-guides.com To Add, or Reprogram or Change a Keyless Entry PIN NOTE: Your new Keyless Entry must be programmed to operate your garage door opener. USING THE “LEARN” BUTTON USING THE MOTION DETECTING DOOR CONTROL NOTE: This method requires two people if the 1.
Page 29
All manuals and user guides at all-guides.com REPAIR PARTS Rail Assembly Parts PART DESCRIPTION 4A1008 Master link kit 41A2780 Chain pulley bracket 41A3489 Complete trolley assembly 3707CH 7' (2.1 m) Rail assembly 3708CH 8' (2.4 m) Rail assembly 3710CH 10' (3 m) Rail assembly 41D3484 7' (2.1 m) Chain assembly 41D3483...
Page 30
All manuals and user guides at all-guides.com Motor Unit Assembly Parts (Down) LIMIT SWITCH ASSY. Brown Contact Wire Grey Wire Drive Gear Center Limit (Up) Yellow Contact Contact Wire PART PART DESCRIPTION DESCRIPTION 41C5069 Chassis support bracket assy. kit 41D5563-1 Universal replacement motor &...
Page 31
All manuals and user guides at all-guides.com ACCESSORIES 1702LMC Outside Quick Release: 395LMC Remote Light Control: Required for a garage with NO access Enables homeowner to turn on a lamp, door. Enables homeowner to open television or other appliance from their garage door manually from outside by car with their garage door opener remote disengaging trolley.
Page 32
LIFETIME MOTOR LIMITED WARRANTY The Chamberlain Group, Inc. (“Seller”) warrants to the first retail purchaser of this product, for the residence in which this product is originally installed, that it is free from defect in materials and/or workmanship for a period of five years from the date of purchase and that the motor is free from defect in materials and/or workmanship for the lifetime of the product.
Page 33
All manuals and user guides at all-guides.com The Chamberlain Group, Inc. 845 Larch Avenue Elmhurst, Illinois 60126-1196 www.liftmaster.com ® OUVRE-PORTE DE GARAGE Modèle 3595C 3/4 HP Pour résidences seulement Installer UNIQUEMENT sur des portes articulées CET ACTIONNEUR EST DESTINÉ UNIQUEMENT À L’UTILISATION AVEC DES RAILS EN I.
Page 34
All manuals and user guides at all-guides.com TABLE DES MATIÈRES Introduction Réglages 20-22 Revue des symboles de sécurité et des mots Réglage des courses ............20 de signalement ..............2 Réglage de la force ............21 Préparation de votre porte de garage .........3 Contrôle du système d’inversion de sécurité...
Page 35
All manuals and user guides at all-guides.com Préparation de votre porte de garage AVERTISSEMENT Avant de commencer : Pour prévenir d’éventuelles BLESSURES GRAVES OU LA • Désactiver les serrures. MORT : AVERTISSEMENT AVERT • Retirer toute corde raccordée à la porte de garage. •...
Page 36
All manuals and user guides at all-guides.com Planification AVERTISSEMENT Identifier le type et la hauteur de votre porte de garage. Sans système d’inversion de sécurité en bon état de marche, Examiner la région du garage pour noter si l’une des des personnes (particulièrement les petits enfants) pourraient AVERTISSEMENT AVERT...
Page 37
All manuals and user guides at all-guides.com Inventaire de la boîte d’emballage Votre ouvre-porte de garage est emballé dans deux boîtes matériel d’emballage. Les pièces peuvent être coincées qui contiennent le moteur et toutes les pièces illustrées dans la mousse. Les ferrures de montage sont également ci-après.
Page 38
AVERTISSEMENT All manuals and user guides at all-guides.com ATTENTION MONTAGE – 1 OPÉRATION Fixation du rail au moteur Afin d’éviter d’endommager SÉRIEUSEMENT l’ouvre-porte de garage, utiliser UNIQUEMENT les boulons et les fixations Pour éviter les difficultés pendant la pose, ne faire montés sur le dessus de l’ouvre-porte.
Page 39
All manuals and user guides at all-guides.com MONTAGE – 4 OPÉRATION Écrou extérieur Rondelle-frein Tension de la chaîne Écrou intérieur Pour visser l'écrou extérieur • Dévisser l'écrou intérieur de la tige filetée du chariot et éloigner la rondelle. Pour visser l'écrou intérieur •...
Page 40
All manuals and user guides at all-guides.com POSE – 1 OPÉRATION MONTAGE DU Plafond non fini SUPPORT DE Déterminer l’emplacement du support LINTEAU AU de linteau PLANFOND EN OPTION AVERTISSEMENT 2 x 4 Linteau Ligne du centre Pour prévenir d’éventuelles BLESSURES GRAVES ou vertical de la LA MORT : RTISSEMENT...
Page 41
All manuals and user guides at all-guides.com POSE – 2 OPÉRATION Pose du support de linteau Trous de fixation au mur Le support de linteau peut être fixé soit sur le mur, CEILING MOUNT ONLY au-dessus de la porte, soit au plafond. Suivre les Le trou du clou n'est prévu que pour le positionnement instructions qui répondent le mieux aux besoins...
Page 42
All manuals and user guides at all-guides.com POSE – 3 OPÉRATION Fixation du rail sur le support Linteau de linteau Support de linteau • Positionner l'ouvre-porte de garage sur le plancher, juste Support de sous le support de linteau. Utiliser une des boîtes la poulie d'emballage pour le protéger.
Page 43
All manuals and user guides at all-guides.com AVERTISSEMENT POSE – 5 OPÉRATION Accrochage de l’ouvre-porte Pour éviter d’éventuelles BLESSURES GRAVES par suite de la chute d’un ouvre-porte de garage, fixer l’ouvre-porte AVERTISSEMENT AVERT Les illustrations représentent trois poses types. La pose SOLIDEMENT aux solives du garage.
Page 44
AVERTISSEMENT AVERTISSEMENT All manuals and user guides at all-guides.com ATTENTION AVERTISSEMENT POSE – 6 OPÉRATION Pose de la commande de porte Pour prévenir d’éventuelles BLESSURES GRAVES ou LA MORT par suite d’électrocution : Poser la commande murale dans un endroit où on pourra la •...
Page 45
AVERTISSEMENT All manuals and user guides at all-guides.com ATTENTION POSE – 7 OPÉRATION Pose des l’ampoule Pour éviter toute SURCHAUFFE éventuelle du panneau d’éclairage : • Appuyer sur les languettes de dégagement des deux • NE PAS utiliser d’ampoules à col court ou de forme côtés du diffuseur.
Page 46
AVERTISSEMENT All manuals and user guides at all-guides.com AVERTISSEMENT AVERTISSEMENT POSE – 9 OPÉRATION Exigences électriques Pour prévenir d’éventuelles BLESSURES GRAVES ou la MORT par suite d’électrocution ou d’un incendie : ATTENTION AVERTISSEMENT • S’assurer que l’ouvre-porte est hors tension et couper le Pour éviter les difficultés pendant la pose, ne pas faire courant au circuit AVANT de retirer le couvercle pour fonctionner l’ouvre-porte pour le moment.
Page 47
All manuals and user guides at all-guides.com AVERTISSEMENT POSE – 10 OPÉRATION Pose du Système Protector ® • S’assurer que l’ouvre-porte de garage est hors tension AVANT de poser le détecteur inverseur de sécurité. AVERTISSEMENT AVERT Les détecteurs inverseurs de sécurité doivent être bien •...
Page 48
All manuals and user guides at all-guides.com POSE DES SUPPORTS Figure 1 MONTAGE SUR GUIDES DE PORTE (côté droit) S’assurer que l’ouvre-porte est hors tension. Poser et aligner les supports de manière à ce que les détecteurs se fassent face l’un l’autre de part et d’autre de Guide la porte du garage, le faisceau n’étant pas à...
Page 49
All manuals and user guides at all-guides.com MONTAGE ET CÂBLAGE DES Figure 4 DÉTECTEURS INVERSEURS Écrou à oreilles • Faire glisser un boulon à tête bombée et collet carré de 1/4 po-20 x 1/2 po dans la fente de chaque détecteur. Utiliser des écrous à...
Page 50
AVERTISSEMENT All manuals and user guides at all-guides.com ATTENTION POSE – 11 OPÉRATION Fixation du support de porte Les portes de garage en fibre de verre, en aluminium ou en acier léger ont BESOIN d’être renforcées AVANT la fixation du Suivre les instructions qui correspondent au type de porte, support de porte.
Page 51
All manuals and user guides at all-guides.com POSE – 12 OPÉRATION Chariot intérieur Fixation de la biellette au chariot PORTE ARTICULÉE SEULEMENT Chariot extérieur • S'assurer que la porte du garage est complètement fermée. Tirer la poignée de déclenchement d’urgence Axe de chape de pour détacher le chariot extérieur du chariot intérieur.
Page 52
All manuals and user guides at all-guides.com RÉGLAGES – 1 OPÉRATION AVERTISSEMENT Réglage des courses d’ouverture Sans un système d’inversion de sécurité bien installé, des et de fermeture AVERTISSEMENT AVERT personnes (plus particulièrement les petits enfants) pourraient être GRIÈVEMENT BLESSÉES ou TUÉES par une porte de Le réglage de ces courses fixe les points où...
Page 53
All manuals and user guides at all-guides.com AVERTISSEMENT RÉGLAGES – 2 OPÉRATION Réglage de la force Sans un système d’inversion de sécurité bien installé, des personnes (plus particulièrement les petits enfants) pourraient AVERTISSEMENT AVERT Les commandes de réglage de la force sont situées sur le être GRIÈVEMENT BLESSÉES ou TUÉES par une porte de panneau droit du moteur.
Page 54
All manuals and user guides at all-guides.com AVERTISSEMENT RÉGLAGES – 3 OPÉRATION Essai du système d’inversion de Sans un système d’inversion de sécurité bien installé, des sécurité personnes (plus particulièrement les petits enfants) pourraient AVERTISSEMENT AVERT être GRIÈVEMENT BLESSÉES ou TUÉES par une porte de garage qui se referme.
Page 55
All manuals and user guides at all-guides.com AVERTISSEMENT FONCTIONNEMENT IMPORTANTES CONSIGNES DE SÉCURITÉ AVERTISSEMENT AVERTISSEMENT Pour réduire le risque de BLESSURES GRAVES ou DE MORT : 1. LIRE ET SUIVRE TOUS LES AVERTISSEMENTS ET 8. Ne JAMAIS utiliser la poignée pour ouvrir ou fermer la porte. INSTRUCTIONS.
Page 56
All manuals and user guides at all-guides.com Utilisation de la commande de porte à Fonctions supplémentaires lors de l’utilisation avec la télécommande à trois boutons montage mural Commande de l'éclairage de l'ouvre-porte : COMMANDE DE PORTE MURALE AVEC Vous pouvez programmer la télécommande DÉTECTEUR DE MOUVEMENT de manière à...
Page 57
All manuals and user guides at all-guides.com LA PILE DE LA TÉLÉCOMMANDE ENTRETIEN DE L’OUVRE-PORTE DE GARAGE AVERTISSEMENT RÉGLAGES DE COURSE ET DE FORCE : Pour prévenir d’éventuelles BLESSURES GRAVES ou la MORT : Les conditions climatiques risquent COMMANDES DE FORCE •...
Page 58
All manuals and user guides at all-guides.com • Dégager toute accumulation de glace ou de neige pouvant Défauts de fonctionnement (suite) se trouver sur le seuil en contact avec la porte. 4. Portée insuffisante de la télécommande : • Se reporter à la 2 opération des réglages.
Page 59
All manuals and user guides at all-guides.com PROGRAMMATION REMARQUE : Si cet ouvre-porte de garage Security ✚ ® est utilisé avec une télécommande émettrice à code fixe, le dispositif technique que contient le récepteur de l’ouvre-porte et qui procure une protection contre les vols de code, se trouvera contourné.
Page 60
All manuals and user guides at all-guides.com Pour ajouter, reprogrammer ou modifier un NIP d’entrée sans clé REMARQUE : Votre nouvelle entrée sans clé doit être programmée de manière à faire fonctionner votre ouvre-porte de garage. UTILISATION DU BOUTON « LEARN » UTILISATION DE LA COMMANDE DE PORTE DE DÉTECTION DE MOUVEMENT 1.
Page 61
All manuals and user guides at all-guides.com PIÈCES DE RECHANGE Pièces d’assemblage du rail N° DE RÉF PIÈCE DÉSIGNATION 4A1008 Maillon de raccord 41A2780 Support de poulie de chaîne 41A3489 Chariot complet 3707CH Ensemble rail de 7 pieds (2,1 m) 3708CH Ensemble rail de 8 pieds (2,4 m) 3710CH...
Page 62
All manuals and user guides at all-guides.com Pièces d’assemblage du moteur Contact INTERRUPTEUR DE FIN (fermeture) DE COURSE brun gris Pignon menant Contact de fin Contact de course central (d'ouverture) jaune N° DE N° DE RÉF. PIÈCE DÉSIGNATION RÉF. PIÈCE DÉSIGNATION 41C5069 Ensemble prêt-à-monter de...
Page 63
All manuals and user guides at all-guides.com ACCESSOIRES 1702LMC Détachement rapide d'extérieur : 395LMC Commande d’éclairage : Permet d’allumer une lampe, un téléviseur Nécessaire pour un garage SANS ou un autre appareil à partir de la voiture porte d'accès. Permet au propriétaire avec l’ouvre-porte ou à...
Page 64
GARANTIE LIMITÉE À VIE SUR LE MOTEUR La société Chamberlain Group Inc. (« le Vendeur ») garantit à l’acheteur au détail initial de ce produit dans la résidence duquel ce produit est originalement installé, que le produit est exempt de tout défaut de matière ou vice de fabrication pour une période de 5 ans à...
