PRELIMINARY CHECKINGS
Before installing AZIMUT, please check the following basic
points:
• The door must be suitable to be automated (check the door
operation manual and directions). The door structure itself
must be stout and appropriate to be automated.
• Fix the engine steadily and using suitable material.
• If necessary, make the structural calculation and enclose to
the technical specification paper.
• Check the door to be provided with anti-fall system
(independent of the suspension system)
• The door must be functional and safe.
• The door must open and close easily without any friction.
All manuals and user guides at all-guides.com
• The door must be properly balanced both before and after its
• It is advisable to install the geared motor in the centre of the
• In case of counterbalanced door, check that the minimum

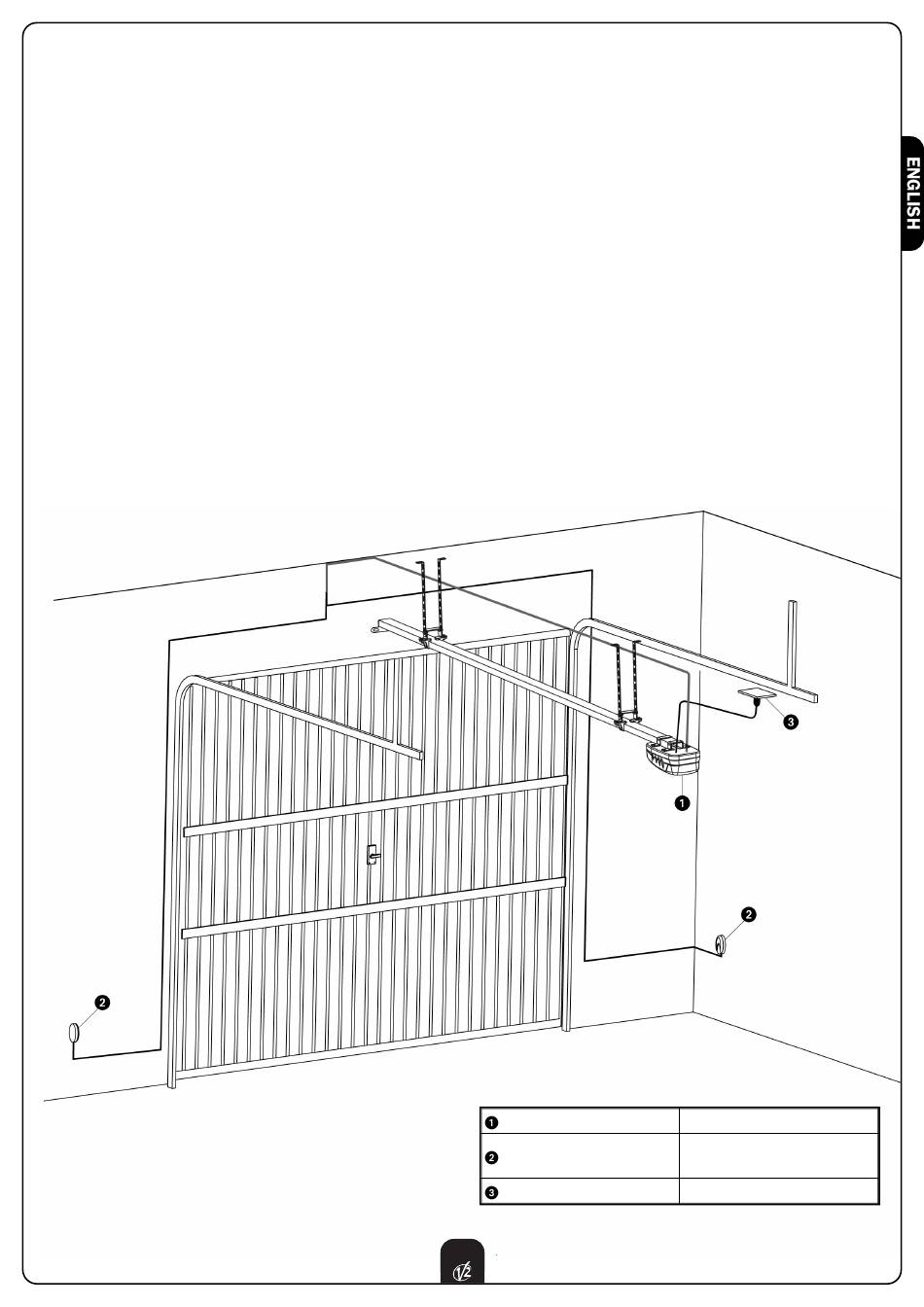

INSTALLATION LAYOUT
11
automation: stopping the door in any position, it must not
move (carry out a balance weight adjustment, if necessary).
door; it is permitted to move aside 100 mm to install the
sliding arm accessory J4 (see paragraph 2.7 page 14).
distance between the track and the door must not be under
20 mm.
Actuator AZIMUT
Photocells
Schuco socket
cable con spina 2 x 0.75 mm
cable 4 x 1 mm
2
(RX)
cable 2 x 1 mm
2
(TX)
-
2
