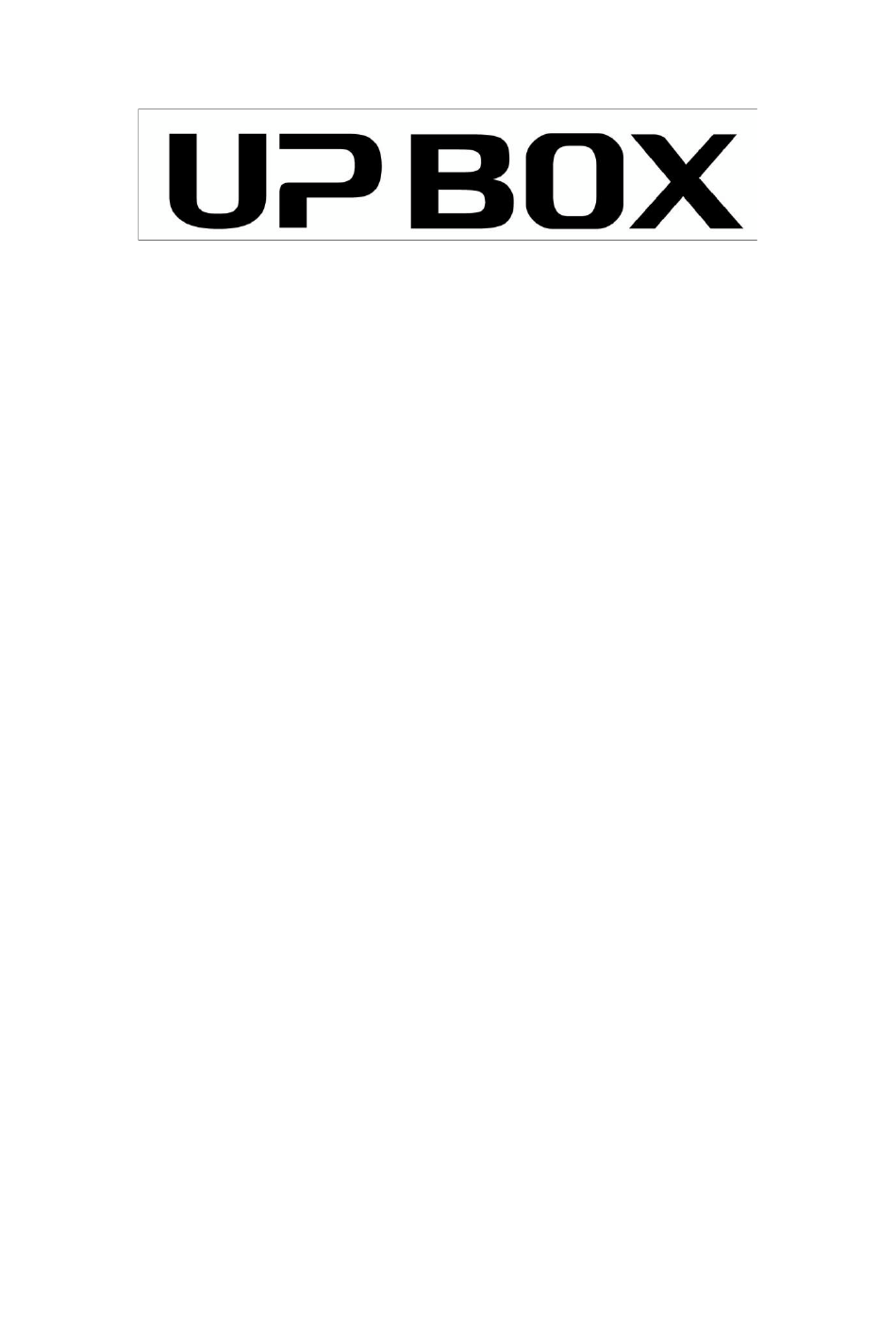

- Page 1 version ： 4.6.23...
- Page 2 Table des Matières Précautions ......................01 Spécification Produit..................02 Présentation de l'imprimante................03 Accessoires ....................... 05 Déballage ......................06 Installation du logiciel UP .................. 07 Initialiser l'imprimante..................08 Calibration de la plateforme : 1.Réglage de la hauteur de buse..............09 2.Réglage des valeurs de compensation ............
- Page 3 USB, en effet, cela résultera en une perturbation du transfert de données et un échec de l'impression. Le câble peut être débranché à la fin du transfert de données. 8. La température de l'environnement de fonctionnement de la UP BOX doit être compris entre 15oC et 30oC et l'humidité relative doit être comprise entre 20%-50%.
- Page 4 Specifications de la UP BOX Technologie d'impression MEM (Melted Extrusion Manufacturing) Volume de construction 255 x 205 x 205mm (L x l x h) 10" x 8" x 8" Tête d'extrusion Simple, Modulaire pour un remplacement facile. Resolution du Z 0.1/0.15/0.20 /0.25 /0.30...
- Page 5 Présentation l'imprimante Element supérieur Porte Support bobine frontale Bobine de filament Couvercle magnétique Bouton Pause/Stop Bouton Extruder/Retirer Bouton Initialiser Interface USB Alimentation ON/OFF...
- Page 6 Axe X Axe Z Axe Y Filtre à air Barre de LED Plateforme d'impression Tête d 'impression Réceptacle de tête d'impression Aimants Buse Sonde de nivellement Plaque automatique métallique...
- Page 7 Accessories Cable USB Cordon Alimentation Spatule d'alimentation clé hexagonale Filament ABS Clé pour buse Pince 2.5mm Buse CD-ROM Plaque perforée *If anything is missing please contact your local distributor or support@pp3dp.com...
- Page 8 Retirer les colliers de serrage Retirer les colliers de serrage en nylon des tiges lisses horizontales. Installer la plaque perforée...
- Page 9 Installer le Filament Pour installer la bobine de filament, ouvrez le couvercle magnétique et insérez le filament dans le tube de guidage du support bobine. Poussez le filament dans le tube de guidage jusqu'à ce qu'il sorte de l'autre côté, positionnez la bobine sur la tige et couvrez la bobine avec le couvercle magnétique.
- Page 10 Il y a deux méthodes d'initialisation: 1. La UP BOX peut être initialisée en cliquant sur le bouton initialiser présenté ci-dessous. 2. Lorsque l'imprimante est au repos, presser longuement sur le bouton "initialiser" déclenchera également une initialisation...
- Page 11 (ex : plateforme légèrement inclinée) et cela peut causer un décollement de vos impressions (warping) ou même un échec complet.. La UP BOX possède une fonction de calibration automatique de la plateforme ainsi qu'une détection automatique de la hauteur de buse. En utilisant ces deux fonctions, le processus de calibration sera achevé...
- Page 12 Détection automatique de la hauteur de buse Sélectionnez "Nozzle Height Detect" dans le menu "impression 3D". La tête d'impression va alors se déplacer vers le module de détection de hauteur de buse. Elle va alors toucher et presser la partie métallique sur le module pour effectuer sa mesure.
- Page 13 . Il y a trois vis sous la plateforme de votre UP BOX. Deux vis à l'avant et une troisième sous la plateforme à l'arrière. Ces vis peuvent être serrées et desserrées pour ajuster votre plateforme.
- Page 14 Prepare for Printing Make sure printer switched on and connec ted to computer. Select Main Menu - 3D Print - Maintainance. Click New Spool and choose ABS and input filament weight. Click "Extrude" button, the print head will start to heat up, within 5 minutes its temperature will reach 260 C, then printer will...
- Page 15 Initialize Reprint last job Printer LED Light Bar Different color and behavoiur of the "UP BOX" light bar indicate different status of printer. Breathing: Printer switched on, uninitialized. Breathing: Printer initialized, ready for printing. Single Letter Rotation: Data transfer and printing in progress.
- Page 16 Software Interface Quick functional Buttons Main Menu Status Bar Display the statsu of printer and Print Plate software. -left mouse click and hold, moving mouse to adjust camera angle. -Right mouse click and hold, moving mouse to move print plate. -Mouse wheel could scale the print plate view.
- Page 17 Loading a Model Click "Open" Choose your model. Loaded model on the print plate. Click "Print" to open the pr in t pr evi ew window .
- Page 18 Click "OK" to start printing. T he prog r am will proc ess the model and then transfer the data to the printer. A f t er s endi n g t h e d a t a, t he program will suggest the amount of material and time needed for the model in a pop up window.
- Page 19 Printing Progress Printing progress is shown in the LED progress bar on top of the UP BOX letters. The first two red LED represent printing of raft, the others represent the rest of the model. Pause of Print Job During printing, the machine could be paused through maintainence interface.
- Page 20 Pause of Print Job without using Software During printing when the front door is opened, printing will be paused automatically. After closing the front door the print job will not be resumed until the user double click the pause button. Pause/Stop Button Alternatively, during Printing, double click the Extrude/Withdraw Button...
- Page 21 Moving Model Click the model to select. Click Move button. Select distance value to in the drop dwon menu. Choose an axial direction to move the model. Drag model with mouse on XY-plane: Press and hold Ctrl key, mouse left click and hold the target model, now the model could be dragged around on XY-plane.
- Page 22 Rotate Model Click to select model. Click Rotate button. Choose angle of rotation in the drop dwon menu. Choose an axial direction to rotation the model. Scale Model Click to select model. Click Scale button. Choose the scaling value in the drop down menu.
- Page 23 Duplicate Model Click to select model. After selection, right click to open menu I n the inser t copy m e n u , s e l e c t t h e number of copy for duplication. Right click menu also contain unload function. Either choose a specific model to unload or unload all.
- Page 24 Printing Parameters 1. Z-resolution: Thickness of each printed layer, the lower the value, the more details will be generated. 2. Part: Angle: Determine the range of dense support generation. Surface: Choose the how many layers will be made for bottom of the model. 3.
- Page 25 Annotation for printing parameters Dense (support) Infill Dense (support) Support Surface Dense (support) Print Platform Raft Suppot Range: Support Range: < 30 < 80 Dense: Solid support structure ensure the surface being supported retain its shape and surface finish. Infill: The inner structure of the printed object, the density of infill could be adjusted.
- Page 26 Repair Model UP software contains model repair function, could be used to fix simple defects. I f the model c on tains defective sur faces. The sofware will highlight the part with red. A f t e r s e l e c t i n g t h e model, choose Edit - Fix to repair the model.
- Page 27 Calibration for the Correct Dimension If prints are too big or too small or skewed, user could re-calibrate the printer to print in correct dimension. The method is to print a calibration model, measure its dimension and feedback to the software. L o a d a n d p r i n t t h e calibration model: C : \ P ro g r a m F i l e s \ U P \...
- Page 28 Printing Techniques 1. Ensure accurate nozzle height. Nozzle height value too low will cause warping, too high will crash nozzle to platform causing damage and clogging. It is possible to manually fine tune nozzle height value at "maintenance" and "print preview" panels. User could try to adjust the nozzle height value plus or minus 0.1 - 0.2mm base on previous results.
- Page 29 Maintenance Remove the nozzle. After a long time of printing, the nozzle could become very dirty or even clogged. We can replace it with a new one while the old one could be cleaned and reused. Nozzle Wrench 1. Use "Withdraw" function in the maintenance panel, nozzle will heat up to printing temperature.
- Page 30 Moving the Platform Manually Under certain circumstances, users may need to move the platform up and down manually. This could done by turning the Z-axis lead screw with a slot screw drive. We do not recommend pressing or lifting the platform with brute force, as the platform could be damaged or unleveled.
- Page 31 Fine Manual Calibration 1. Setting nozzle height. 2. Setting compensation values. Open: Menu - 3D Print - Platform Calibrate A. M o vi ng P la tfo r m UP/ DO WN : click/hold the button, platform will move accordingly. B.
- Page 32 Hit the "5" button. Nozzle will go to the center of the platform. Raise the platform until it is just touching the nozzle. Move the paper between the nozzle and platform and see if there is any resistance. Platform too high, nozzle Just right, could feel Platform too low, no is pinning paper onto...
- Page 33 Platform Values at 9 calibration points (hypothetical): When obtained the platform height value of all 9 positions. Find out the 1: 208 2: 208.5 3: 208.7 smallest value among the 9 calibration points. A s y ou can see in this case , the calibration point 1 has the smallest 4: 208.6 5: 208.9...
- Page 34 F o r e x a m p l e , s e t t i n g t h e compensation value for calibration point No.3. Assume the "platform heigh t" is 208.7 and the "no zzle height" is 208, the compensation value should be set to 0.7.
- Page 35 Please use UP Fila filament. 4. For some model, if PLA consistently cause problem, switch to ABS. 1. Install the printer driver correctly. Cannot detect the printer 2. Check for defective USB cable. 3. Restart printer and Computer Contact technical support: Others support@tiertime.net...
