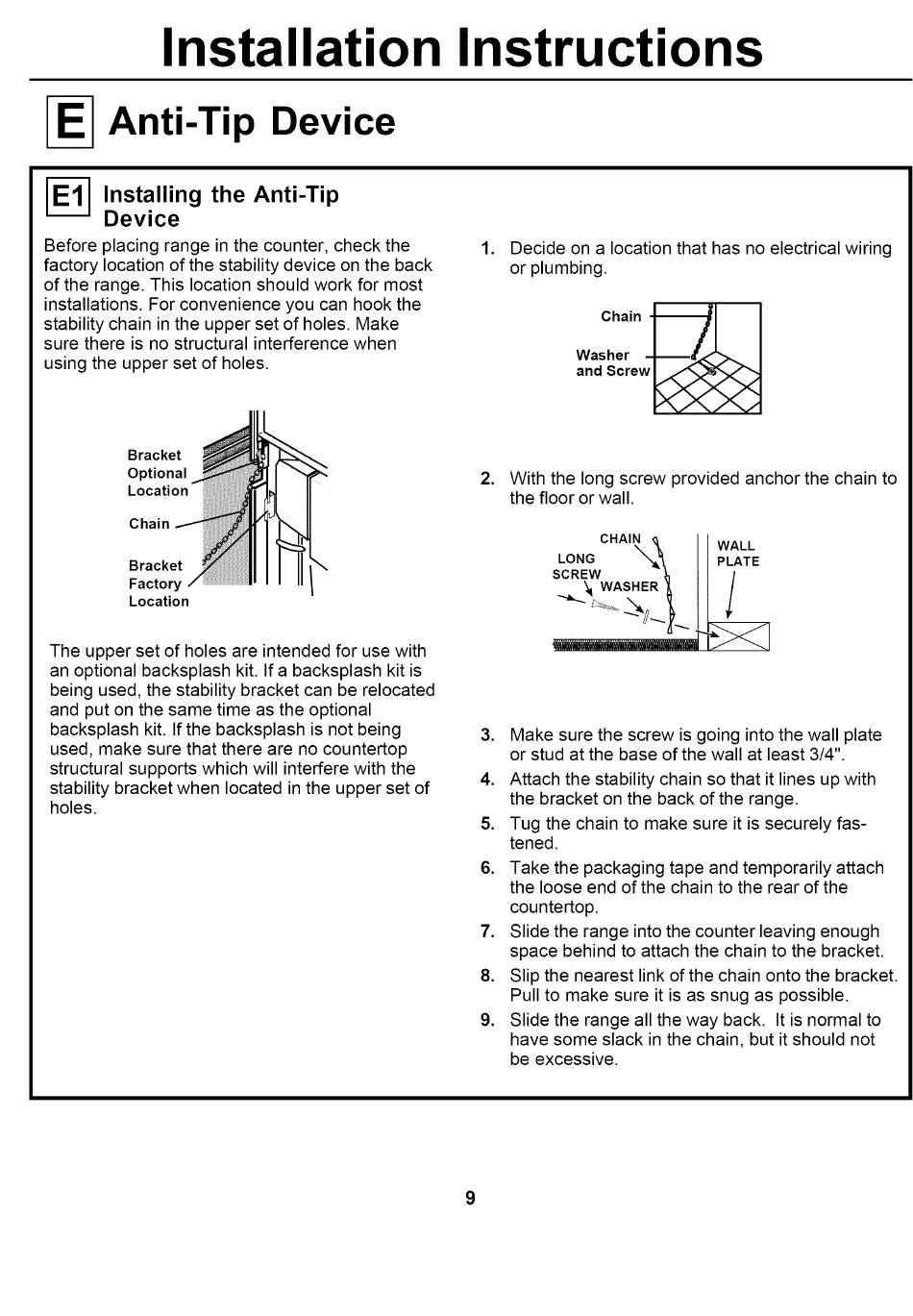

Installation Instructions
Anti-Tip Device
-1-1 Installing the Anti-Tip
Device
Before
placing
range in the counter,
check the
factory location
of the stability
device on the back
of the range. This location
should work for most
installations.
For convenience
you can hook the
stability chain in the upper set of holes. Make
sure there is no structural
interference
when
using the upper set of holes.
=
Decide on a location
that has no electrical
wiring
or plumbing.
Chain
Washer
Bracket
Optional
Chain
Bracket
Factory
Location
The upper set of holes are intended
for use with
an optional
backsplash
kit. If a backsplash
kit is
being used, the stability bracket
can be relocated
and put on the same time as the optional
backsplash
kit. If the backsplash
is not being
used, make sure that there are no countertop
structural
supports
which will interfere with the
stability
bracket when located in the upper set of
holes.
=
With the long screw provided
anchor the chain to
the floor or wall.
CHAIN
,_
__
LONG
"_
SCRE_Ww ASHER _
3.
Make sure the screw is going into the wall plate
or stud at the base of the wall at least 3/4".
4.
Attach the stability chain so that it lines up with
the bracket
on the back of the range.
5.
Tug the chain to make sure it is securely
fas-
tened.
6.
Take the packaging
tape and temporarily
attach
the loose end of the chain to the rear of the
countertop.
7.
Slide the range into the counter
leaving enough
space behind to attach the chain to the bracket.
8.
Slip the nearest
link of the chain onto the bracket.
Pull to make sure it is as snug as possible.
9.
Slide the range all the way back.
It is normal to
have some slack in the chain, but it should not
be excessive.
9
