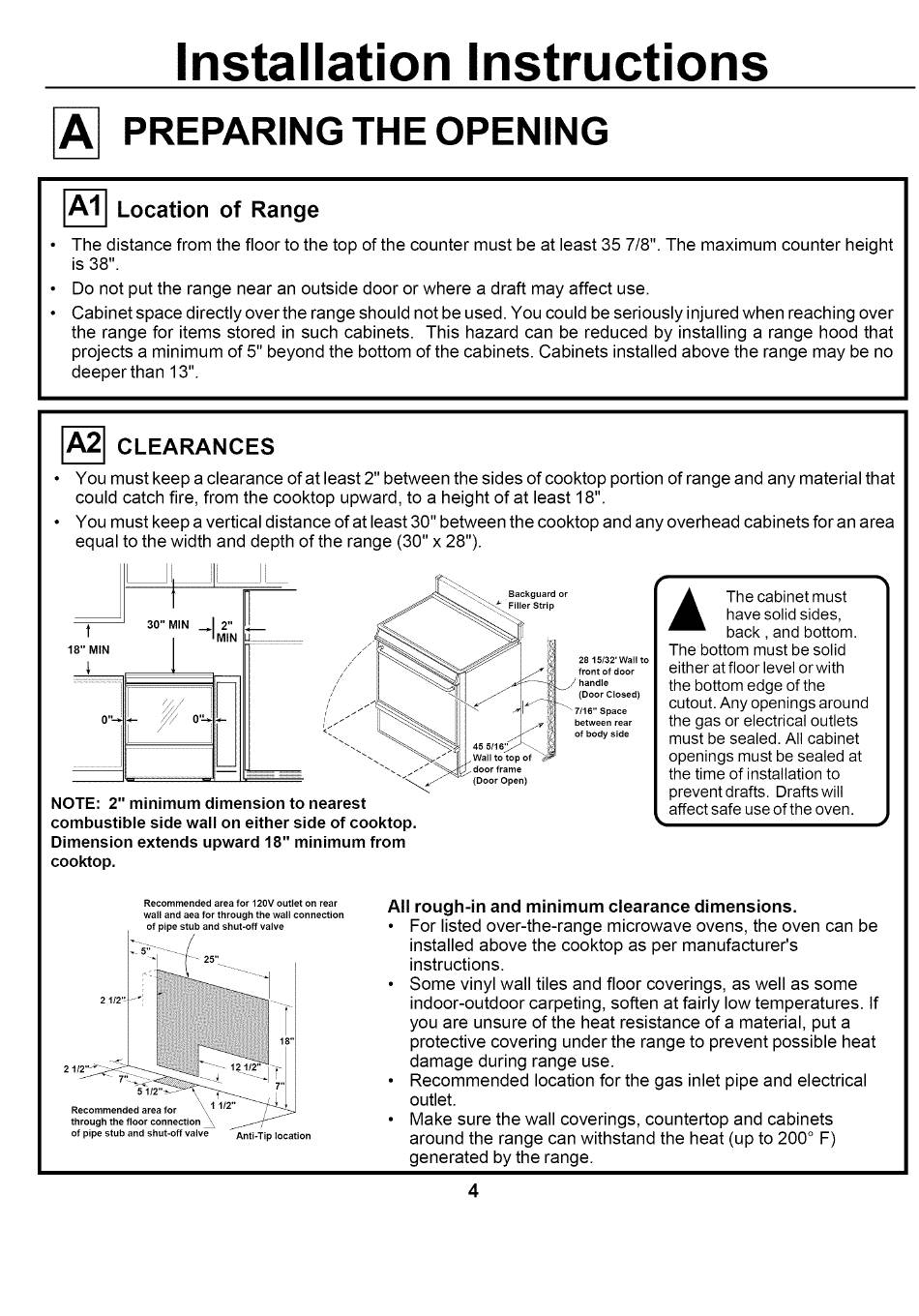

Installation Instructions
PREPARING THE OPENING
Location
of Range
The distance
from the floor to the top of the counter
must be at least 35 7/8". The maximum
counter height
is 38".
Do not put the range near an outside
door or where a draft may affect use.
Cabinet space directly over the range should not be used. You could be seriously
injured when reaching
over
the range for items stored in such cabinets.
This hazard
can be reduced
by installing
a range hood that
projects
a minimum
of 5" beyond the bottom of the cabinets.
Cabinets
installed
above the range may be no
deeper than 13".
CLEARANCES
•
You must keep a clearance
of at least 2" between the sides of cooktop portion of range and any material that
could catch fire, from the cooktop
upward, to a height of at least 18".
•
You must keep a vertical distance
of at least 30" between the cooktop
and any overhead
cabinets
for an area
equal to the width and depth of the range (30" x 28").
t
18" MIN
l
///
//
//
/1
/
NOTE: 2" minimum dimension to nearest
combustible
side wall on either side of cooktop.
Dimension extends upward 18" minimum from
cooktop.
Backguard or
Filler Strip
door frame
(Door Open)
28 15/32'
Wall
to
front
of door
(Door Closed)
between rear
of body side
r
A
The cabinet must
have solid sides,
back, and bottom.
The bottom must be solid
either at floor level or with
the bottom edge of the
cutout. Any openings around
the gas or electrical outlets
must be sealed. All cabinet
openings must be sealed at
the time of installation to
prevent drafts. Drafts will
affect safe use of the oven.
2 1/2 '_'
Recommended
area for 120V outlet on rear
wall and aea for through the wail connection
of pipe stub and shut-off
valve
5 l/2"_-
Recommended
area for
through
the floor
connection
of pipe stub and shut-off
valve
Anti-Tip location
All rough-in
and minimum
clearance
dimensions.
•
For listed over-the-range
microwave
ovens, the oven can be
installed above the cooktop as per manufacturer's
instructions.
•
Some vinyl wall tiles and floor coverings,
as well as some
indoor-outdoor
carpeting,
soften at fairly low temperatures.
If
you are unsure
of the heat resistance
of a material,
put a
protective
covering
under the range to prevent possible
heat
damage
during range use.
•
Recommended
location for the gas inlet pipe and electrical
outlet.
•
Make sure the wall coverings,
countertop
and cabinets
around the range can withstand
the heat (up to 200 ° F)
generated
by the range.
4
