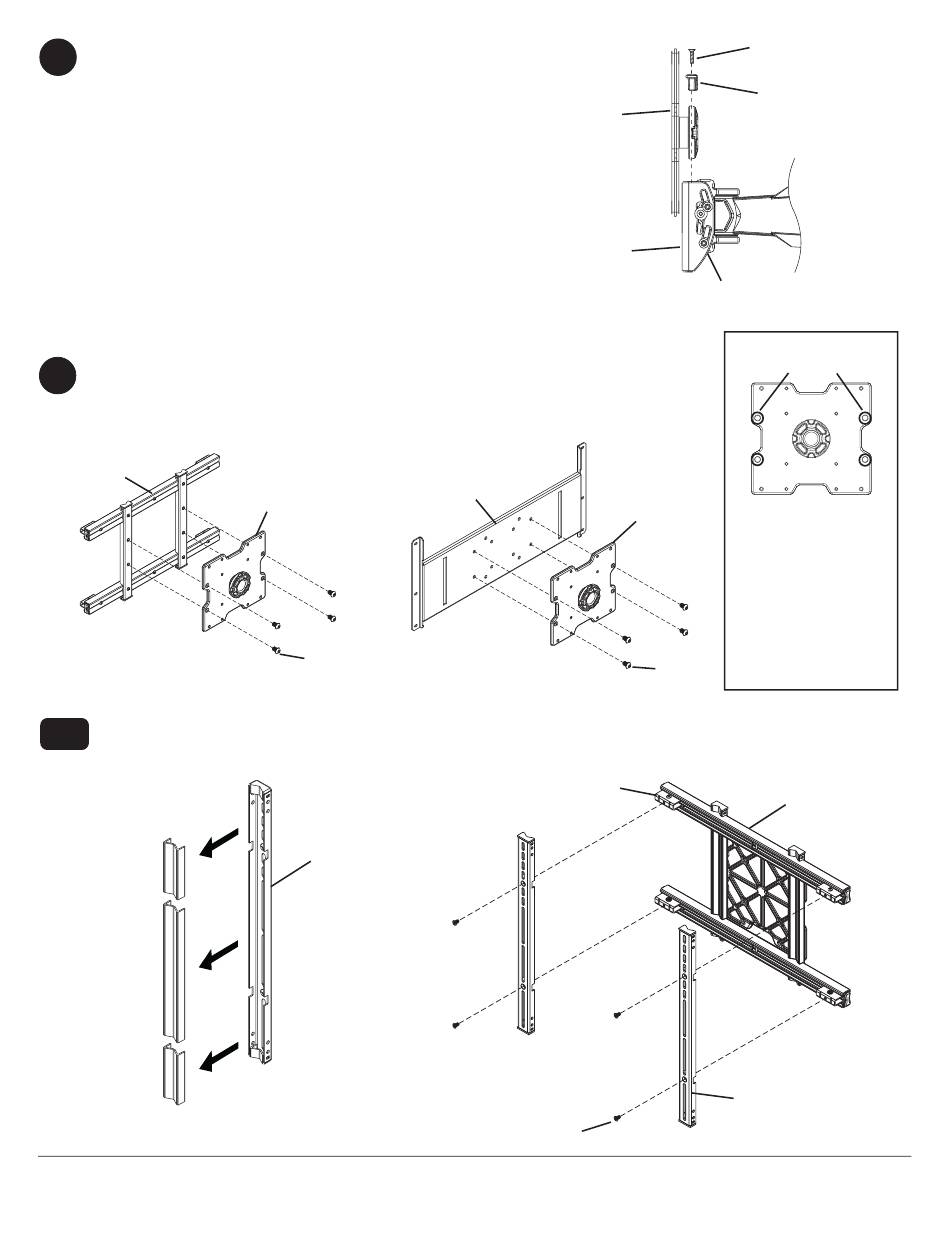

Remove two M5 x 20 mm screws from the rollbrake. Lift
2
adapter plate out from tilt bracket as shown.
NOTE: M5 X 25 mm screw may need to be loosened a
few turns to allow adapter bracket to be removed using
4 mm allen wrench (N).
Installing Universal Adapter Bracket to Screen
NOTE: If your screen has a VESA hole pattern skip to page 12.
3
Using the hole pattern shown in detail 1, attach the adapter plate to universal adapter
bracket (B) or dedicated adapter plate with four M10 x 15 mm screws (G) as shown.
Tighten screws using 6 mm allen wrench (K).
B
3-1
Remove bracket covers from screen brackets (C) as shown in fig. 3.1. Fasten two screen brackets (C) to the
gliders on universal adapter bracket (B)
BRACKET
COVER
All manuals and user guides at all-guides.com
ADAPTER PLATE
G
using four M5 x 10 mm flat head phillips screws (H) as shown in fig. 3.1.1.
C
fig. 3.1
ADAPTER
PLATE
BRACKET
DEDICATED
ADAPTER PLATE
ADAPTER PLATE
GLIDERS
H
8 of 42
M5 X 20 MM
SCREW
ROLL BRAKE
A
TILT
M5 X 25 MM
SCREW
HOLE PATTERN
FOR USE WITH
UNIVERSAL
ADAPTER
BRACKET OR
DEDICATED
ADAPTER PLATE
G
DETAIL 1
C
ISSUED: 03-08-07 SHEET #: 095-9271-2 10-26-09
LARGE
HOLES
B
fig. 3.1.1
