PEERLESS SmartMount RTFPA45 Installation Et Montage page 7

1-1

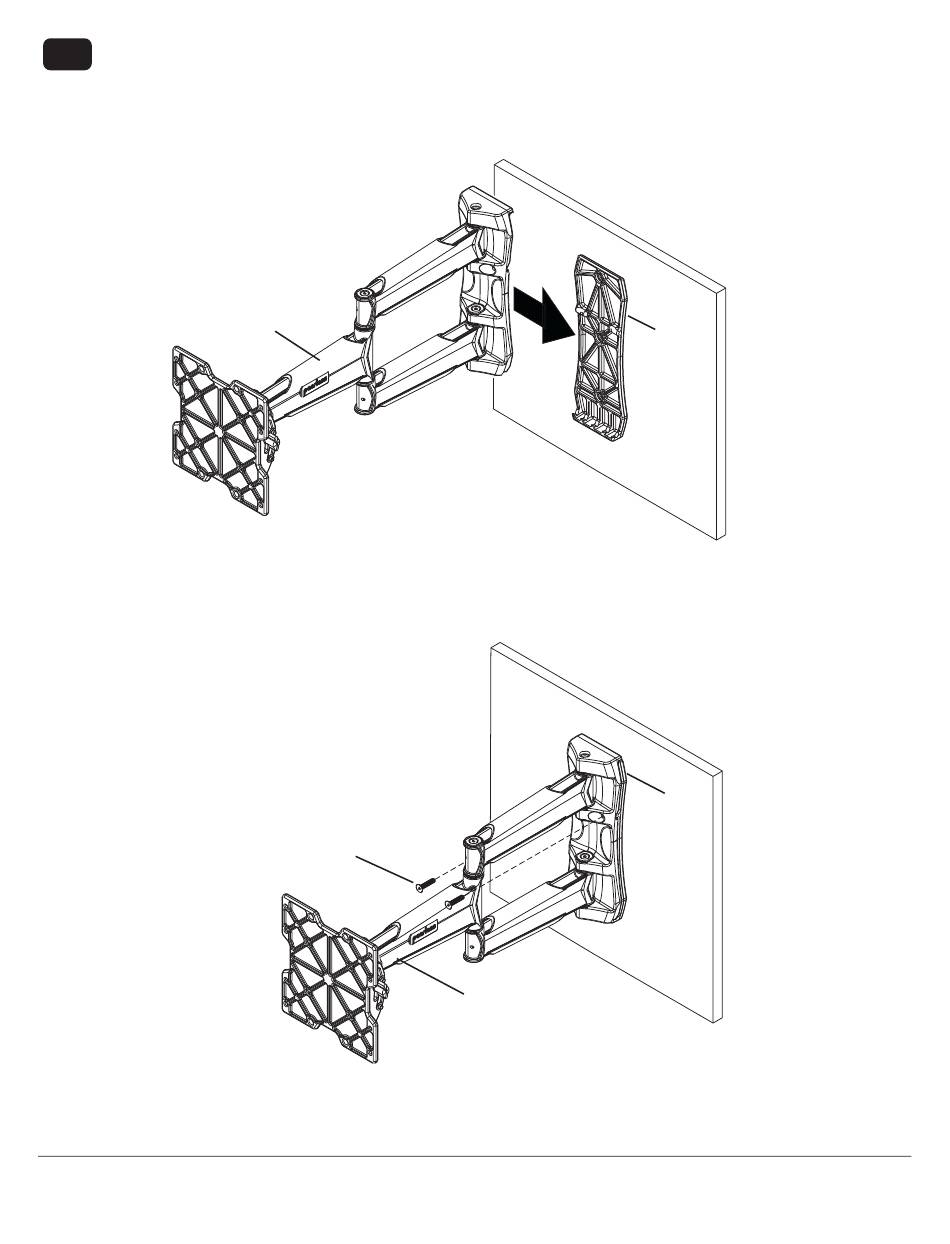

Support arm during install. Slide arm (A) onto wall plate (D) as shown in figure 1.4. Using 3/16" allen wrench (L),
secure arm (A) onto wall plate (D) with two 5/16-18 x 1.75" flat head socket screws (I) as shown in fig. 1.5.
All manuals and user guides at all-guides.com
A
I
A
7 of 42
D
fig. 1.4
D
fig. 1.5
ISSUED: 03-08-07 SHEET #: 095-9271-2 10-26-09
