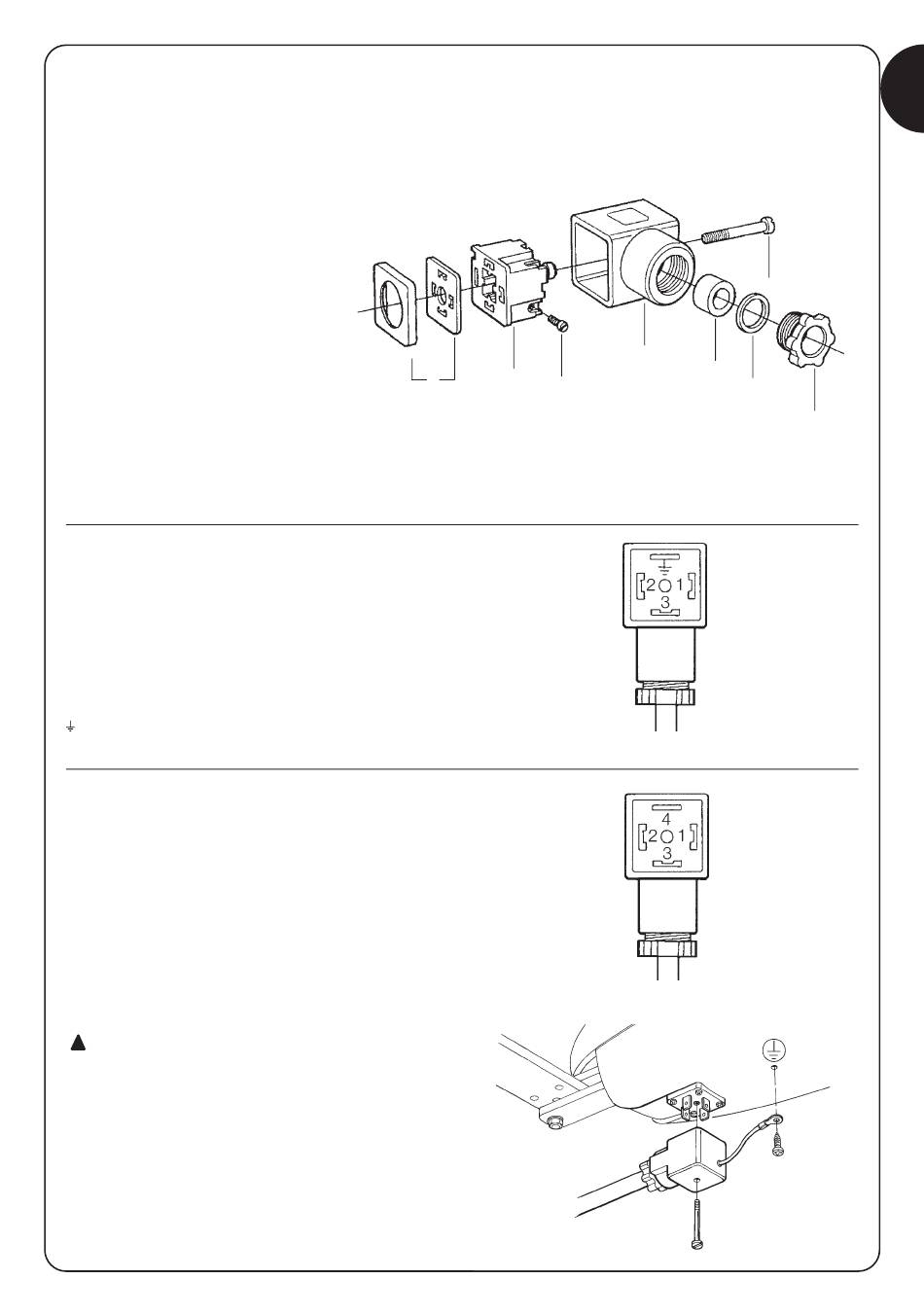

2.7) Electrical connections:
Connecting the connector
The connector is supplied assembled and is located in the lower part
of the gear motor (see item 48 of the spare parts list inside the cover).
This is used to connect the electrical control unit.
Remove the screw (8) and use a screwdriver to remove the other parts
(as shown in the figure), including the screws (3).
1 Seals
2 Contact carriers
3 Clamping screw
4 Protection
5 Cable holder
6 Washer
7 Cable clamp
8 Fixing screw
N.B.: the connector protects to IP65 DIN 40050 only if it is correctly
mounted as shown in the figure.
Motor connections for models:
MB4005 - MB4006
MB4615 - MB5015 - MB5016 – MB5615
Connect the cable wires to the "contact carriers 2" following the
indications shown in the figure..
1 = open
2 = close
3 = Common
= Earth
Motor connections for models:
MB4024 – MB5024
Connect the cable wires to the "contact carriers 2" following the
indications shown in the figure.
1 = Motor +
2 = Motor -
3 = Encoder +
4 = Encoder -
!
Always remember to connect the earth cable according
to current standards (EN 60204 - IEC 64-1 – EN 60335) as
shown in the figure.
