Solar Solution
1
2
DETAIL DESCRIPTION
3
+/- 5°
4
page
www.lumec.com
Installation Instructions
Latch
Tenon
Tenon Penetration
Angles
RPS-S
-5°
4''
-2.5°
4-1/2''
0°
4-7/8''
2.5°
5''
5°
5-1/2''
3/8-16 Bolts

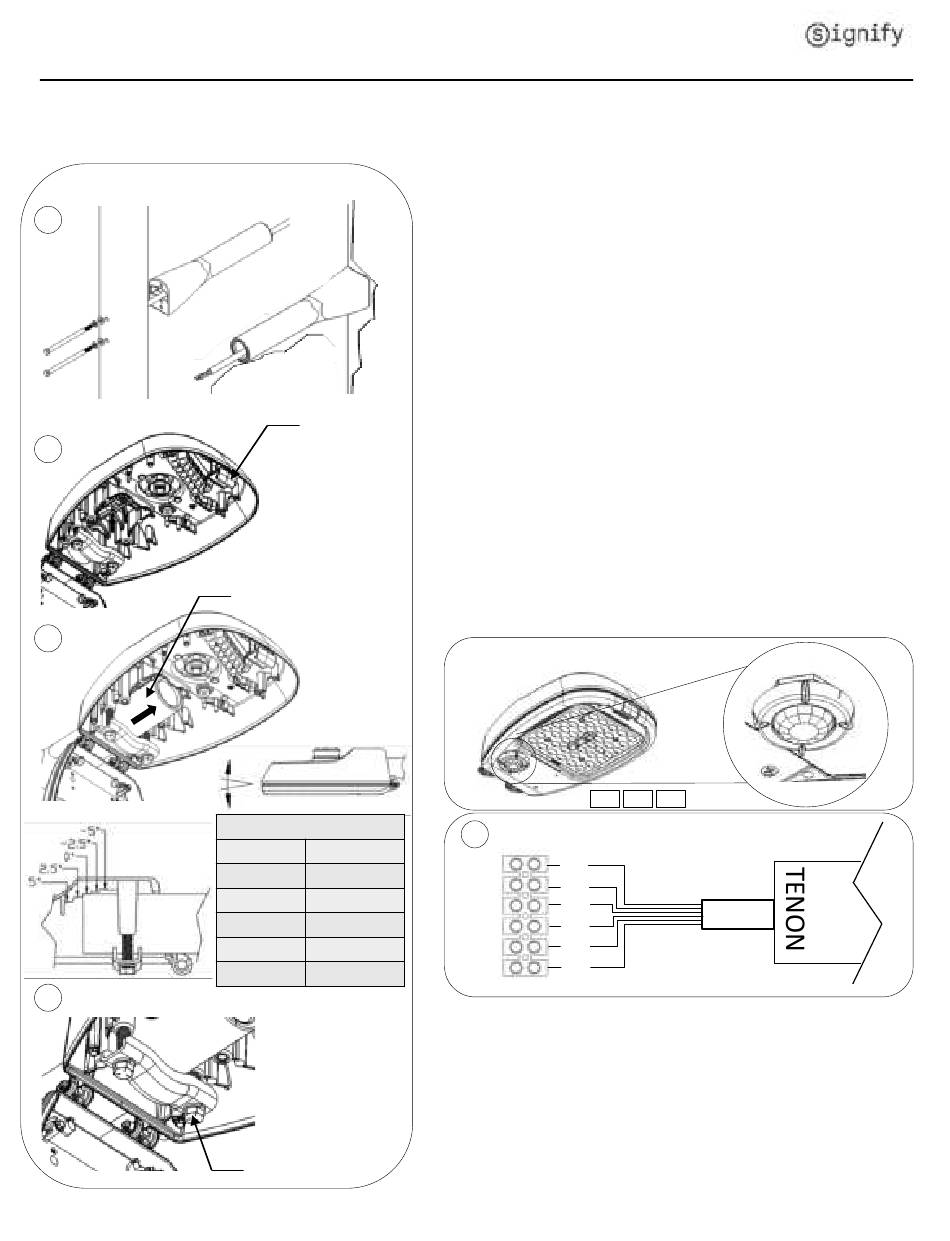

RPS-SOL luminaire Installation
1.
Install the arm on the pole while passing the SOOW cable
through it. Secure the arm with bolts (2) 3/8-16", lock
washers & washers. Tighten the bolts to the specified
torque: 18 ft-lbs.
WARNING: THE ELECTRICAL POWER MUST BE DISCONNECTED
DURING ALL INSTALLATION OR SERVICE WORK. FAILURE TO
FOLLOW THE INSTALLATION DOCUMENTATION OR OPERATING
THIS PRODUCT OTHERWISE THAN FOR ITS INTENDED USE VOIDS
THE WARRANTY.
2.
Pull the latch to release the access door.
3.
Slide the fixture onto the tenon. See table for approximate
penetration. Horizontal angle can be adjusted in 2.5°
steps.
4.
Evenly tighten all 3/8-16 bolts of the bracket. Tighten the
bolts at 11.25 ft-lbs. Number of bolts may vary depending
on fixture size.
5.
Connect the service leads to the terminal block. Tighten
the set-screws between 1.7 and 2 ft-lbs.
6.
Close the access door of the luminaire once the
connections are completed.
Motion Sensor (option)
24V
5
LED+
Red
LED-
Blue
Orange
24V
M+
Black
M-
White
Green
Ground
FCC Part 15 Class A Products FCC Markings
NOTE: This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
CAN ICES-005 (A) / NMB-005 (A)
M-
M+
SOOW
12NCs-Rx
