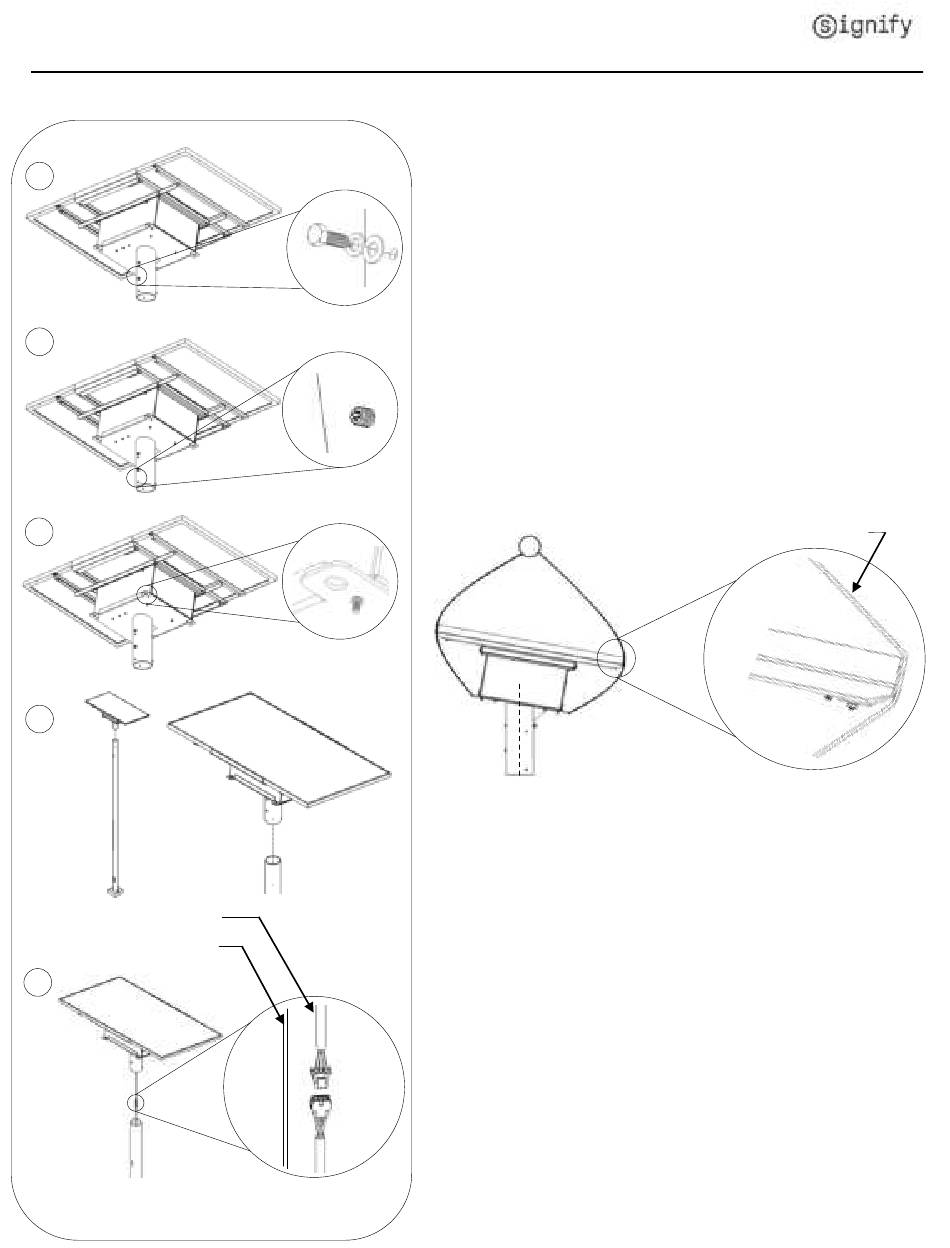

Installation Instructions
Solar System Installation
Remove the 3/8X 1" locking bolt, lock washer & washer to
1.
install the solar system tenon on the pole.
2.
Loosen the set screws (6) 3/8-16, 1/2'', to install the solar
system tenon on the pole.
3.
With the proper equipment, attach the lifting straps to the
(4) eyelets provided.
IMPORTANT: Always adjust the straps so the tenon remains
vertical when lifting to simplify installation on the pole. Make
sure the straps are resting on the solar panel protectors on each
side
0°
IMPORTANT: Secure the system with a tag line in order to
handle the solar system safely and to reduce the chances of
.
swinging
4.
Lift the solar system above the pole without damaging the
solar panel.
5.
Align the solar system on the post and place it smoothly on
the post while completing the SOOW cable connection and
letting the ground wire run to the base of the pole.
12NCs-Rx
Strap
