sigfox MODBUS MASTER - Guide utilisateur / User guide version V2.1.0
1. PRODUCT PRESENTATION
Description:
•
The adeunis® sigfox MODBUS MASTER is a ready-to-use radio transmitter with a MODBUS interface
•
This product meets the needs of users to communicate with one or several MODBUS slaves and transmit their information via a sigfox
network.
•
The product use the Remote Terminal Unit (RTU) Modbus protocol to communicate with the slaves.
•
The frame of the product can contain 5 registers (of 2 bytes) maximum per periodic frame. These registers can be distributed between the
monitored slaves (20 slaves maximum) knowing that for each slave 5 registers can be configured per frame.
The product transmits the data from the slaves periodically through one or several frames (up to 6) with the same or different
•
periods of transmission.
•
The product transmits the data from slave either periodically or in an event-related way based on high or low thresholds.
•
The product is able to read or write in the registers of a slave through the network.
•
The configuration of the transmitter is accessible by the user via a micro-USB port or remotely via the sigfox network, allowing in particular
a choice of modes of transmission, periodicity or triggering thresholds.
•
The sigfox MODBUS MASTER is powered by an external power supply (not included).
•
The product is able to provide and control the power supply for a slave.
•
The product is compliant with the KARE+ service.
Composition of the package
The product is supplied in a cardboard box containing the following items:
top casing, electronic card, casing base plate,
Cable gland, 2 CBLZ 2.2 x 19mm screws, 2 Fischer SX4 plugs

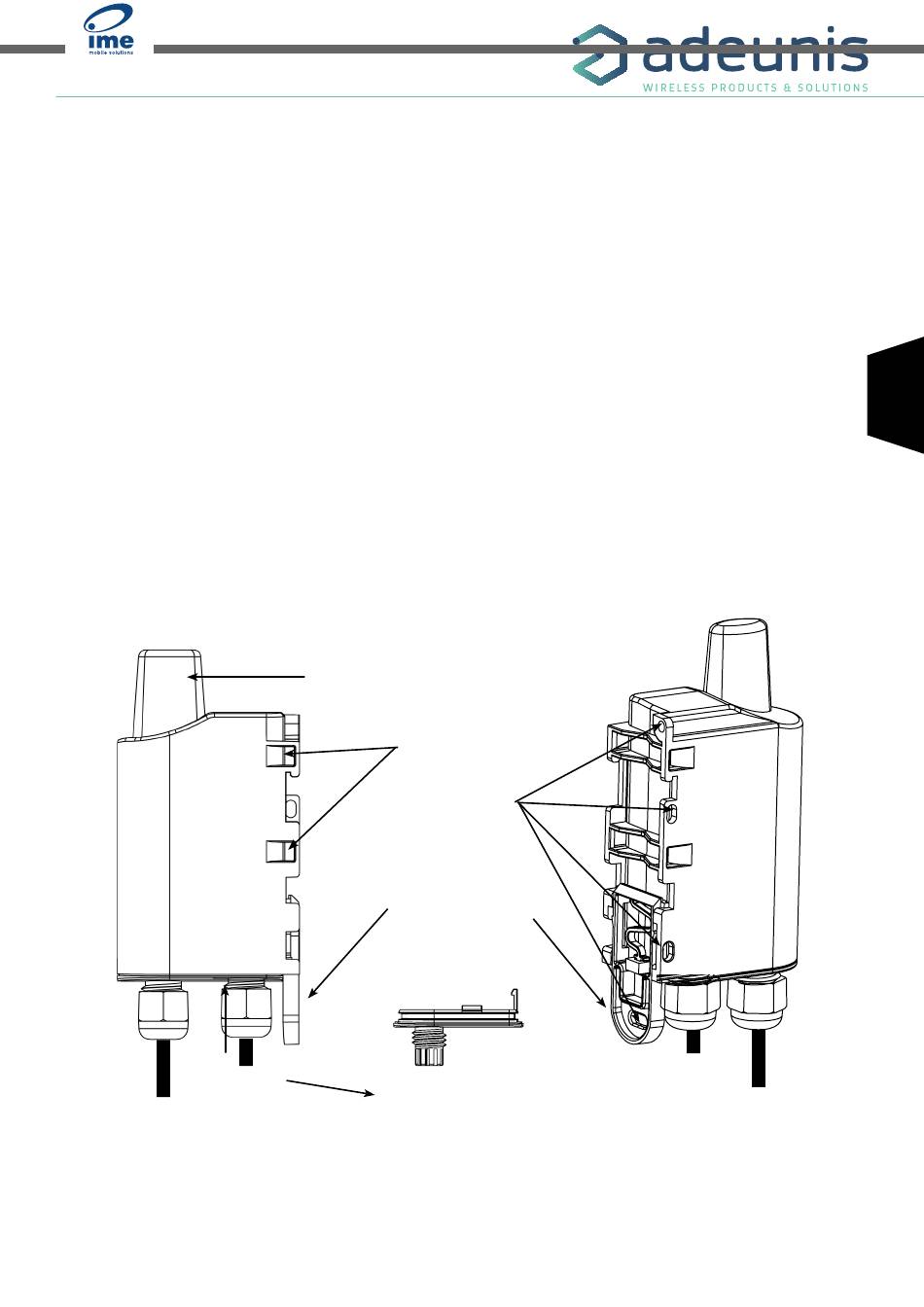

1.1. General description
Casing base
50
50
Antenna
2 holes for passing
collars through
4 fastening holes
Rail-DIN unlocking
lever
Casing base detail
www.ime.de
Cables outlet
packing gland
Page
FR
EN
31
of 43
