11.7 optional blower installation
WARNING
!
•
Ensure the appliance is completely cool before starting installation.
•
To avoid danger of suffocation, keep the packaging bag away from babies and children. Do not use in cribs,
beds, carriages or play pens. This bag is not a toy. Knot before throwing away.
A. Remove the safety barrier by lifting it up and off of the appliance.
B. Remove the door from the appliance by releasing the door latches.
C. It may be necessary to move control module aside during blower installation.
D. Attach the two 1/4" connectors (black and white) from the wire harness to the thermodisc.
E. Attach the two 1/4" connectors (black and red) from the wire harness to the blower.
F. Install the clear bumpers supplied onto the bottom of the blower to avoid the blower rubbing against the floor
of the appliance.
G. Pivot the blower into the bottom of the appliance, ensuring the gasket remains in place between the
blower and outer shell while sliding the blower against the back side of outer shell into the blower mounting
tab. Secure in place using one screw ( Fig. 1 & 2).
NOTE: WITH THE ZIP TIE SUPPLIED, ENSURE ALL WIRES REMAIN CLEAR OF THE BLOWER.

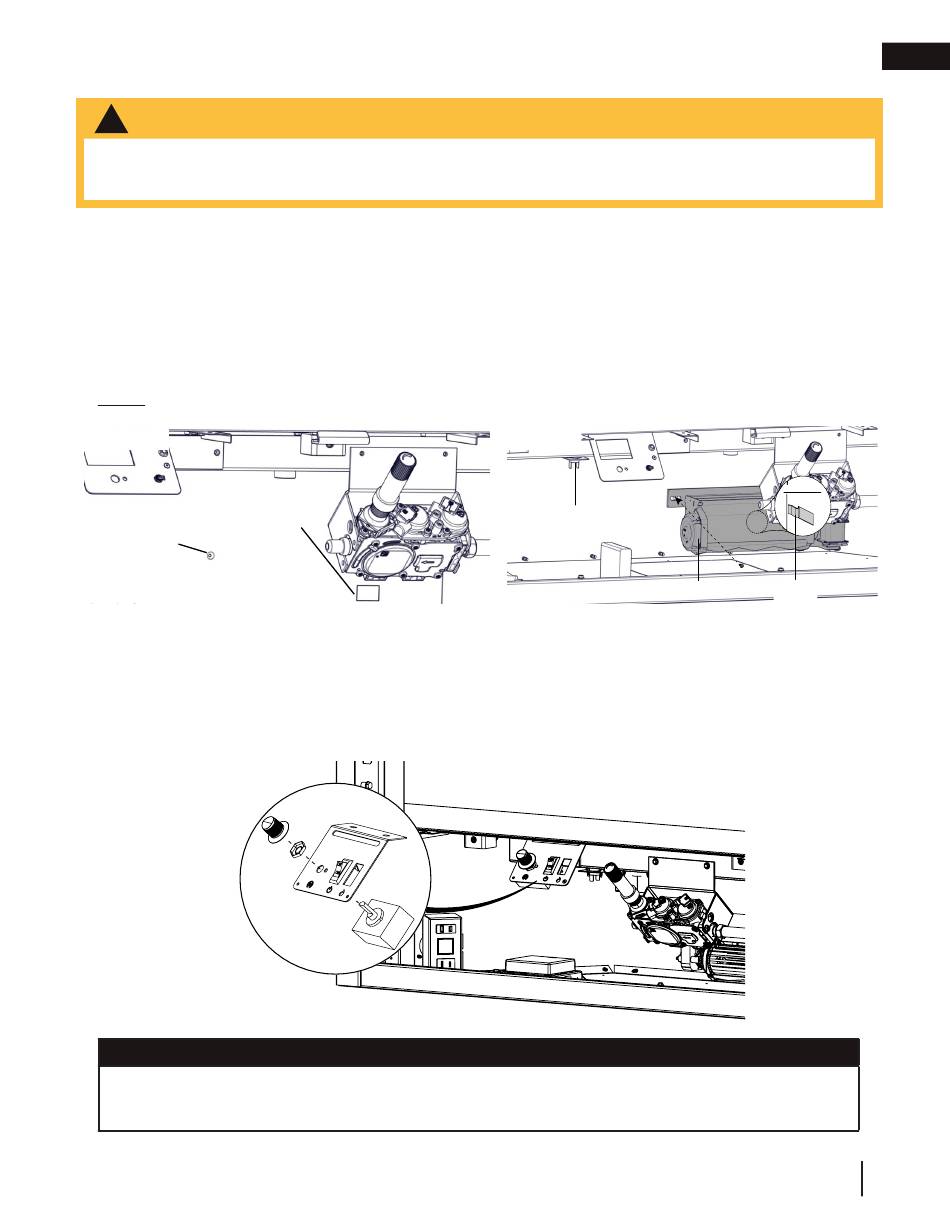

FIG. 1
MOUNTING TAB
LOCATION
SCREW
LOCATION
H. Place the control module back into its original position. Ensure the transformer is plugged into the rear
outlet of the electrical box.
Place the variable speed switch (VSS) through the mounting bracket using the lock washer to secure it. Take
I.
the VSS knob and install into position (Fig. 3).
J. Plug the connector from the variable speed switch to the matching connection on the wire harness.
K. Ensure that the thermal disc is in contact with the firebox base and that the wire harness is properly attached.
L. Plug the power cord from the blower into the electrical box.
FIG. 3
note:
The blower is thermally activated, so when it is turned on, it will automatically start approximately
15 minutes after lighting the appliance and will run for approximately 30 minutes after the appliance has been
turned off.
BLOWER
FIG. 2
THERMODISC
BLOWER
finishing
EN
REAR VIEW
BLOWER
MOUNTING
TAB
