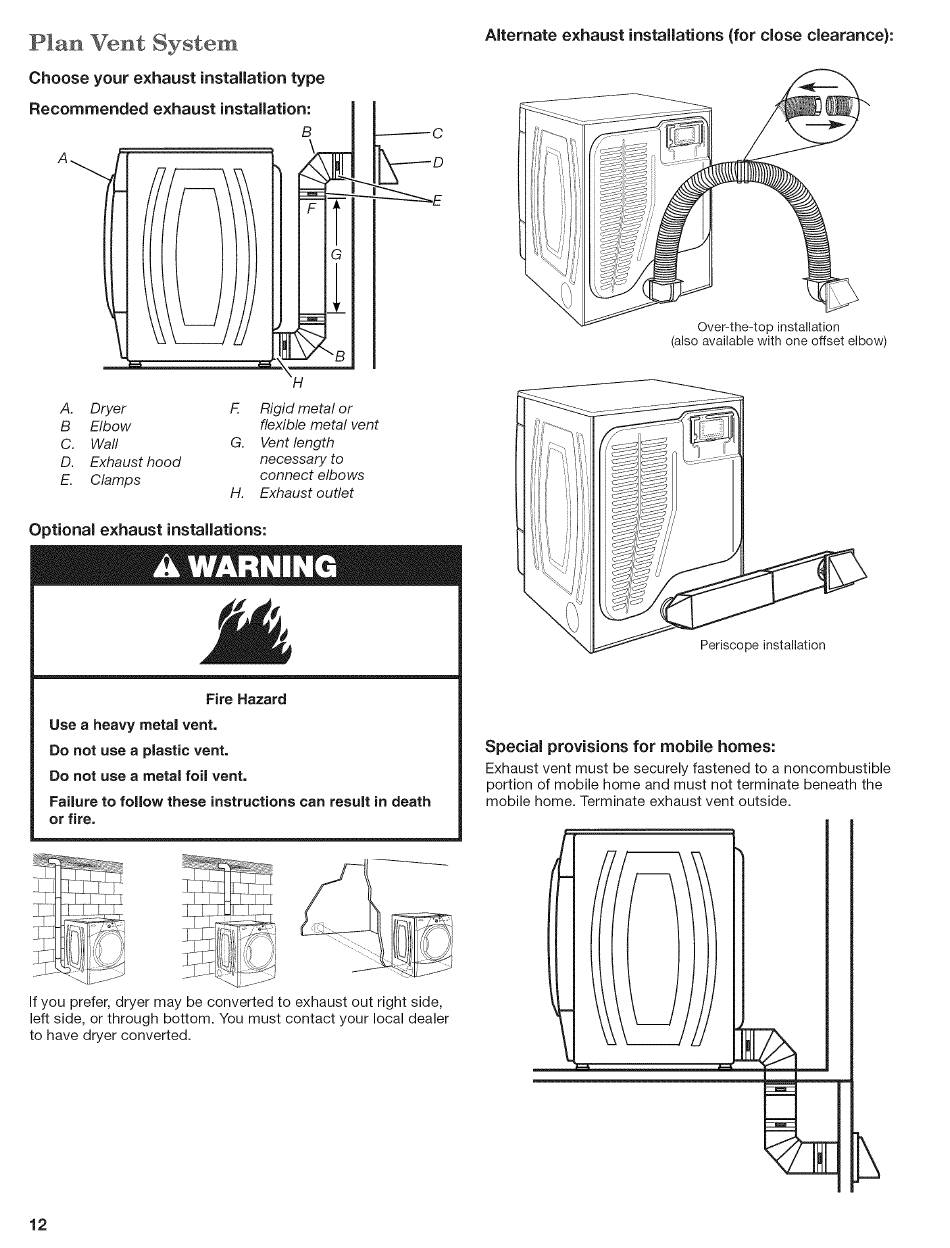

Alternate exhaust installations (for close clearance):
Plan Vent System
Choose your exhaust installation type
Recommended exhaust installation:
A
Over-the-top installation
(also available with one offset elbow)
A.
Dryer
F.
Rigid metal or
B
Elbow
flexible metal vent
C.
Wall
G.
Vent length
D,
Exhaust hood
necessary to
E.
Clamps
connect elbows
H.
Exhaust outlet
Optional exhaust installations:
Gh)
é
Periscope installation
Fire Hazard
Use a heavy metal vent.
Do not use a plastic vent.
Special provisions for mobile homes:
Exhaust vent must be securely fastened to a noncombustible
portion of mobile home and must not terminate beneath the
Failure to follow these instructions can result in death
mobile home. Terminate exhaust vent outside.
or fire.
Do not use a metal foil vent.
If you prefer, dryer may be converted to exhaust out right side,
left side, or through bottom. You must contact your local dealer
to have dryer converted.
