Jennair JB36NXFXLE Guide D'installation page 23

A
B
C

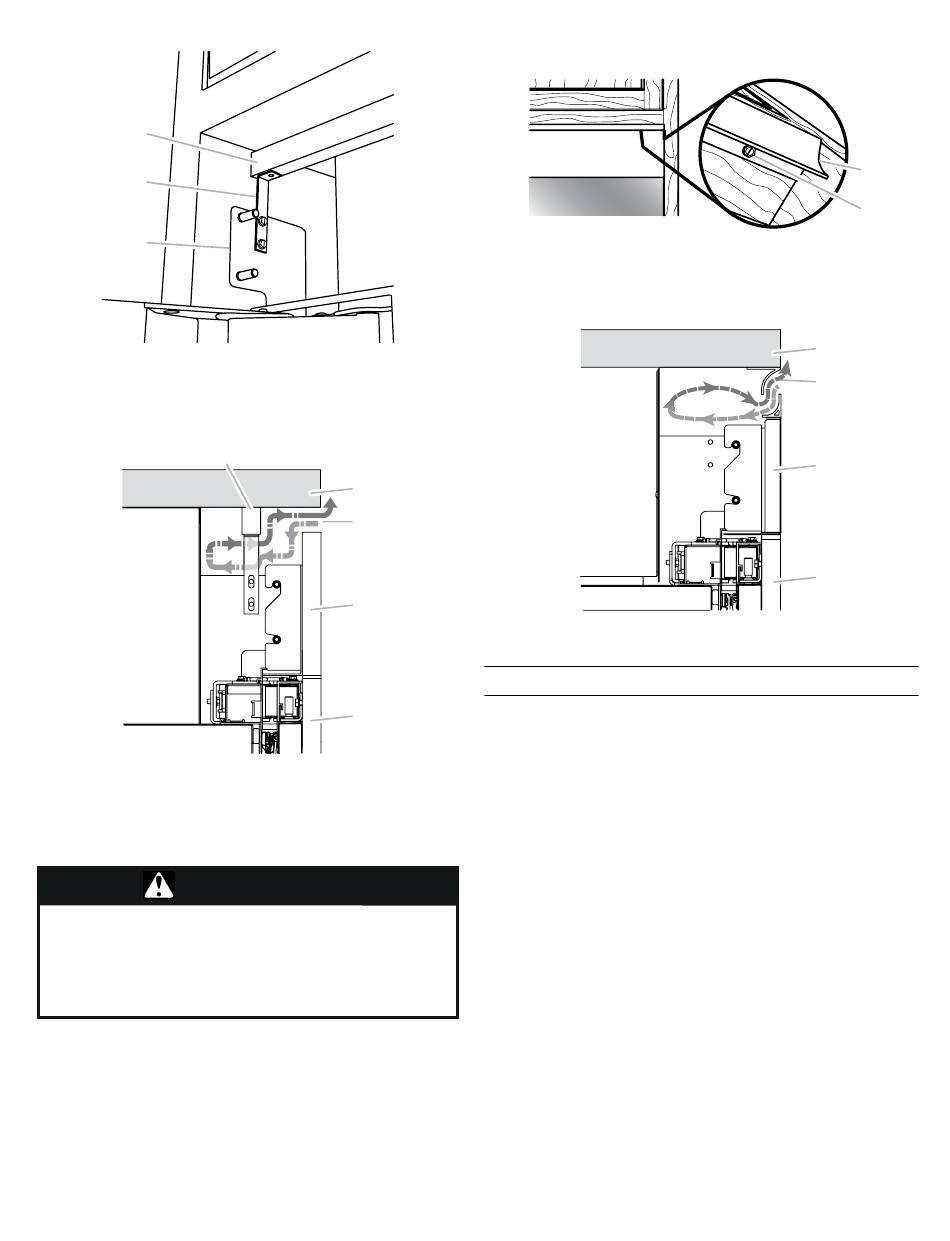

A. Top grille filler
B. "L" bracket
C. Grille mounting plate
Side View
A. Top grille filler
B. Soffit
C. Airflow
Stainless Steel Panel Kit Models
WARNING
Excessive Weight Hazard
Use two or more people to move and install
panels.
Failure to do so can result in back or other injury.
1. Align top grille vent (provided in the door kit) with the bottom
edge of the soffit. Use as a template, and mark where to drill
the holes.
A
B
C
D
E
D. Grille panel
E. Door panel
2. Using slotted hex-head screws (provided with refrigerator),
attach the top grille vent to the soffit.
A. Top grille vent
B. Slotted hex-head screw
Side View
A. Soffit
B. Airflow
JennAir Stainless Steel Panel Kits (only)
IMPORTANT: The panels included in the panel kits come with the
mounting bracket preinstalled and are prepared for installation.
36" Single Door Models - Door Panel Kit (only)
These panels are designed for refrigerator doors with the hinges
installed on the right-hand side. If you reverse the door swing, you
must move the door panel mounting bracket and the shoulder
washers.
To modify the door panel for a left-hand swing door:
1. Remove the mounting bracket from one end of the door
panel and reinstall it on the opposite end of the panel into the
predrilled holes.
NOTE: The end with the mounting bracket is now the top of
the door panel.
2. Remove the hex-head pointed screws and shoulder washers
from the holes marked with a red "R."
A
B
A
B
C
D
C. Grille panel
D. Door panel
