Fox 34 STEP-CAST Guide Du Propriétaire page 11

SAG SETTING
To achieve the best performance from your
FOX suspension, adjust the air pressure to attain your

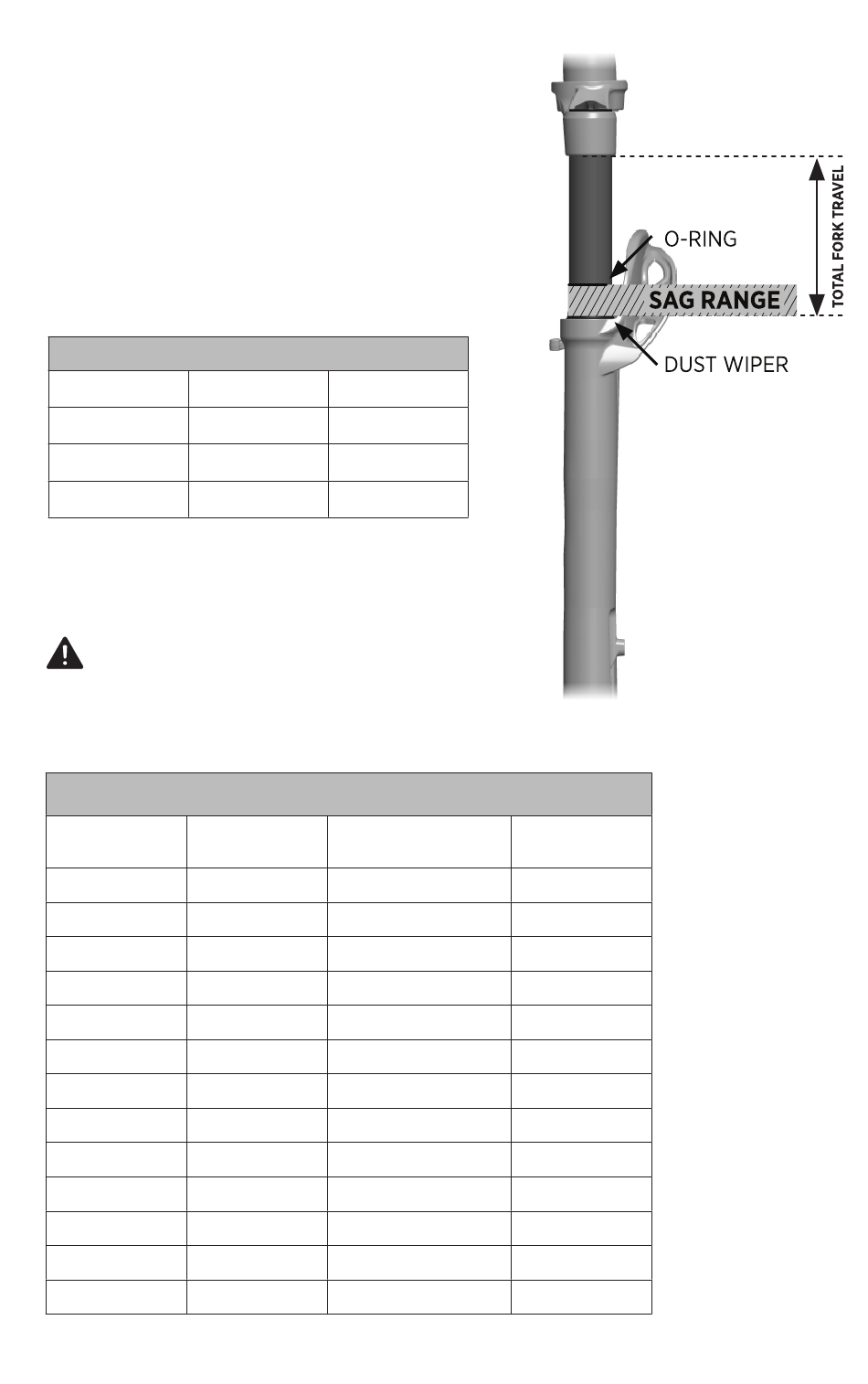

proper sag setting. Sag is the amount your suspension
compresses under your weight and riding gear. Sag range
should be set to 15–20% of total fork travel.
Make sure to set sag with the compression lever
in the OPEN mode.
Watch the sag setup video at ridefox.com/sagsetup
Suggested Sag Measurements
Travel 15% sag (Firm)
100 mm (3.9 in) 15 mm (0.59 in)
110 mm (4.3 in) 17 mm (0.67 in)
120 mm (4.7 in) 18 mm (0.71 in)
Do not exceed maximum air pressure:
34 Step-Cast maximum air pressure is 120 psi.
Suggested Starting Points for Setting Sag
Rider Weight Rider Weight
(lbs)
120-130
130-140
140-150
150-160
160-170
170-180
180-190
190-200
200-210
210-220
220-230
230-240
240-250
20% sag (Plush)
20 mm (0.78 in)
22 mm (0.87 in)
24 mm (0.94 in)
34 Step-Cast Pressure
(kgs)
54-59 65 psi (4.5 bar)
59-64 70 psi (4.8 bar)
64-68 74 psi (5.1 bar)
68-73 80 psi (5.5 bar)
73-77 85 psi (5.9 bar)
77-82 90 psi (6.2 bar)
82-86 96 psi (6.6 bar)
86-91 101 psi (7.0 bar)
91-95 106 psi (7.3 bar)
95-100 111 psi (7.7 bar)
100-104 117 psi (8.1 bar)
104-109 122 psi (8.4bar)
109-113 126 psi (8.7 bar)
Rebound
Setting
13
12
11
10
9
8
7
6
5
4
3
2
1
