16 Reversing Door

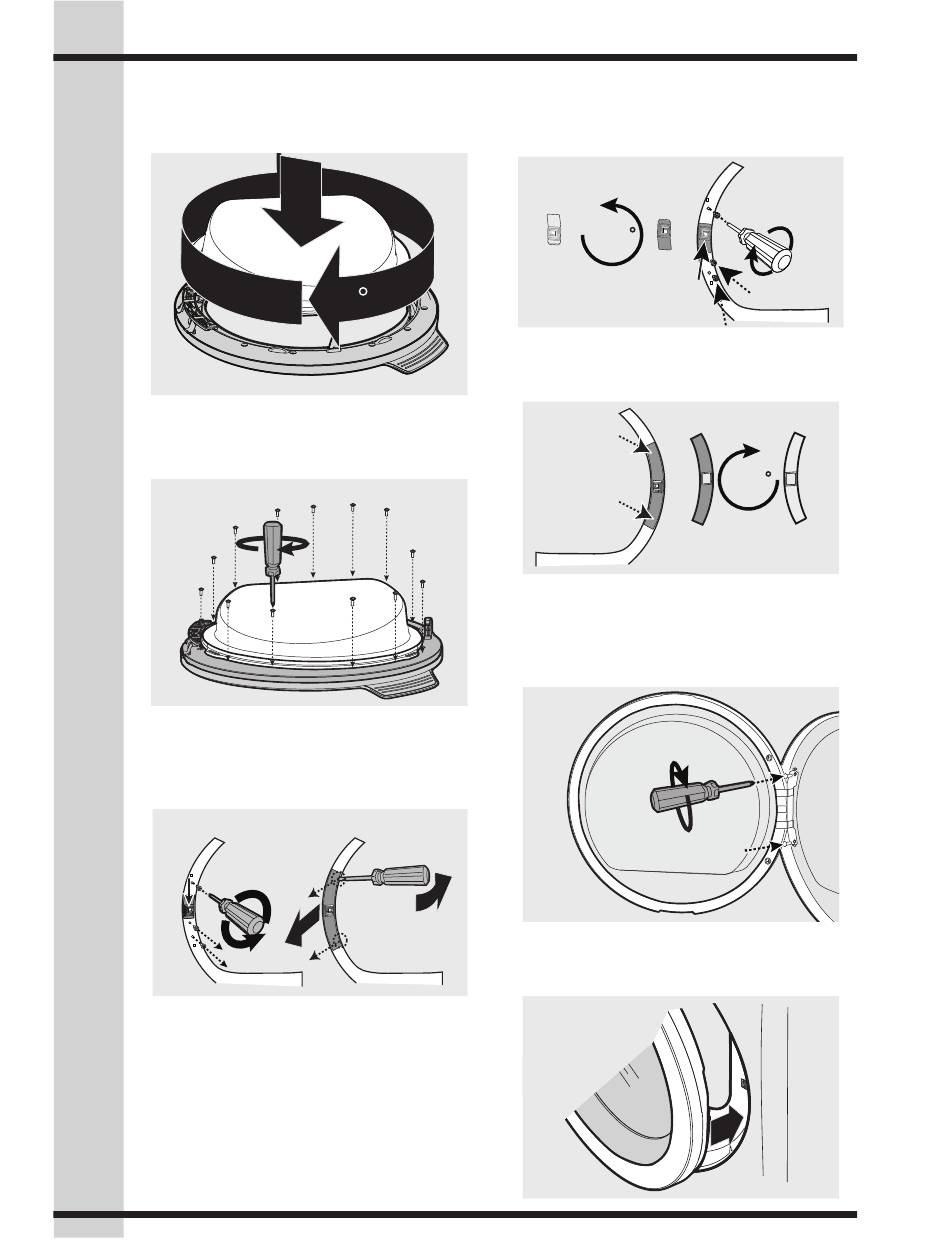

9. Rotate inner lens clockwise 90˚ from its
original position and place back into door
assembly.
10. Rotate the inner door ring counterclock-
wise 90˚ from its original position and
reattach with 13 screws removed earlier.
5
4
3
2
11. Gently pry the plastic latch cover from
the front panel and set it aside. Remove
the 3 screws securing the door latch and
release the latch.
2
3
90
7 8
6 9
10
11
12
13
1
1
12. Rotate the latch 180° and reinstall it in
the opposite location with the 3 screws
removed in previous step.
1
180
2
13. Rotate the plastic latch cover 180° and
snap it in place around the door latch.
2
14. While supporting the door, install the 2
hinge mounting screws removed in first
step. Attach the upper screw first and
then the lower one.
15. Close the door and test operation of
hinge, strike and latch.
3
1
180
