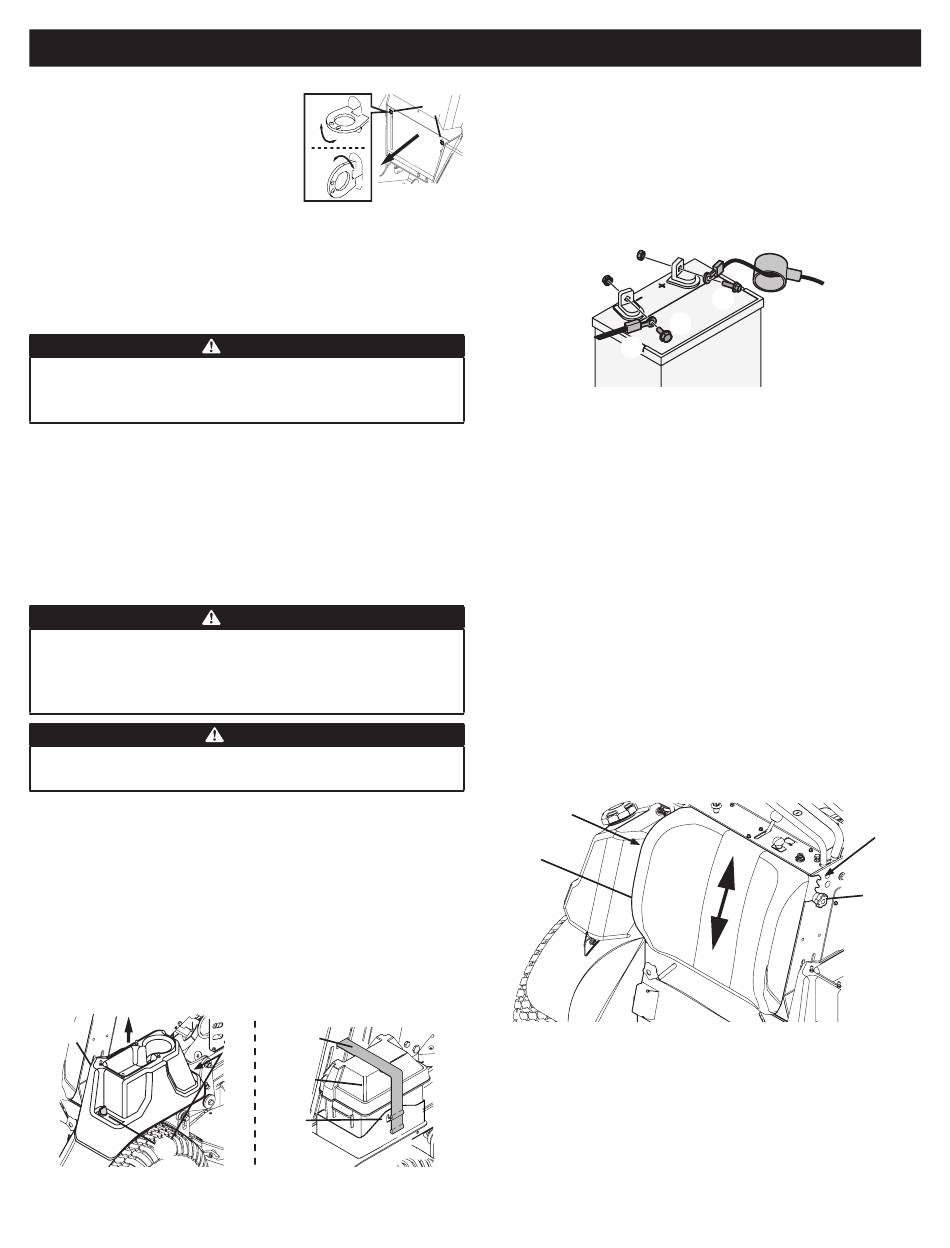

Cub Cadet PRO X 636 Manuel De L'opérateur page 8

Rear Panel with Quarter Turn Latches
1. Lift latch up and rotate the latch one 1/4 turn
and align the latch with the slot in the rear
panel. Repeat this step to the remaining latch.
2. Remove the rear panel from the mower.
3. Reverse STEPS 1 - 2 to install the rear panel.
LUBRICATION & GREASE POINTS
Before operating the mower, refer to the Product Care section of this manual to check
the lubrication and grease points. Grease and lubricate if necessary.
CHECKING TIRE PRESSURE
For proper traction and deck leveling the maximum recommended tire
pressure is 12 psi. Equal tire pressure should be maintained at all times.
NEVER exceed the Maximum PSI noted on the tire side wall.
Inflation Pressure
Rear Tires — 10-12 psi (69-82.7 kPa) max recommended operating pressure.
Front Tires — N/A - Front tires are semi-pneumatic and do not require inflation.
The tires on your mower may be over-inflated for shipping purposes. Reduce the tire
pressure before operating the mower. Recommended operating tire pressure is 10-12
psi (69-82.7 kPa) for rear tires.
CONNECTING THE BATTERY CABLES
CALIFORNIA PROPOSITION 65 WARNING: Battery posts, terminals, and
related accessories contain lead and lead compounds, chemicals known to
the State of California to cause cancer and reproductive harm. Wash hands
after handling.
When attaching battery cables, always connect the POSITIVE (Red) wire to
the terminal first, followed by the NEGATIVE (Black) wire.
For shipping reasons, both battery cables on your equipment may have been left
disconnected from the terminals at the factory. To connect the battery cables,
proceed as follows (Figure 5):
1. Perform one of the following to remove the battery cover:
• Mowers with 48, 54 or 60 Inch Decks - Remove the two thumb screws (a)
securing the battery cover (b) to the right fender. Lift up to remove the battery
cover (Figure 4).
• Mowers with 36 Inch Decks - Unhook the rubber strap (c) securing the battery
cover (b) to the battery tray (d). Lift up to remove the battery cover (Figure 4).
(b)
(a)
1
2
WARNING
WARNING
CAUTION
(c)
(b)
(d)
Figure 4
SET-UP
NOTE: The positive battery terminal is marked POS. (+) (e). The negative battery
(a)
terminal is marked NEG. (–) (f).
NOTE: If the positive battery cable (g) is already attached, skip ahead to step 4.
(b)
2. Remove the red boot (h), if present, from the positive battery terminal (e) and
attach the red cable (g) to the positive battery terminal (e) with the bolt (i) and
hex nut (j).
(m)
3. Position the red boot (h) over the positive battery terminal (e) to insulate it and
help protect it from corrosion.
4. Attach the black cable (k) to the negative battery terminal (f) with the bolt (l) and
hex nut (m).
5. Reverse STEP 1 to reinstall the battery cover to the left fender.
NOTE: If the battery is put into service after the date shown on top/side of battery,
charge the battery prior to operating the machine.
ADJUSTMENTS
Leg Pad Height
1. Loosen the two star knobs (a) securing the leg pad (b) to the mower (Figure 6).
NOTE: Leg pad for mowers with 48, 54 or 60 inch mower decks shown. Leg pad
for mowers with 36 inch mower deck adjusts the same.
2. Remove the leg pad from the mower.
3. Reposition the leg pad into one of three height positions (c).
4. Using the two star knobs, secure the leg pad to the mower.
(a)
(b)
8
(j) (h)
(e) (g)
(f)
(i)
(l)
(k)
Figure 5
Figure 6
(c)
(a)
