ENG
4.5.3.2 DTI cooling unit switch cabinet assembly (installation)

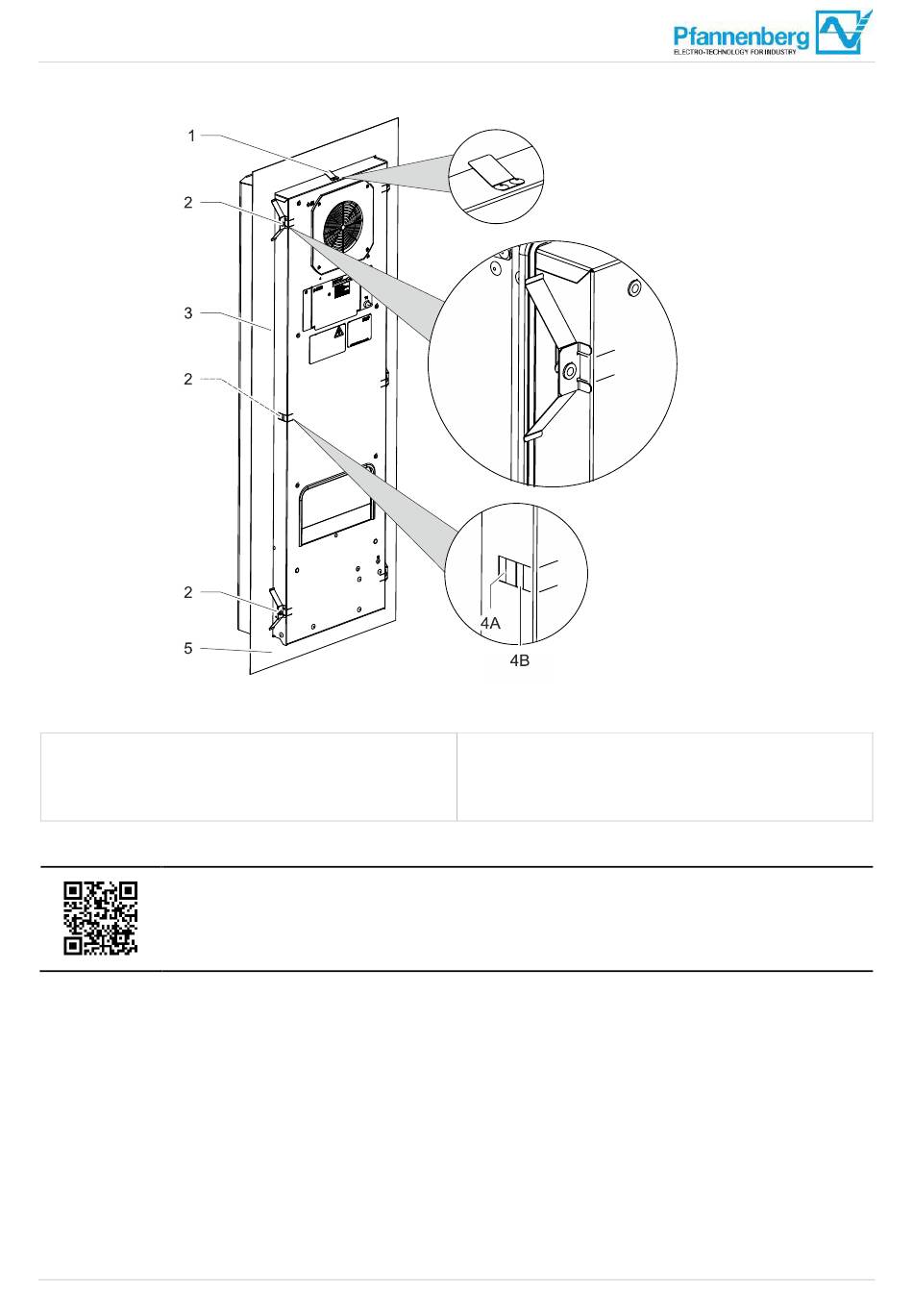

Fig. 14: Assembling the cooling unit
1 Catch spring
2 Fastening spring (number depends on the size:
DTI 6201 to 6501: 6×; DTI 6801: 10×)
3 DTI cooling unit
NOTE
Just scan or click the QR code opposite to watch the assembly video for DTI cooling units.
Operating Manual | Attachment and Installation Cooling Units | Multi Controller (MC) – 230 V | 086100114
(4A + 20 mm)
4A Housing cut-out for fastening spring
4B Housing cut-out for fastening spring
(for switch cabinets with reinforcing frame)
5 Switch cabinet wall/switch cabinet door
G00010-01
38/74
