LoRaWAN PULSE - Mode d'emploi / User guide version V1.6.1
To optimise fastening onto a tube or mast, we recommend you
remove the Rail-DIN locking/unlocking lever.
To remove it, pull the lever down until the locking pins are opposite
a freed-up part and then remove the lever
3.2.2 Screw fastening
The LoRaWAN PULSE unit is delivered with 2 CBLZ 2.2 x 19 mm screws and 2 SX4 wall plugs. Use these products or equivalent products in
order to fasten your product onto a flat support.
Two positions may be selected: Laid flat or on its edge.
•
Placing it on its edge enables the product to be placed at a distance from its support and helps achieve better propagation of the radio
waves.

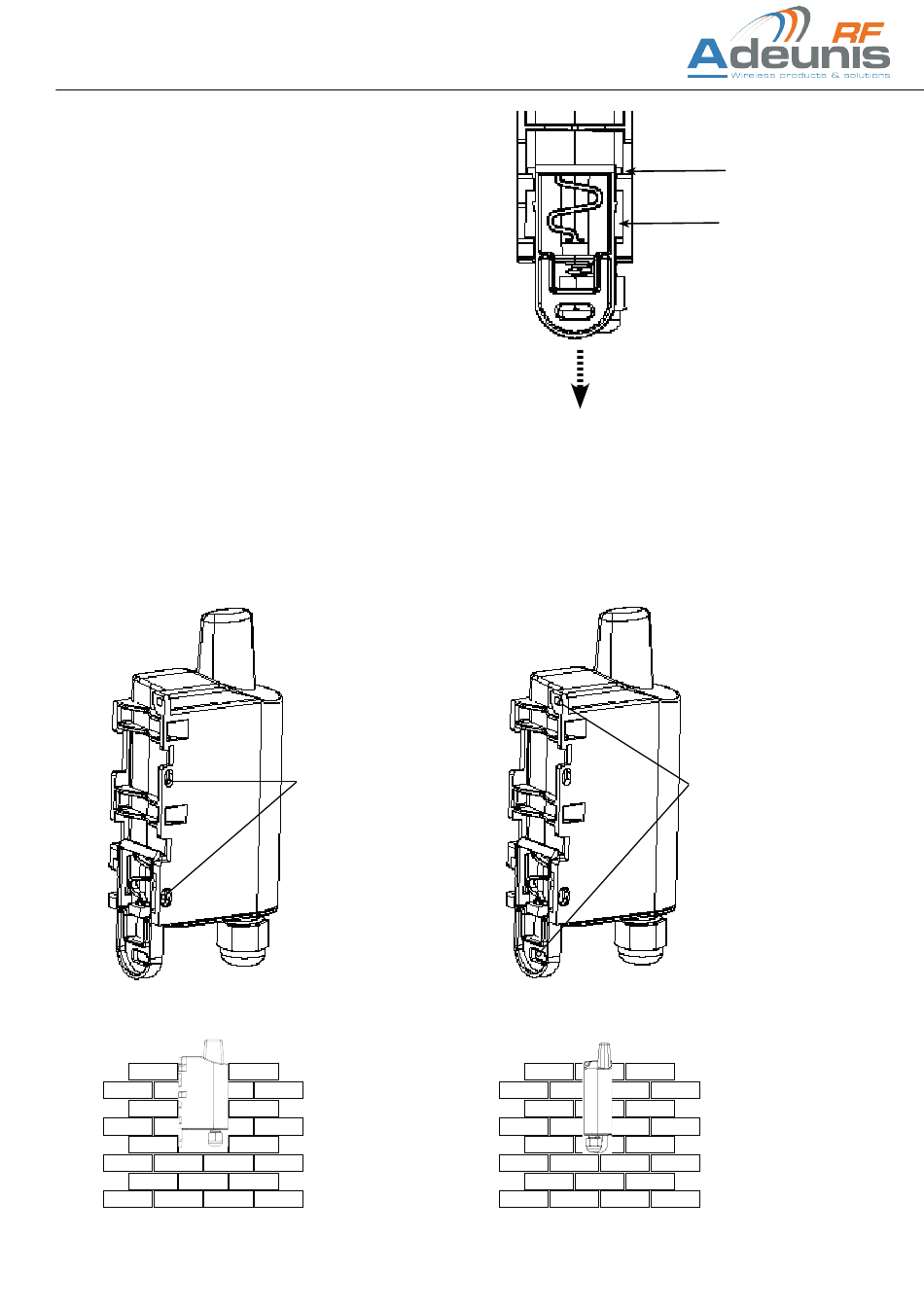

Fastening laid flat
Location of the screws for
fastening it laid flat
Location of the screws for
fastening it on its edge
Fastening on its edge
Pins
Freed up part
