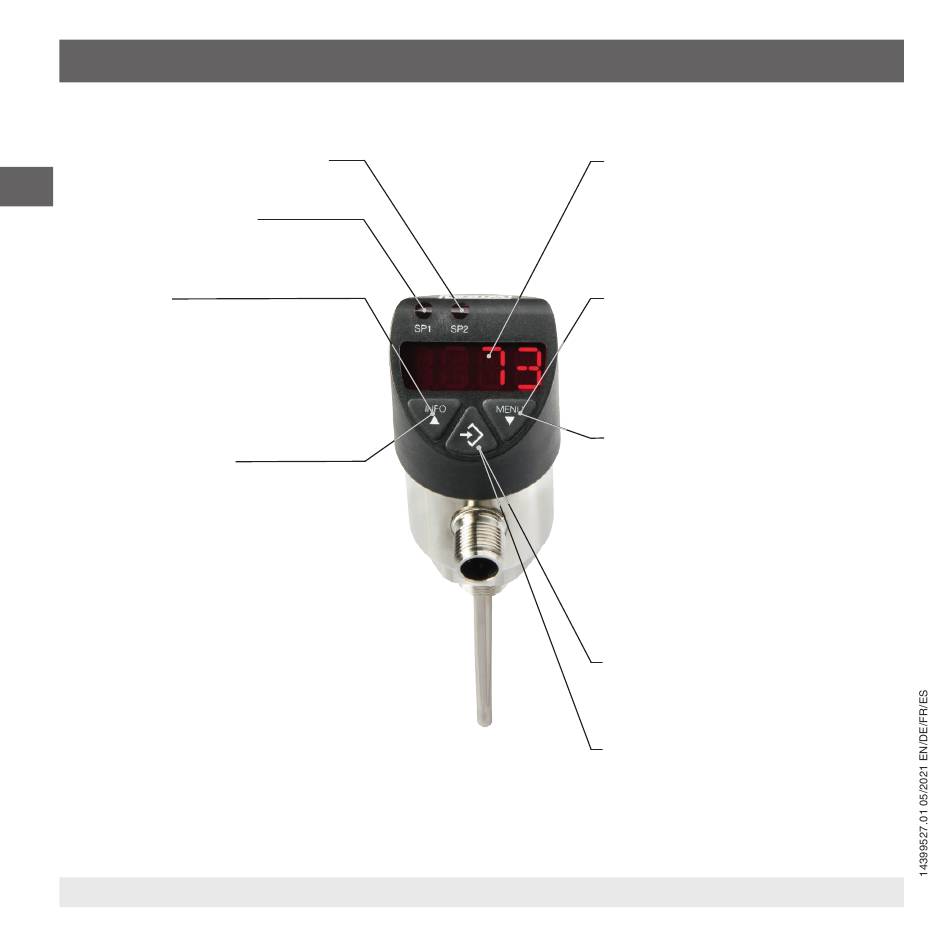

2. Design and function

2.3 Display and operating unit

Status of switching output 2 (optional)
EN
Status of switching output 1
Display mode
▶ Short press
Display of unit
▶ Long press
Display of the set parameters, see chapter
5.5 "Overview of parameters"
Programming mode
▶ Short press
Menu up
Parameter value up (step-wise)
▶ Long press
Menu up
Parameter value up (fast)
6
4-digit LED display
Display of flow
■
Display of menu item
■
Display of parameter
■
Display mode
▶ Short press
Display of unit
▶ Long press
Jumping into the programming mode
Programming mode
▶ Short press
Menu down
Parameter value down (step-wise)
▶ Long press
Menu down
Parameter value down (fast)
Display mode
▶ Short press
Display of unit
Programming mode
▶ Short press
Selection of menu item
Confirmation of input
WIKA operating instructions flow switch, model FSD-4
