1. Introduction

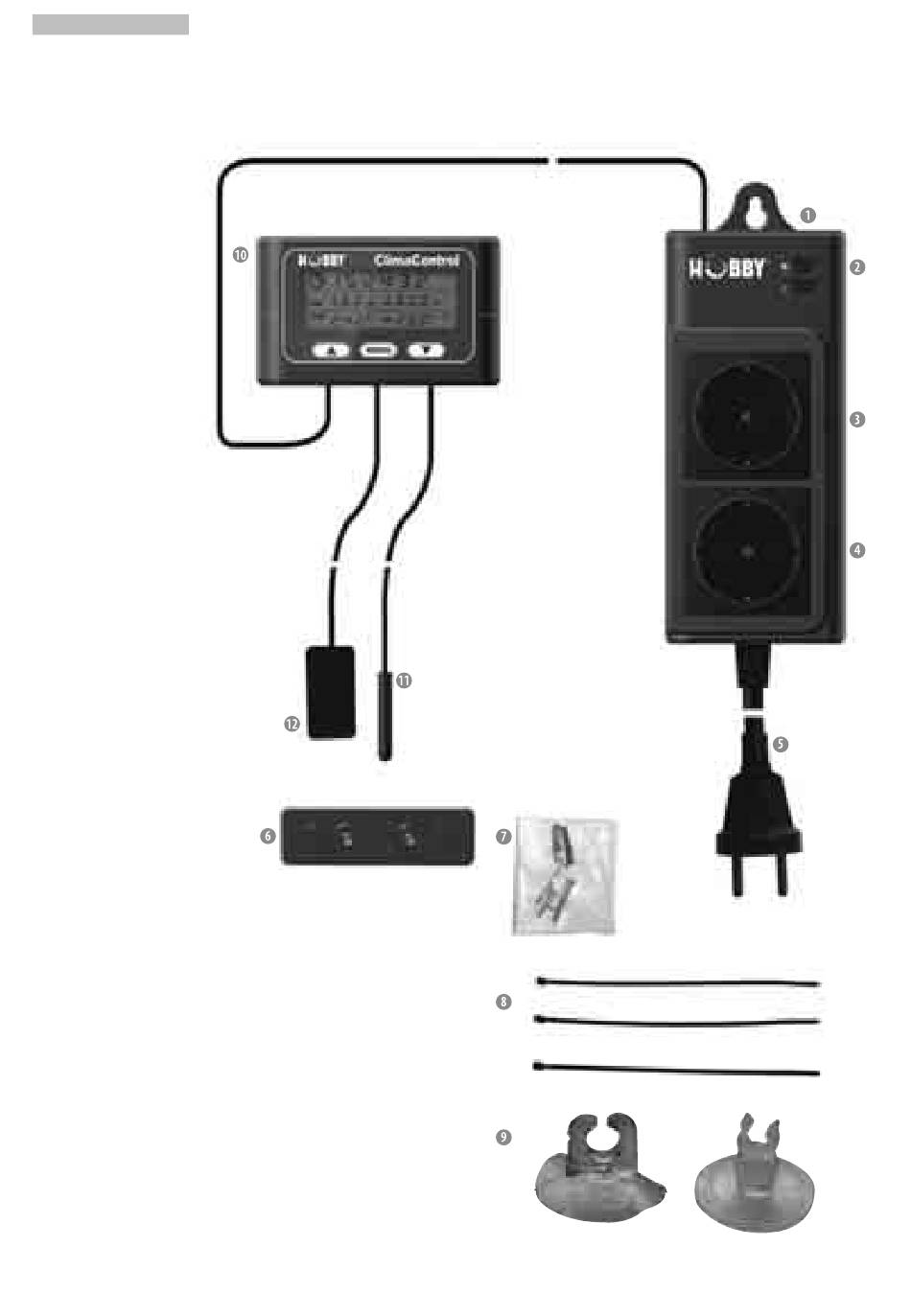

1.1 Control unit and connection strip
1. Connection strip
2. LED
3. Slot 1 for humidity control
4. Slot 2 for temperature/timer control
5. Connecting cable
6. Fastening rail
7. Set of screws for fastening rail
8. Cable tie
9. Suction element for fi xing the sensor
10. Control unit
11. Temperature sensor
12. Humidity sensor
