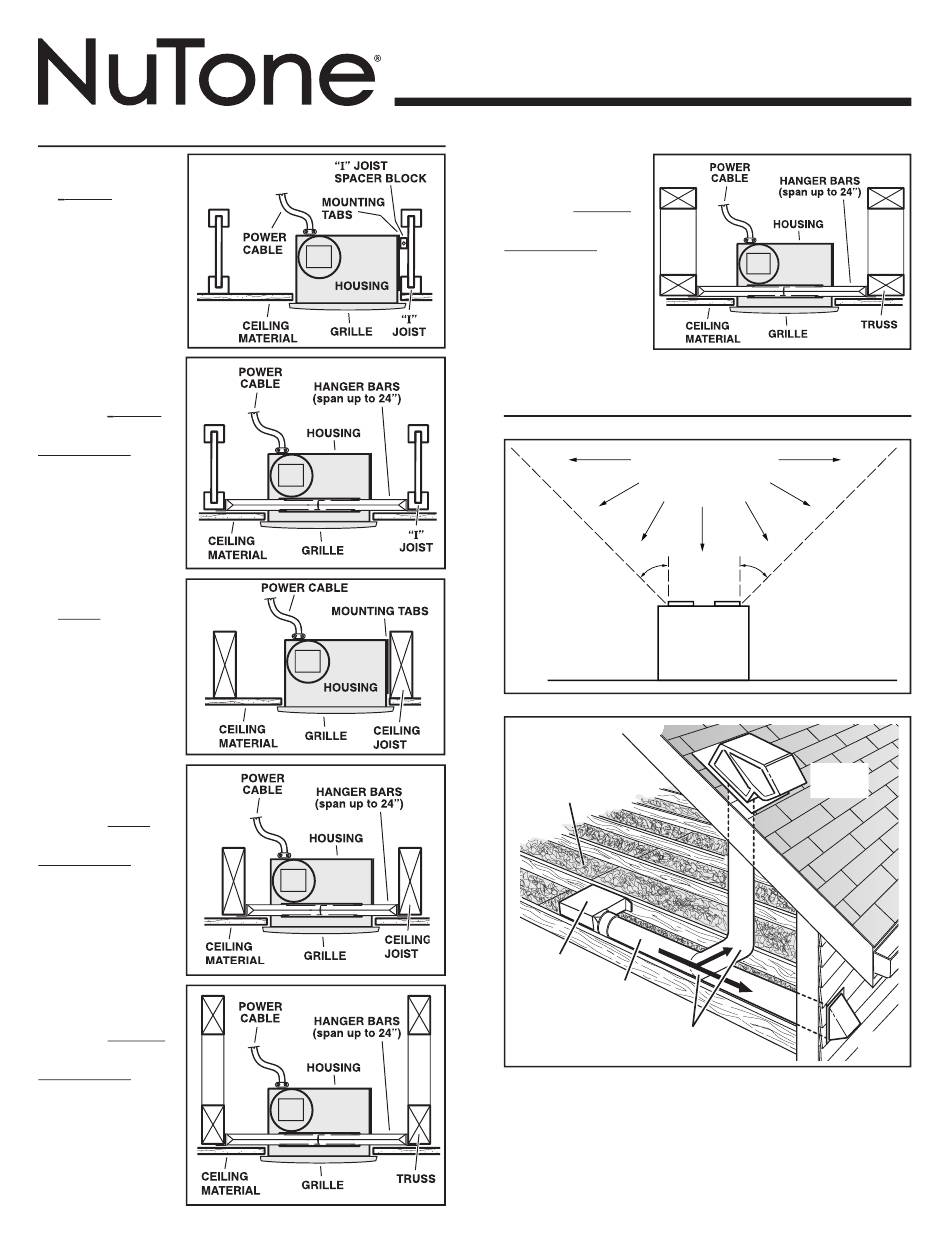

TYPICAL INSTALLATIONS
Housing mounted
to I-joists.
BH0001A
Housing mounted
anywhere
between I-joists
using
hanger bars.
A
Housing mounted
to joists.
Housing mounted
anywhere
between joists
using
hanger bars.
Housing mounted
anywhere
between trusses
using
hanger bars.
All manuals and user guides at all-guides.com
MODELS QTREN070C • QTREN080C
Housing mounted
anywhere
between trusses
using
hanger bars.
BH0006A
PLAN THE INSTALLATION
COOKING AREA
Do not install above or
inside this area.
45º
NOT FOR USE IN
Cooking
A COOKING AREA.
Equipment
INSULATION
(Can be placed
around and over
fan housing.)
FAN
HOUSING
4-IN.
ROUND
*
DUCT
*
Purchase 4-IN. ROUND
separately ELBOW(S)
The unit will operate most quietly and effi ciently when located
where the shortest possible duct run and minimum number of
elbows will be needed.
Use a roof cap or wall cap that has a built-in damper to reduce
backdrafts.
Plan to supply the unit with proper line voltage and appropriate
power cable.
Page 2
45º
Floor
ROOF
*
CAP
WALL
*
CAP *
