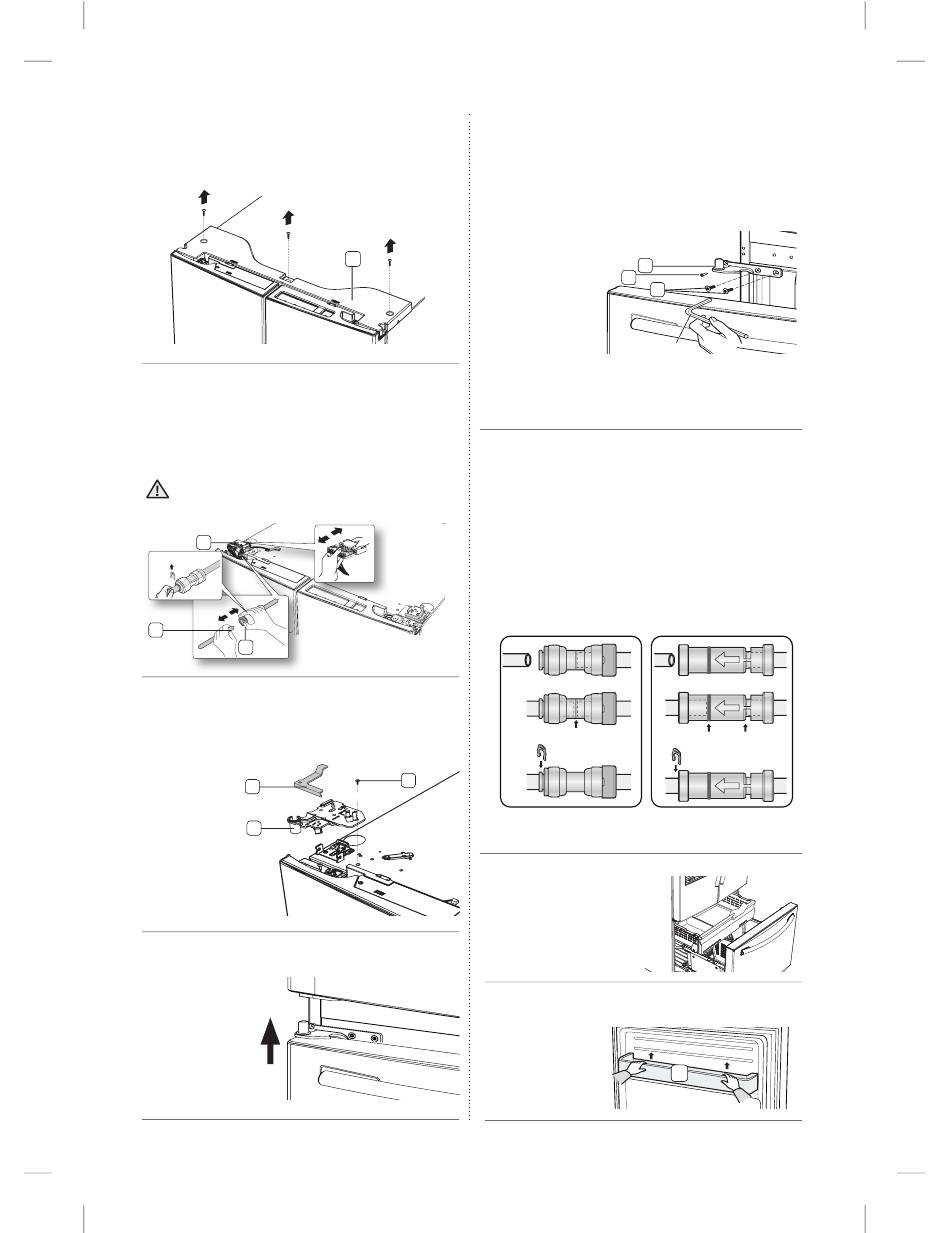

With the door opened
1. Remove 3 screws holding down the TOP
TABLE ( 1 ) and separate wires connected.
2. Disconnect two connector ( 2 ) on the left side
door. To remove the water coupler from the
hinge, twist and pull it from the hinge. Remove
the water line ( 3 ) while pressing the marked
part ( 4 ) of the water line coupler.
If a red clip is on the coupler, it must be
removed before removing the tube.
CAUTION
2
Red Clip
(1/4")
3
4
3. Pull and remove the hinge lever ( 5 ) . Remove
the ground screw ( 6 ) attached to the upper
left door hinges with a philips screwdriver (+).
Remove the upper left and right door hinges ( 7 ).
5
7
4. Lift the door straight up to remove.
DA68-02603A-08.indb 8
All manuals and user guides at all-guides.com
5. Remove the screw ( 8 ) attached to the
lower left and right door hinges with a philips
screwdriver (+). Remove the 2 hex head bolts
( 9 ) attached to the lower left and right door
hinges with an allen wrench (3/16"). Remove
the lower left and right door hinges ( 10 ).
1
REATTACHING THE
REFRIGERATOR DOORS
To reattach the fridge doors after you have moved
the fridge to its fi nal location, assemble the parts
in reverse order.
1. The Water Line must be fully inserted to the
center of transparent coupler (Type A) or the
Guide Lines (Type B) to prevent water leakage
from the dispenser.
2. Insert
holds the line firmly.
6
DISASSEMBLE THE FLEX DOOR
1. Take out the upper drawer by lifting it up.
2. Remove the freeze room guard ( 1 ) by lifting
the guard up.
English - 8
10
8
9
Allen wrench
the clip in the install pack and check that it
Type A Type B
Dispenser
Center of Transparent coupler
clip A (1/4")
clip A (1/4")
(6.35 mm)
(6.35 mm)
1
The Guide Lines
