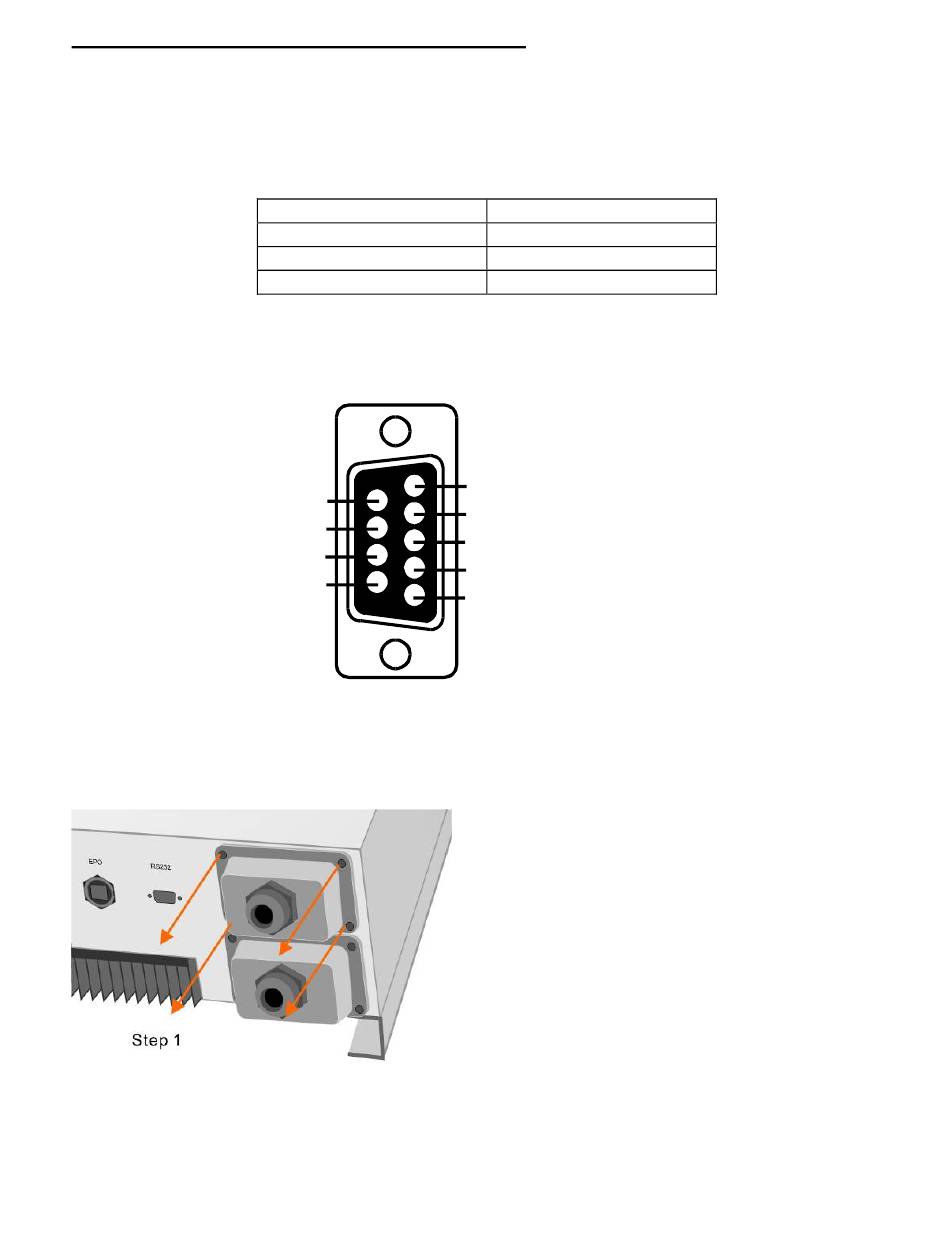

7 . T H E C O M M U N I C A T I O N I N T E R F A C E
1. Standard communications interface
RS232 interface definition
The pin assignments of true RS232 type.
The pin assignments of true RS232 type are illustrated as follows:
2. Option communication card
Hardware installation procedure
INFOSEC UPS SYSTEM - 4, rue de la Rigotière - 44700 Orvault - FRANCE - www.infosec-ups.com
Hot Line – Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)2 40 94 29 51 - hotline@infosec.fr – 04 10 AA 68 203 18
All manuals and user guides at all-guides.com
The RS232 interface shall be set as follows:
Baud Rate
Data Length
Stop Bit
Parity
9
8
7
6
9600 bps
8 bits
1 bit
None
Pin 2: RS232 Rx
Pin 3: RS232 Tx
5
Pin 5: Ground
4
3
2
1
Open the top and sides of the cabinet
