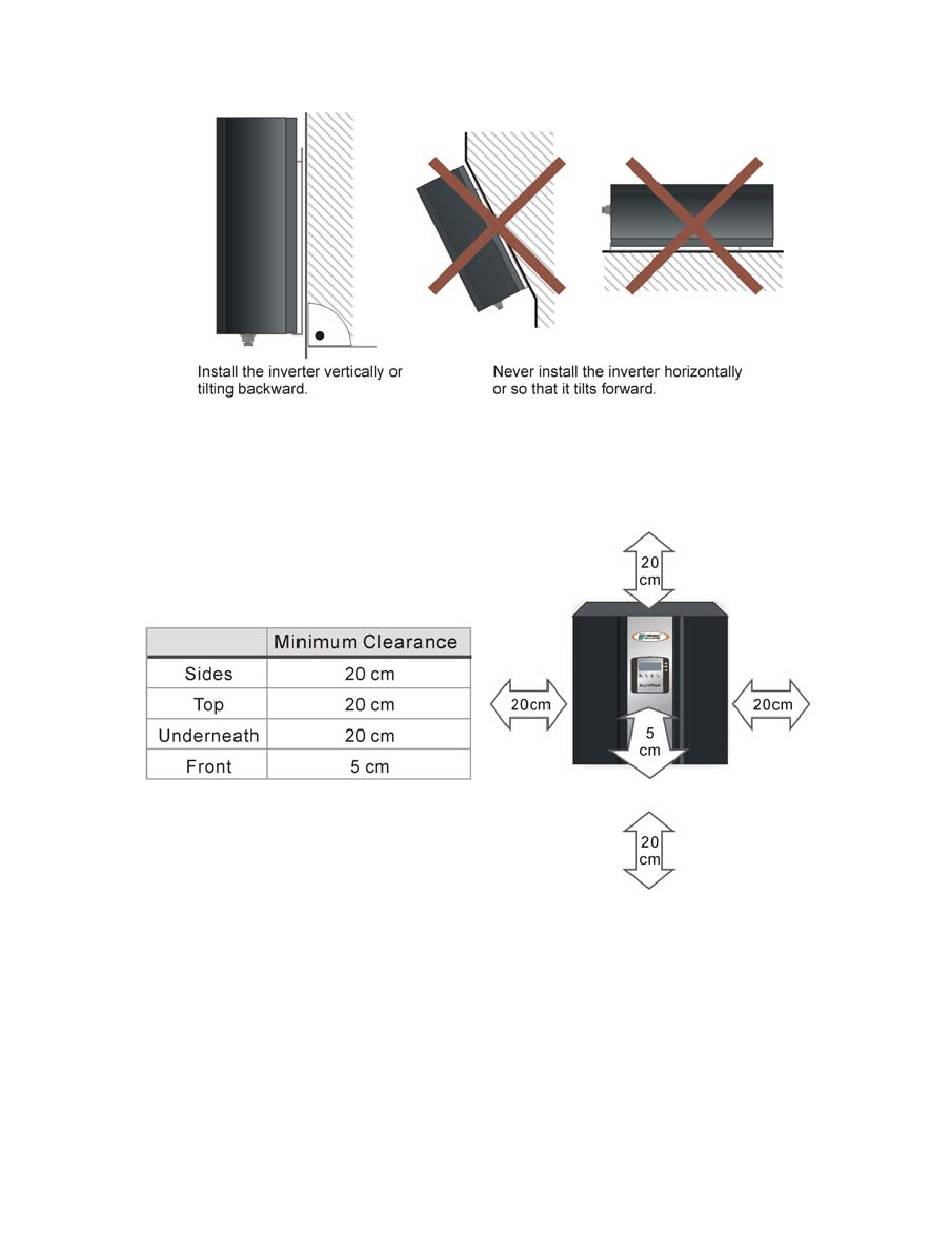

(2) The P2 SunRise is designed to be mounted on a vertical wall. If installing the unit
outdoors, make sure that it is not slanting forward.
We advise against installing the unit in a horizontal position outdoors.
(3) When choosing the installation site, ensure there is enough space for heat dissipation.
Under normal conditions, the following guidelines should be applied for the space to be kept
clear around the inverter:
