6 . S T A R T I N G T H E P 2 S U N R I S E
Before the inverter is started, be Ensure as follow:
Ğ
The housing cover is securely screwed tight.
Ğ
Ensure the AC breaker is OFF.
Ğ
Ensure the DC cables (PV strings) are fully connected.
Ğ
Ensure the AC (utility) cable is connected correctly.
1. Operations test and installation instruction
1 - Connect the PV string voltage by switching on the DC circuit breaker. The Inverter starts
automatically when it receives DC voltage greater than 120V

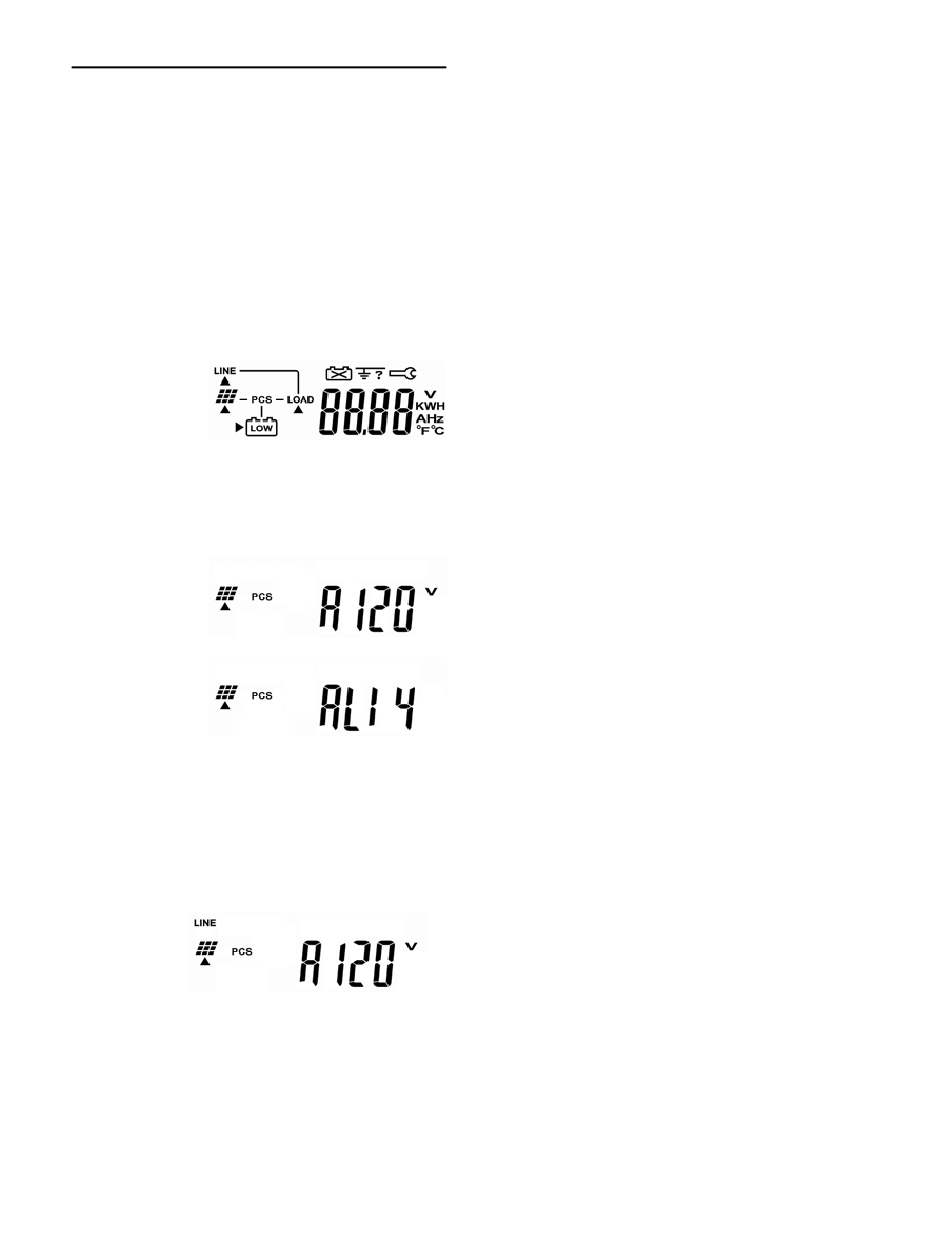

The LCD display will illustrate drawing A.
A
2 - After 3 seconds, the LCD display will illustrate from drawing A to drawing B1 and B2. The
Green LED flashes flickeringly to indicate that the DC input power is smaller than sleep
power. The yellow LED steadily lights up to indicate that no utility exists.
B1
B2
3 - Turn on the AC breaker. If Utility specification (ex. Voltage, frequency etc.) is matched
with the specs of the inverter, after 300 seconds the LCD display will illustrate drawing C.
And the Yellow LED will go out to indicate that the utility is acceptable by the inverter. If
Utility's specification (ex. Voltage, frequency etc.) is not matched with the specs of the
inverter then an error code or error status will be shown on the screen.
C
INFOSEC UPS SYSTEM - 4, rue de la Rigotière - 44700 Orvault - FRANCE - www.infosec-ups.com
18
Hot Line – Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)2 40 94 29 51 - hotline@infosec.fr – 04 10 AA 68 203 18
All manuals and user guides at all-guides.com
. All of the LEDs will light up.
