WARNING  SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON
Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished.

Servicing

BEFORE SERVICING ANY GAS CARRYING COMPONENTS.
TURN OFF THE GAS SUPPLY
Check the appliance is gas sound after completion of
service. When checking for gas leaks do not use washing
up liquid - this can corrode. Use a product specifi cally
manufactured for leak detection.
Do not use re-conditioned or unauthorised gas controls.
Disconnect from the electricity supply before commencing
servicing, particularly before removing any of the following:
- control panel, side panels, hotplate tray or any electrical
components or covers.
Before electrical re-connection, check that the appliance is
electrically safe.
Note - References to LH and RH oven apply as viewed from
the front.
1 To Remove the Control Panel
Disconnect from electricity supply.
Open the oven doors and remove the fi xing screws
underneath the control panel. NB some models have a plate
under the facia held in place by the bottom fi xing screws.
Pull off all the control knobs.
Slide the control panel to the right and then pull forward.
Take care not to damage or strain the wiring.
Lift the control panel, pull forward.
Disconnect the wiring from the rear. Reassemble in reverse
order. When replacing leads refer to the wiring diagram.
Check operation of timer.
2. To Remove Hotplate Trays
Disconnect from electricity supply.
Pull the cooker forward to gain access to the rear
Left hand tray
From the rear remove the screws securing the fl ue
grille to the hotplate tray. Remove pan supports,
burner heads and caps. Remove the 4 screws and
washers holding the hotplate tray to the frame.
Raise the front of the hotplate then withdraw.
Right hand tray
From the rear remove the screws securing the fl ue
grille to the hotplate tray. If the LH hotplate has not
been removed, slacken the screws holding the L H
tray. Remove pan support, burner head, caps and
trim rings. Remove the screws holding the Wok
burner to the hotplate. Remove the 4 screws and
washers holding the RH tray to the frame. Taking
care not to damage the Wok burner electrode, lift
tray and withdraw.
Reassemble in reverse order ensuring that the leads are
reconnected. When replacing the RH hotplate take care not
to damage the ignition electrode of the Wok burner.

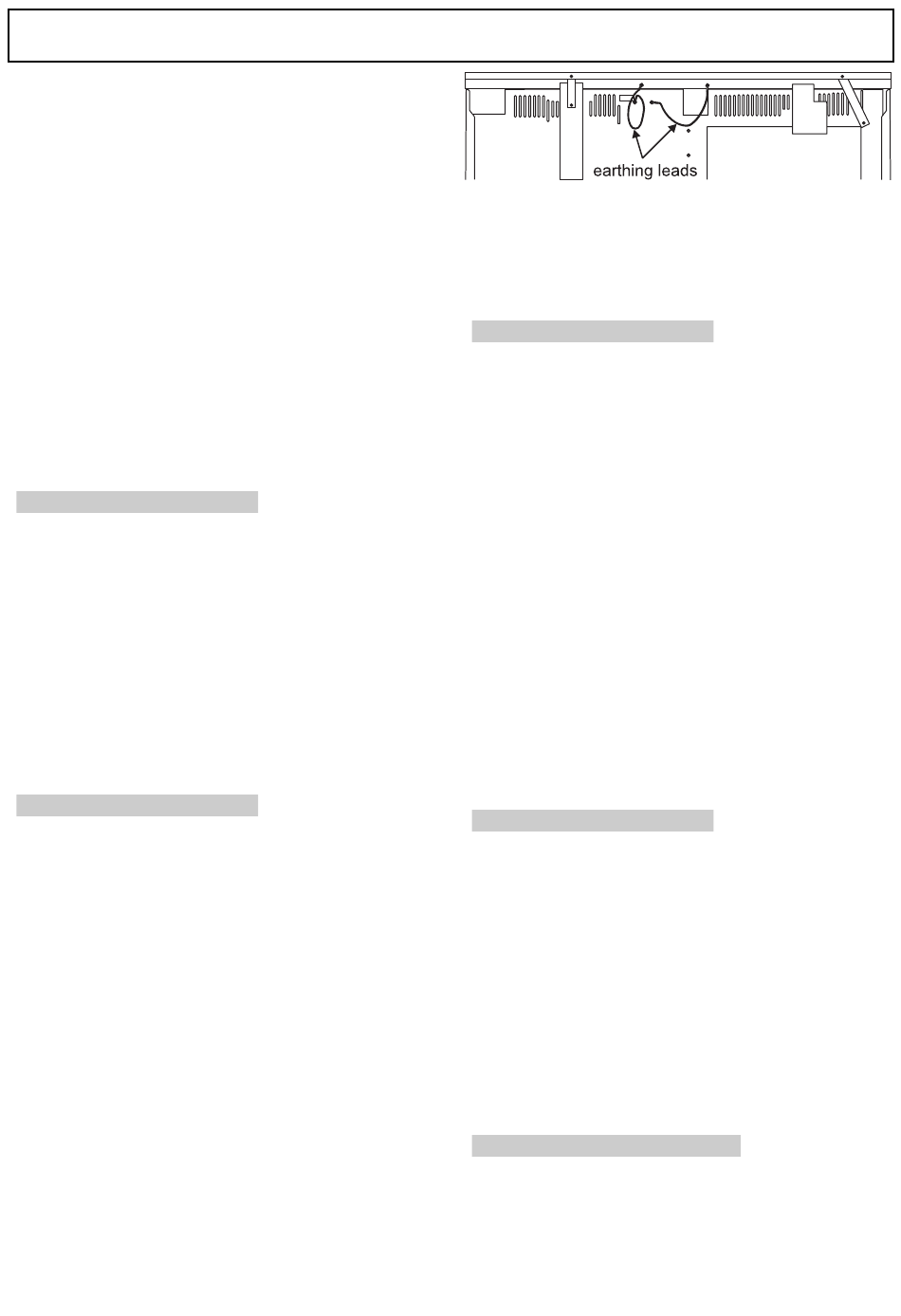

It is important that the rear earthing leads are replaced
when the fi xing screws are refi tted as they from part of the
cooker earthing.
Check for correct burner operation.
3. To Remove Side Panels
Disconnect from electricity supply.
Remove the Control Panel - see 1. Pull the cooker forward.
Remove the 4 retaining screws for each panel (1 at the front
base, 1 on the top and 2 at the rear).
Reassemble in reverse order.
4. To Remove Ignition or light Switch
Remove the Control Panel - see 1.
NB. The old switch may be destroyed during removal.
Remove the old switch from its bezel by griping the switch
body behind the control panel and twisting sharply. The
switch bezel can then be removed by folding back its
locking wings and pushing forward. Fit the new bezel to the
control panel by fi rst lining up the raised key on its body
with the cutout in the control panel and pushing it in from
the front. Assemble the new switch to the bezel by lining up
the key sections and pushing home. Fit the new button by
pushing in from the front.
Replace Control Panel in reverse order and test for correct
operation.
5. To Remove Clock
Disconnect from electricity supply.
Remove the Control Panel (See 2). Pull off the timer control
button(s).
Remove the timer/mounting bracket assembly from the
control panel by removing the fi xing screws.
Remove the timer from its mounting bracket by depressing
the plastic lugs on the timer case, at the same time pulling
the unit forward.
Reassemble in reverse order. When replacing leads refer to
the wiring diagram. Check operation of timer.
BEFORE SERVICING ANY GAS CARRYING COMPONENTS
TURN OFF GAS SUPPLY.
6. To Remove a Thermostat
Disconnect from the electricity supply.
Remove control panel and appropriate hotplate tray. Open
oven door. Remove oven furniture and slide out oven roof
liner if fi tted.
49
