Included are:
• The sensor switch
• Cover plate
• 3 wire connectors
• 2 large screws
• 2 small screws
INSTALLATION
SELECT A LOCATION
The sensor is more sensitive to motion across
the front of the sensor than to motion towards
the sensor.
The detector senses heat in motion and pos-
sibly heat sources that change temperature
quickly. Therefore, to avoid false triggering,
avoid placing the sensor where it will be aimed
at air conditioners, heaters, and other sources
of heat or cold.
© 2008 HeathCo LLC
Get user manuals: See SafeManuals.com

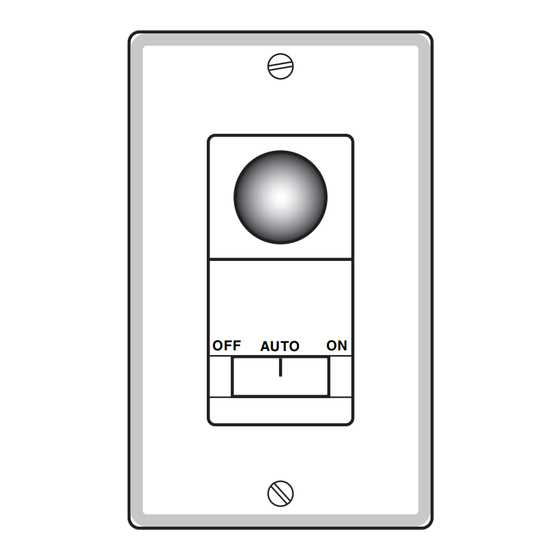

Motion Sensor
Wall Switch
6103
AUTO ON
The 6103 Motion Sensor Wall Switch detects motion to turn on lights
for a fixed time of 5 minutes. The unit has excellent sensitivity and
a 110° detection range. It can be used with incandescent lighting as
well as rapid start fluorescent lighting.
Installation is as easy as replacing a wall switch. However, some
codes require installation by a qualified electrician.
• 110° motion detection angle
•
• Works with incandescent and rapid start fluorescent lighting
• Works with motors up to 1/8 hp
• Slide switch selectable OFF, ON, and AUTO modes
Features include:
Fixed ON TIME – 5 minutes
20 ft.
(6.1 m)
10 ft. (3.5 m) 0
Figure 1 - Typical Plan View of
Coverage
598-1349-00
