Stegos – Quick Start Guide
2. How to operate the system
2.1 Stegos RS receiver
The receiver provides three different connections for video conference systems: 3-pin Phoenix terminal
strip, mini jack (3.5 mm) and 3-pin XLR. The individual microphone signals are available via a multipin
Phoenix terminal strip. For the data exchange with media control systems or PC there is an RS 232
interface and a USB connection available. The channel LEDs display which channel is occupied (red) or
available (green). Up to four acoustical boundary microphones can be operated with one receiver.

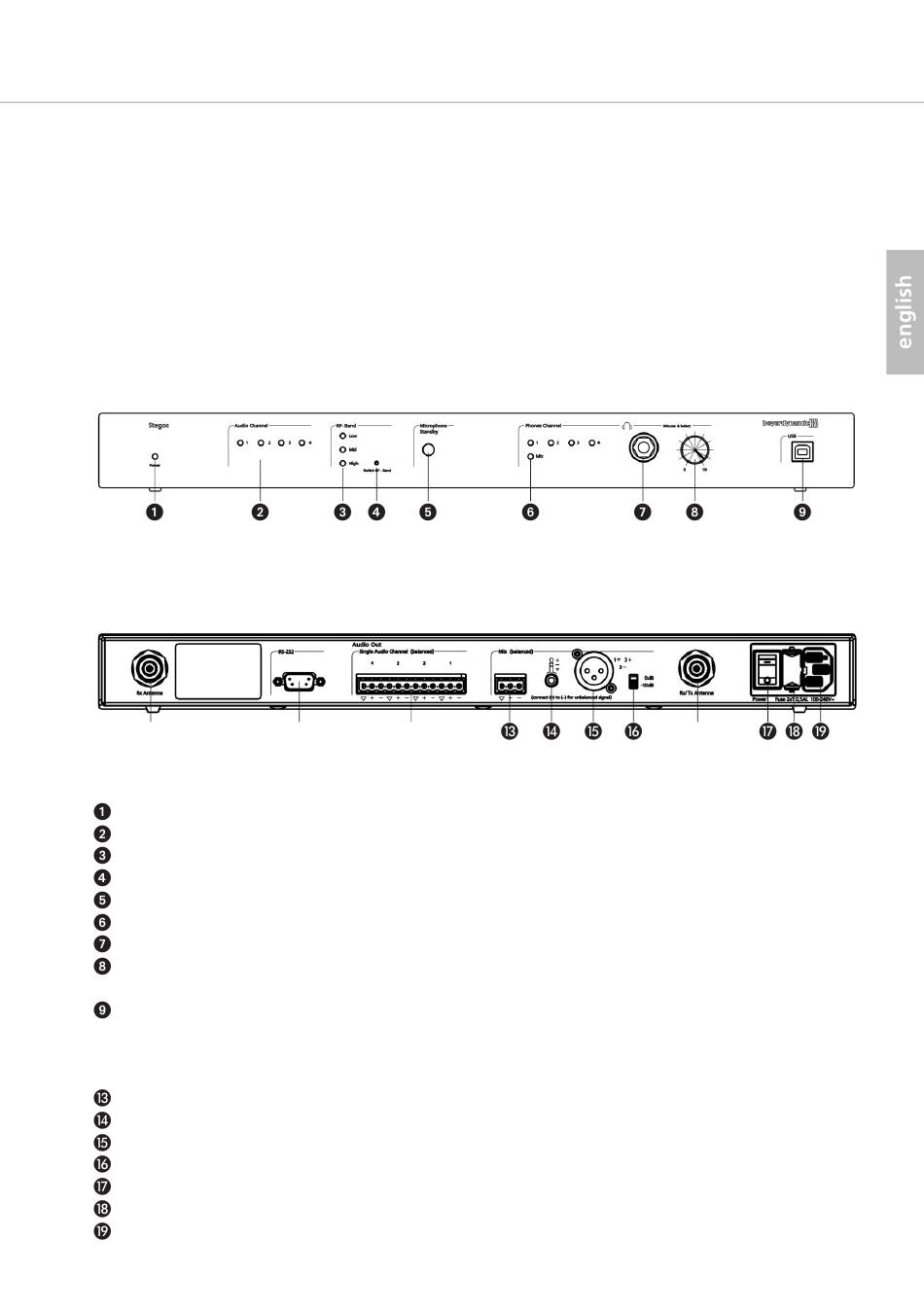

Front view
Rear view
µ
Power on LED
Audio channel LEDs 1 to 4 (green = channel vacant; red = channel occupied)
LEDs for RF band (high, mid, low)
Push-button for RF band selection
Standby button for microphone
LED for headphone channel
Headphone connection
Rotary potentiometer with push-button to select headphone channel and volume of the individual
microphones
USB connection
µ Antenna connection
¸ RS 232 interface
¹ Output audio channels, 12-pin Phoenix terminal strip
Connection for video conference system, 3-pin Phoenix terminal strip
Connection for video conference system, mini jack (3.5 mm)
Connection for video conference system, 3-pin XLR
Changeover switch for output level
On/Off switch
Fuse
Mains connection
¸ ¹
15
µ
