Installation and connection
Before Adjusting the Camera

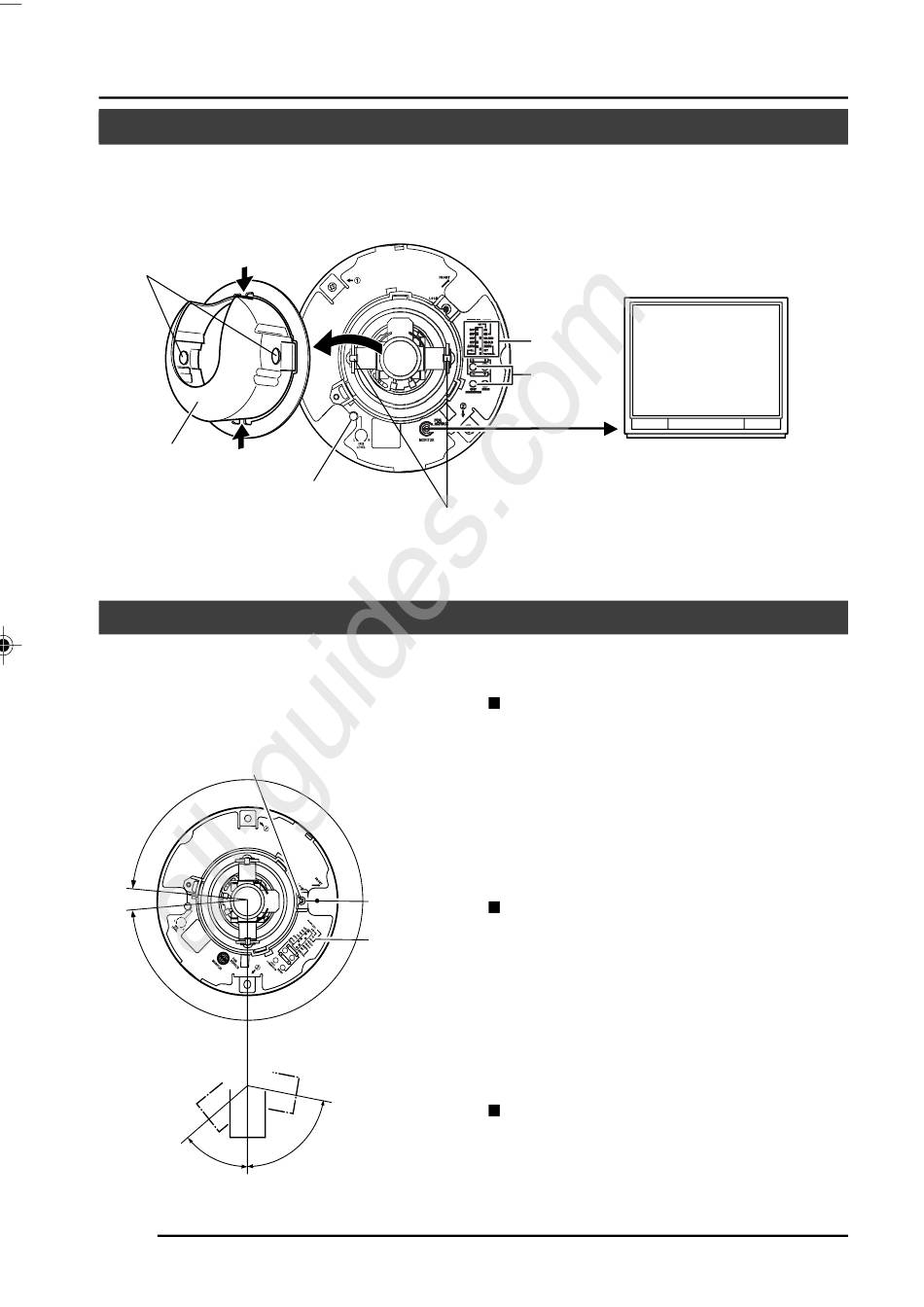

Press A and B lightly, and remove inner cover.
The MONITOR terminal is used when making various adjustments to the camera at installa-
tion.
C
A
Inner cover
B
IRIS
LEVEL Volume
After making camera adjustments, attach the inner cover to ensure that the tilt lock screws fit
into the holes (C).
Adjusting the Lens and Camera Angle
Remove the inner cover, and adjust the camera angle of the zoom and focus positions. Mount
the inner cover.
Horizontal
Lock screw
80˚
50˚
Vertical rotation
E-14
All manuals and user guides at all-guides.com
Tilt lock screws
Variable
range 350˚
LENS
CENTER
FOCUS ADJ.
Switch
Setting switch
Adjustment
button
75Ω termination
Monitor TV
Open
Horizontal rotation
(adjustable range: 350°)
1.
Loosen the horizontal LOCK screw.
2.
Holding the both tilt lock screws, rotate
horizontally.
3.
Tighten the horizontal LOCK screw.
Vertical rotation
(adjustable range: +80°, –50°)
1.
Loosen the tilt lock screws.
2.
Holding the rotation levers, rotate
vertically.
3.
Tighten the tilt lock screws.
Image inclination
(adjustable range: ±15°)
Manipulate the rotation levers to adjust
the inclination of the image.
