3.3 BACK4 ENERGY

The device can be used differently depending on the needs of the patient and the recommendations of the
professional.
Mode
RET
CET
MIX
Hi-TENS
Hi-EMS
All diagrams were obtained using a 500 ohm load, except for MIX mode which uses a 50 ohm load.
34
Frequency
R E T : m o n o p o l a r r e s i s -
t i ve e n e r g y a t 5 0 0 k H z
RET + Hi-TENS : monopolar
resistive energy at 300kHz
Soft: monopolar capacitive
e n e r g y a t 5 0 0 k H z
Deep: monopolar capacitive
e n e r g y a t 3 0 0 k H z
M I X : m u l t i p o l a r r e s i s -
t i ve e n e rg y v i a a s i n u -
soidal wave at 1000kHz
MIX + Hi-TENS: multipolar
resistive energy via a si-
nusoidalwave at 500kHz
The pulse frequency can be
set at 2, 5 or 25 Hz. The car-
rier frequency of each pulse
i s 3 0 0 k H z fo r H i -T E N S
(RET) mode and 500 kHz
for Hi-TENS (MIX) mode.
Electrical stimulation with
m o d u l a t e d f r e q u e n c i e s
o f 1 . 5 k H z a n d 4 k H z .

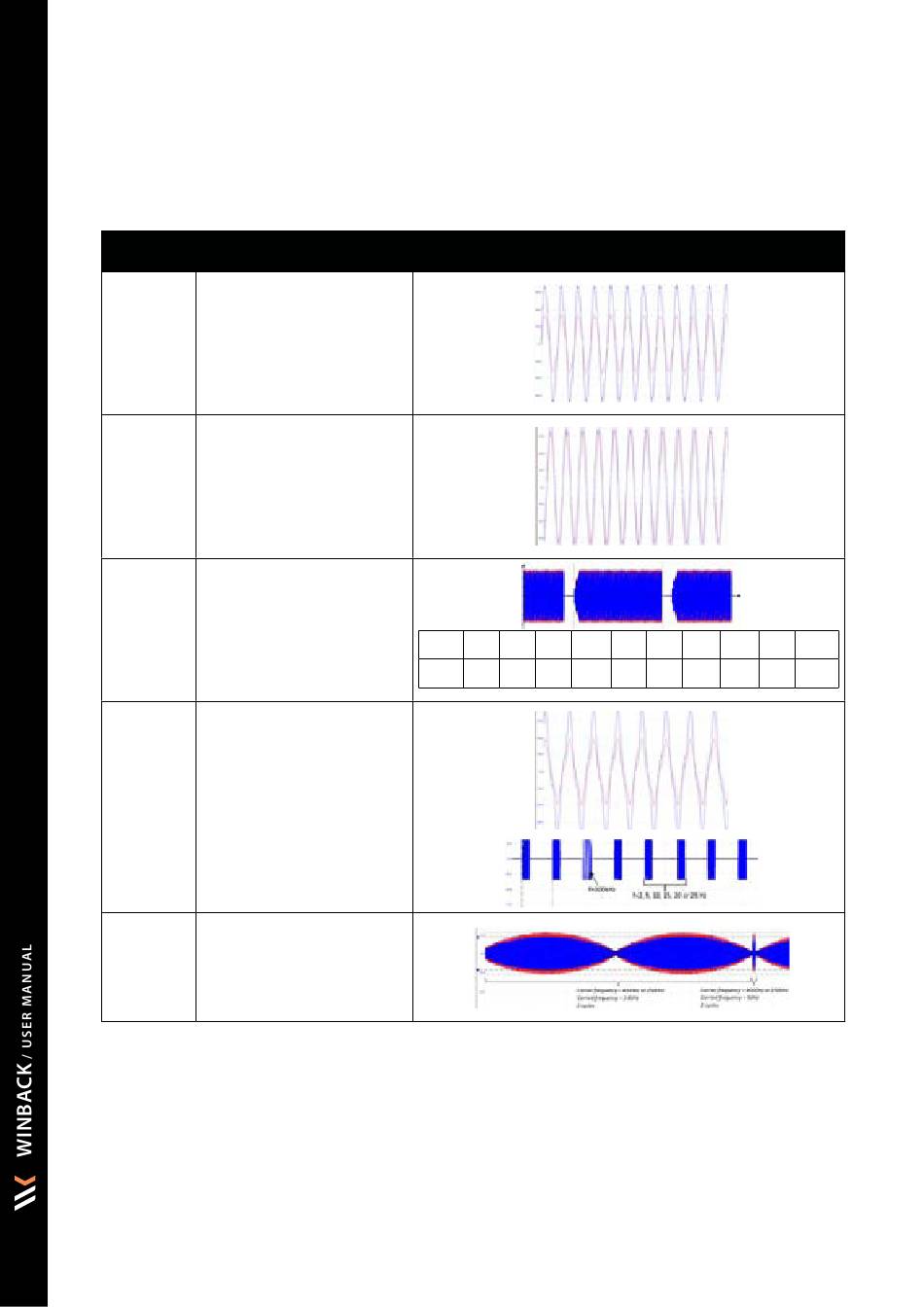

Diagram
Cycle 10% 20% 30% 40%
ms 20 40 60 80
50% 60% 70% 80% 90%
100 120 140 160 180
100%
200
