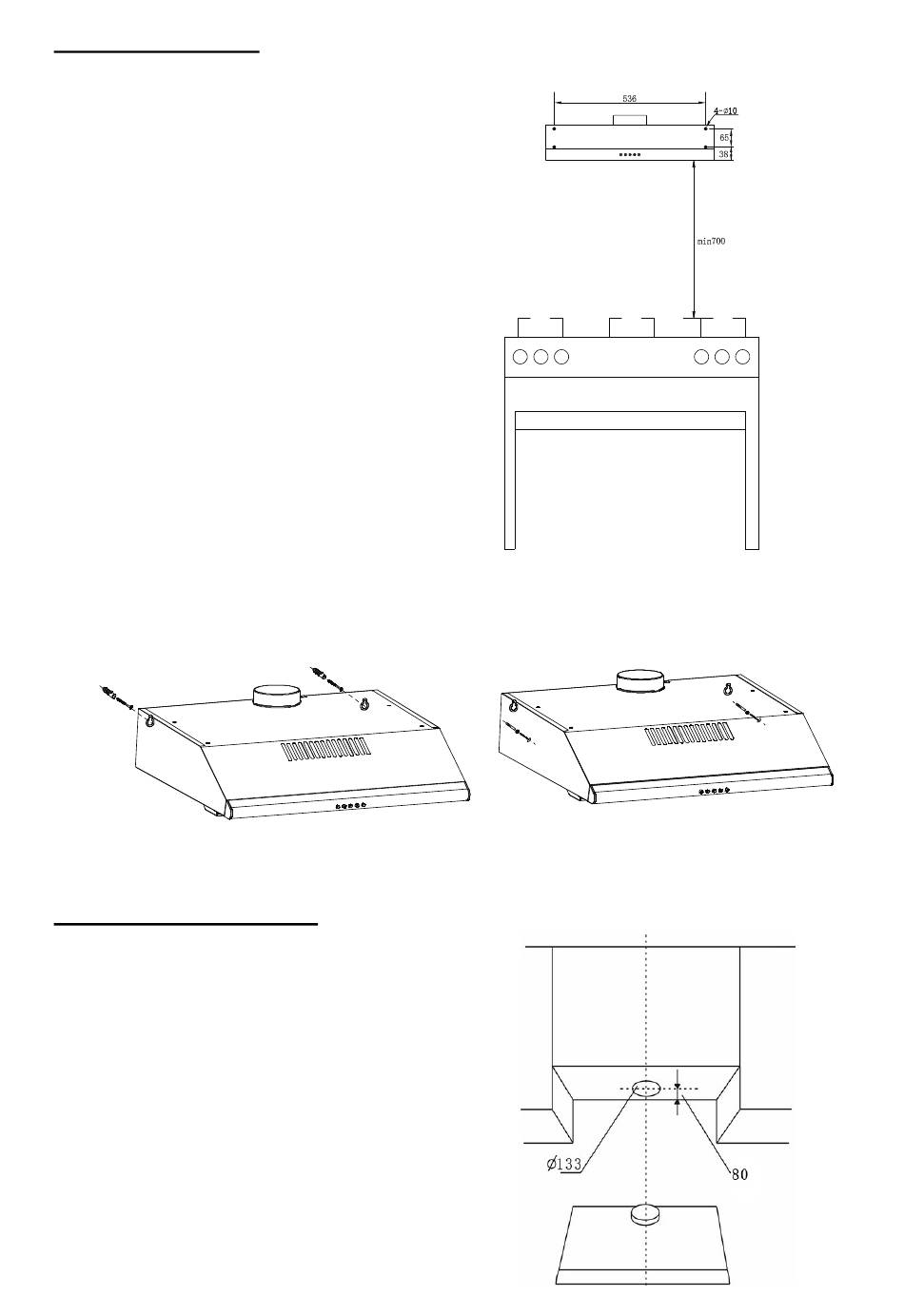

Fixing to the wall
1. Draw a line on the wall in vertical
line with your hob. Mark the 4 holes
to
be drilled in the wall, respecting
the distances indicated; Make the 4
holes and fit the 4 screw anchors
provided. Take 2 of the screws
provided and insert them in the
topmost screw anchors without,
however,
screwing
completely. Hang the hood on the 2
screws; Working from inside the
hood,
tighten
completely.
2. Make the electrical connection.
Fitting under wall unit
1. Drill
4
holes
respecting the distance indicated.
Push the hood up against the wall unit
and insert the 4 screws operating
from inside the wall unit. Connect a
flexible tube to the hood flange, using
a metal hose clamp. Tube and hose
clamps are not provided.
them
down
the
2
screws
in
the
wall
unit,
7
