the spanner in the opposite direction to the direction of rotation (Caution! left-hand thread).
Tighten the nut with the spanner 19.

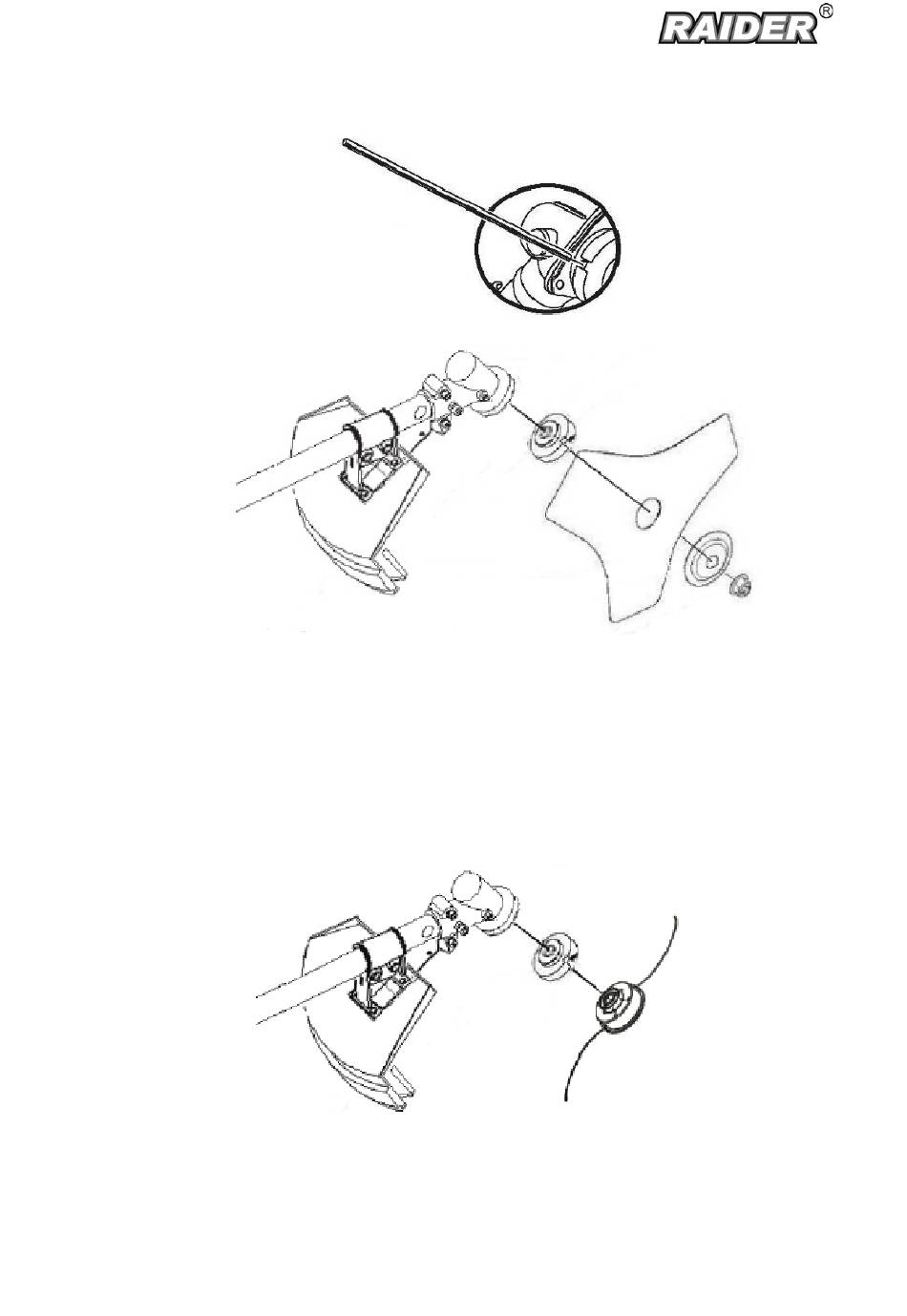

3.9. Fitting the trimmer head.
Fit the trimmer head on the output shaft. Turn the blade shaft until one of the holes in the
drive disc aligns with the corresponding hole in the gear housing. Insert the locking pin in the
hole to lock the shaft. Screw on the trimmer head/plastic blades in the opposite direction to
the direction of rotation. If the length of cord is not enough, press the button in the middle of
trimmer head and pull the cord to the desired length. If the length of cord is greater than the
diameter of the protective cap, when you start the brush cutter, cord will cut of the required
length from the knife mounted on the protective cap.
3.10. Adjust the shoulder strap for the most comfortable position at working. Adjust the
shoulder strap so that the cutting attachment is parallel to the ground.
Optimised the shaft length and 35 degree bevel gear facilitates operation and allows the
cutting equipment to work parallel with the ground.
