Verloopflenzen
Adapter flanges

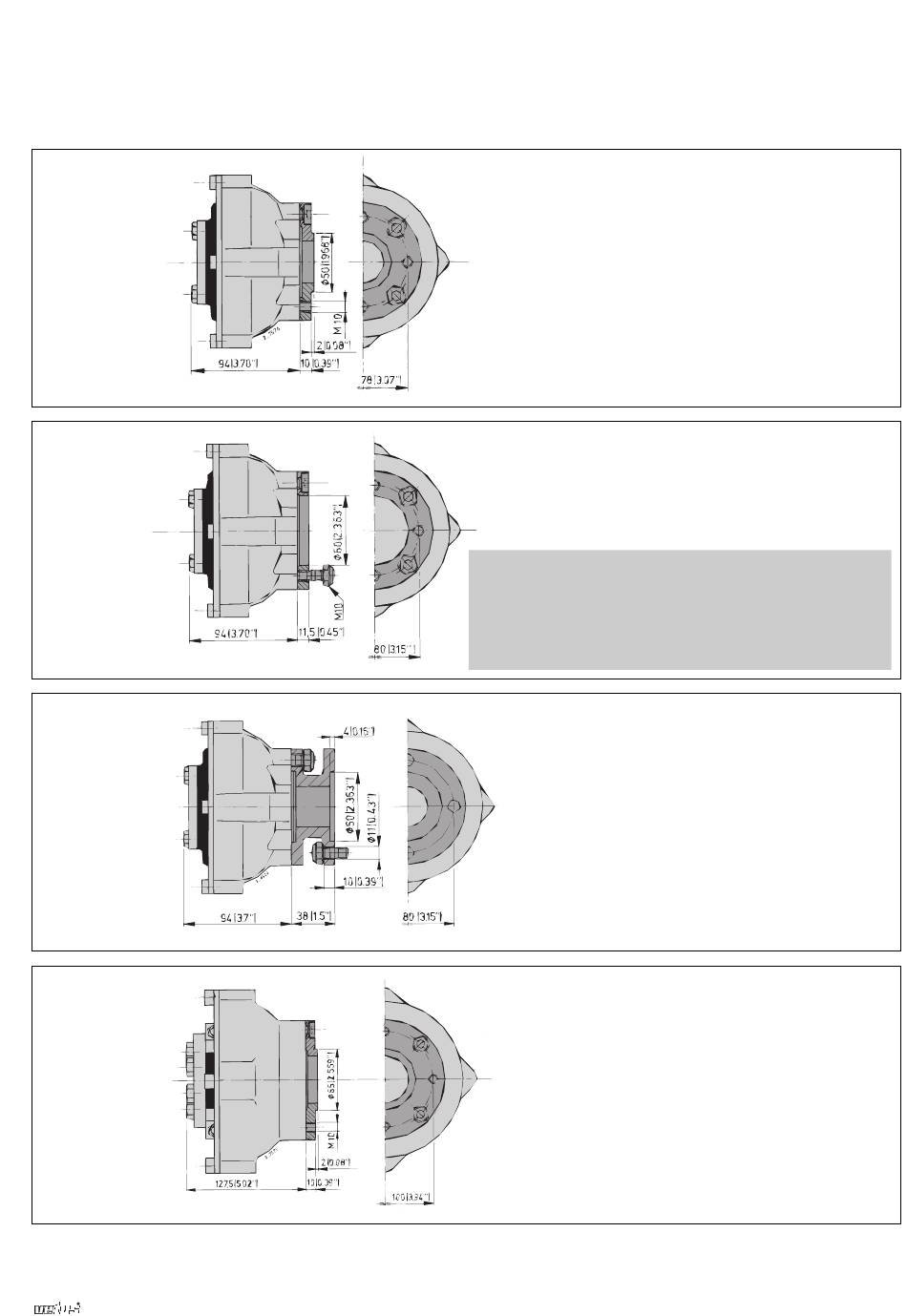

FLANGE1
FLANGE2
FLANGE2A
FLANGE3
Flexible propeller shaft coupling UNIFLEX
Zwischenflanschen
Brides d'adaptation
* Draadgaten van
de keerkoppeling
opboren naar
ø 10,5 mm.
* Rebore threated
holes of gearbox
to 10.5 mm diam.
Bridas de adaptación
Flange di adattamento
- KANZAKI
KC30
KC100
- YANMAR
1GM10
2GM20
3GM30
3HM
- VOLVO
MS2L *
MS2B in line *
MS10A
MS15A
* Gewindebohrungen
des Getriebeflansches
auf ø 10,5 mm
aufbohren.
* Refaire trou fileté de
l'accouplement
jusqu'à ø 10,5 mm.
- VOLVO
MS2A
MS2B down angle
- KANZAKI
KC180
- YANMAR
4JH-TE
MS10L
MS15L
* Retaladrar los orifi-
cios de rosca del cár-
ter de transmissión
hasta ø 10,5 mm.
* Ripraticare i fori filet-
tati della transmission
con ø 10,5 mm.
