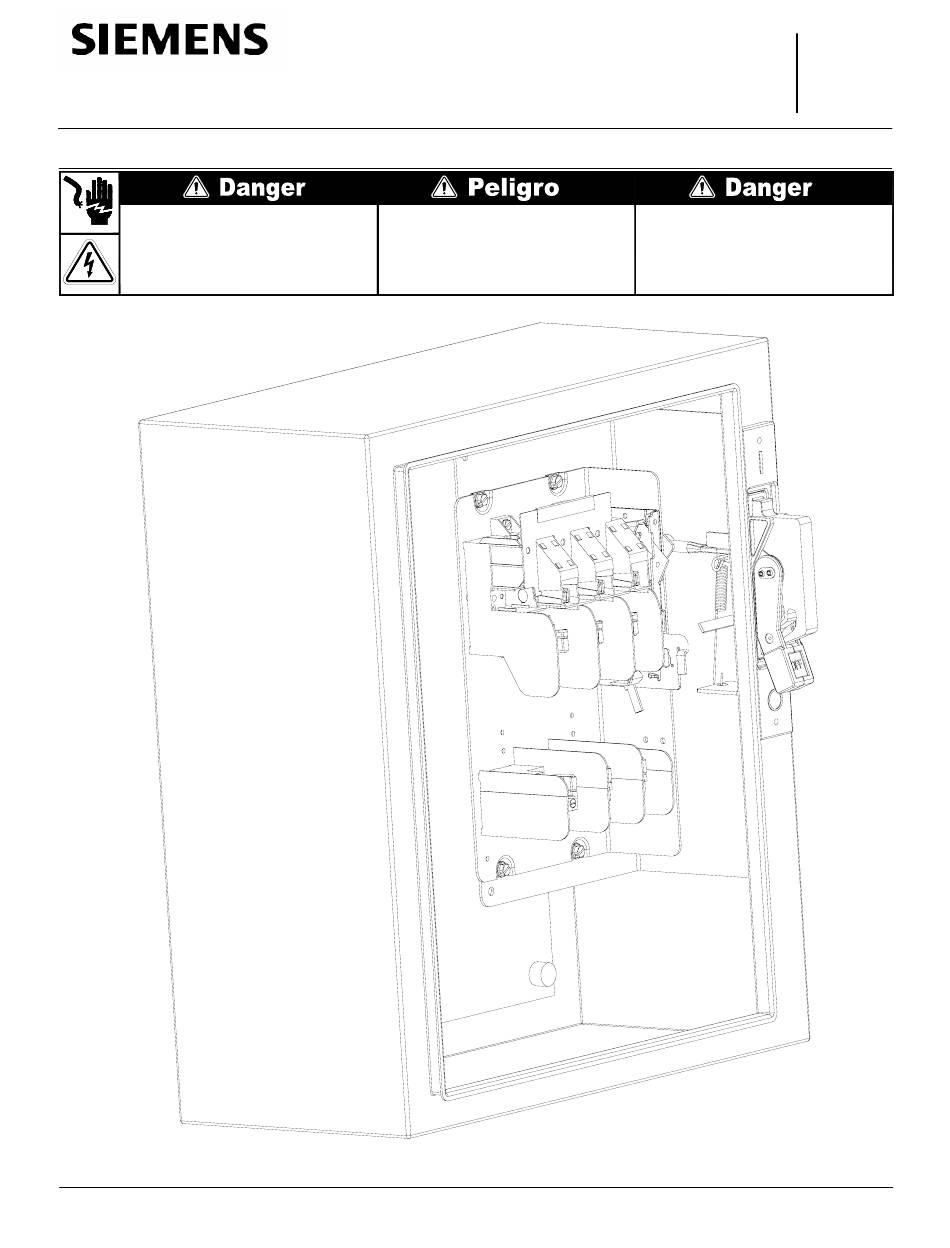

Flange Mounted Disconnect Switch
Installation Instructions
Hazardous Voltage.
Hazardous Voltage.
Will cause death or serious injury.
Will cause death or serious injury.
Turn off and lock out all power supplying this device before
Turn off and lock out all power supplying this device before
working on this device.
working on this device.
Replace all covers before power supplying this device is
Replace all covers before power supplying this device is
turned on.
turned on.
Tensión peligrosa.
Tensión peligrosa.
Puede causar la muerte o lesiones graves.
Puede causar la muerte o lesiones graves.
Desenergice totalmente antes de instalar o darle servicio.
Desenergice totalmente antes de instalar o darle servicio.
Reemplace todas las barreras y cubiertas antes de
Reemplace todas las barreras y cubiertas antes de
energizar el interruptor.
energizar el interruptor.
1 / 12
VBFS321F
Item:
VBFS361F
VBNFS361F
VBFS322F
VBNFS362F
VBFS362F
VBNFS363F
VBFS363F
VBNFS364F
Tension dangereuse.
Tension dangereuse.
Danger de mort ou risque de blessures graves.
Danger de mort ou risque de blessures graves.
Couper l'alimentation de l'appareil et barrer avant de
Couper l'alimentation de l'appareil et barrer avant de
travailler.
travailler.
Remplacez touts les couverts avant que
Remplacez touts les couverts avant que
l'approvisionnement de pouvoir soit alimenté.
l'approvisionnement de pouvoir soit alimenté.
I.L. No. 500524A00
VBFS364F

Publicité

loading

Manuels Connexes pour Siemens VBFS321F

Sommaire des Matières pour Siemens VBFS321F

  • Page 1 VBFS321F VBFS364F Item: VBFS361F VBNFS361F VBFS322F VBNFS362F VBFS362F VBNFS363F VBFS363F VBNFS364F Flange Mounted Disconnect Switch Installation Instructions Hazardous Voltage. Hazardous Voltage. Tensión peligrosa. Tensión peligrosa. Tension dangereuse. Tension dangereuse. Will cause death or serious injury. Will cause death or serious injury.
  • Page 2 Hazardous Voltage. Hazardous Voltage. Tensión peligrosa. Tensión peligrosa. Tension dangereuse. Tension dangereuse. Will cause death or serious injury. Will cause death or serious injury. Puede causar la muerte o lesiones graves. Puede causar la muerte o lesiones graves. Danger de mort ou risque de blessures graves. Danger de mort ou risque de blessures graves.
  • Page 3 Part Hardware Index: Machine screws, (2) 10-32 x 1", Handle cover plate Machine screws, (2) 1/4-20 x 3/4", Flange mounting Lock washers, (2) #10, Handle cover plate Flat washers, (6) 1/4", Flange mounting, Door handle plate Lock washers, (4) 1/4", Flange mounting, Door handle plate Nut, (4) 1/4-20, Flange mounting, Door handle plate Machine screws, (2) #8-32 X 5/16 pan head, Cover interlock Lock washers, external tooth, (2) #8, Cover interlock...
  • Page 4 Minimum Enclosure Size** CATALOG NO. AMPERAGE DESCRIPTION LENGTH WIDTH DEPTH FUSIBLE 14.25 7.00 6.94 VBFS321F / VBFS361F NON-FUSIBLE 11.78 7.00 6.94 VBNFS361F VBFS322F / VBFS362F FUSIBLE 16.30 9.05 6.94 NON-FUSIBLE 16.30 9.05...
  • Page 5 Mounting and Handle Cut-out Dimensions: Optional Enclosure Cut-out Dimensions: (Handle must be removed during installation to use the cut-outs below.) 5 / 12 I.L. No. 500524A00...
  • Page 6 Hazardous Voltage. Hazardous Voltage. Tensión peligrosa. Tensión peligrosa. Tension dangereuse. Tension dangereuse. Will cause death or serious injury. Will cause death or serious injury. Puede causar la muerte o lesiones graves. Puede causar la muerte o lesiones graves. Danger de mort ou risque de blessures graves. Danger de mort ou risque de blessures graves.
  • Page 7 Enclosure Installation Torque to 55+/-5 lb-ins. Torque to 15 lb-ins 7 / 12 I.L. No. 500524A00...
  • Page 8 When installing Siemens door kits DKR2 or DKR3 on Hoffman enclosure series A-xxAB or Rittal enclosure series E xxAB, follow instructions supplied with door handle kit except where indicated below:...
  • Page 9 When installing Siemens door kits DKR2 or DKR3 on Hoffman enclosure series A-xxAB or Rittal enclosure series E xxAB, follow instructions supplied with door handle kit except where indicated below: Gasket from DKR2 or DKR3. See instructions supplied with Door Latch Kit for Torque to 45+/-5 lb-ins.
  • Page 10 Hazardous Voltage. Hazardous Voltage. Tensión peligrosa. Tensión peligrosa. Tension dangereuse. Tension dangereuse. Will cause death or serious injury. Will cause death or serious injury. Puede causar la muerte o lesiones graves. Puede causar la muerte o lesiones graves. Danger de mort ou risque de blessures graves. Danger de mort ou risque de blessures graves.
  • Page 11 Installation of Cover Catch Step 2 - Installation of Cover Catch 2 X No. 2 X 15 lb.in 2 X 8–32 X .312” Step 3 - Verify operation of cover catch ( Switch ON ) Result Go To Closed Open Cover should Step 5 remain closed...
  • Page 12 Step 6 - Adjust Cover Catch Up 90º 5 lbf 2 X 15 lb.in. Step 5 Technical Support: Toll Free: 1-800-241-4453 Internet: http://www.sea.siemens.com/power 12 / 12 I.L. No. 500524A00 Subject to change without prior notice Siemens Energy & Automation Inc. , Bellefontaine, OH U.S.A.

  • Page 13: Installation Instructions

    Panel Mounted Linkage Kit Handle Kit Disconnect Switch VBFS321 VBFS364 VBFS361 VBNFS361 VBLK1 VBH1 Item: VBFS322 VBNFS362 VBLK2 VBH14X VBFS362 VBNFS363 Shaft Driven Disconnect Switch VBFS363 VBNFS364 One Panel Mounted Disconnect Switch, one Linkage Kit and one Handle Kit required for complete assembly. Installation Instructions Hazardous Voltage.
  • Page 14 Hazardous Voltage. Hazardous Voltage. Tensión peligrosa. Tensión peligrosa. Tension dangereuse. Tension dangereuse. Will cause death or serious injury. Will cause death or serious injury. Puede causar la muerte o lesiones graves. Puede causar la muerte o lesiones graves. Danger de mort ou risque de blessures graves. Danger de mort ou risque de blessures graves.
  • Page 15 Panel Mounted Assembly Linkage Kit Handle Assembly 3 / 15 I.L. No. 500524B01...
  • Page 16 Minimum Enclosure Size** CATALOG NO. AMPERAGE DESCRIPTION LENGTH WIDTH DEPTH FUSIBLE 14.25 7.00 6.94 VBFS321F / VBFS361F NON-FUSIBLE 11.78 7.00 6.94 VBNFS361F VBFS322F / VBFS362F FUSIBLE 16.30 9.05 6.94 NON-FUSIBLE 16.30 9.05...

  • Page 17: Important

    Switch Mounting and Handle Mounting / Cut-out Dimensions Fused Disconnect Switch Mounting Non-Fused Disconnect Switch Mounting Cat. No. Cat. No. VBFS321 11.38 2.50 0.86 2.31 VBNFS361 9.29 2.50 0.86 2.31 VBFS322 12.62 3.97 0.86 2.31 VBNFS362 9.29 3.97 0.86 2.31 VBFS361 11.38 2.50...
  • Page 18 Hazardous Voltage. Hazardous Voltage. Tensión peligrosa. Tensión peligrosa. Tension dangereuse. Tension dangereuse. Will cause death or serious injury. Will cause death or serious injury. Puede causar la muerte o lesiones graves. Puede causar la muerte o lesiones graves. Danger de mort ou risque de blessures graves. Danger de mort ou risque de blessures graves.
  • Page 19 Prepare Threaded Rod (Variable Depth Kit, VBLK2, ONLY) Rod Length = Panel Mounting Depth – 3.00” 7 / 15 I.L. No. 500524B01...
  • Page 20 Hazardous Voltage. Hazardous Voltage. Tensión peligrosa. Tensión peligrosa. Tension dangereuse. Tension dangereuse. Will cause death or serious injury. Will cause death or serious injury. Puede causar la muerte o lesiones graves. Puede causar la muerte o lesiones graves. Danger de mort ou risque de blessures graves. Danger de mort ou risque de blessures graves.
  • Page 21 Install Handle Assembly Enclosure shown in phantom Torque to 35+/-5 lb-ins. Install Interlock lever Torque to 17+/-3 lb-ins 9 / 15 I.L. No. 500524B01...
  • Page 22 Hazardous Voltage. Hazardous Voltage. Tensión peligrosa. Tensión peligrosa. Tension dangereuse. Tension dangereuse. Will cause death or serious injury. Will cause death or serious injury. Puede causar la muerte o lesiones graves. Puede causar la muerte o lesiones graves. Danger de mort ou risque de blessures graves. Danger de mort ou risque de blessures graves.
  • Page 23 Install Threaded Rod Install Hitch Pin Install Return Spring 11 / 15 I.L. No. 500524B01...
  • Page 24 Hazardous Voltage. Hazardous Voltage. Tensión peligrosa. Tensión peligrosa. Tension dangereuse. Tension dangereuse. Will cause death or serious injury. Will cause death or serious injury. Puede causar la muerte o lesiones graves. Puede causar la muerte o lesiones graves. Danger de mort ou risque de blessures graves. Danger de mort ou risque de blessures graves.
  • Page 25 Hazardous Voltage. Hazardous Voltage. Tensión peligrosa. Tensión peligrosa. Tension dangereuse. Tension dangereuse. Will cause death or serious injury. Will cause death or serious injury. Puede causar la muerte o lesiones graves. Puede causar la muerte o lesiones graves. Danger de mort ou risque de blessures graves. Danger de mort ou risque de blessures graves.
  • Page 26 Installation of Cover Catch Step 2 - Installation of Cover Catch 2 X No. 2 X 17+/-3 lb.in. 2 X 8–32 X .312” Step 3 - Verify operation of cover catch ( Switch ON ) Result Go To Closed Open Cover should Step 5 remain closed...
  • Page 27 Step 6 - Adjust Cover Catch Up 90º 5 lbf 2 X 17+/-3 lb.in. Step 5 Technical Support: Toll Free: 1-800-241-4453 Internet: http://www.sea.siemens.com/power 15 / 15 I.L. No. 500524B01 Subject to change without prior notice Siemens Energy & Automation Inc. , Bellefontaine, OH U.S.A.
  • Page 28 Panel Mounted Cable Kit Handle Kit Disconnect Switch VBFS321 VBFS364 VBFS361 VBNFS361 FHOEC036 Item: VBFS322 VBNFS362 VBHM1 FHOEC048 VBFS362 VBNFS363 (TM) Max Flex Disconnect Switch VBFS363 VBNFS364 One Panel Mounted Disconnect Switch, one Cable Kit and one Handle Kit required for complete assembly. Installation Instructions Hazardous Voltage.
  • Page 29 Hazardous Voltage. Hazardous Voltage. Tensión peligrosa. Tensión peligrosa. Tension dangereuse. Tension dangereuse. Will cause death or serious injury. Will cause death or serious injury. Puede causar la muerte o lesiones graves. Puede causar la muerte o lesiones graves. Danger de mort ou risque de blessures graves. Danger de mort ou risque de blessures graves.
  • Page 30 Panel Mounted Assembly Cable Kit Handle Assembly 3 / 16 I.L. No. 500524E00...
  • Page 31 Minimum Enclosure Size** CATALOG NO. AMPERAGE DESCRIPTION LENGTH WIDTH DEPTH FUSIBLE 14.25 7.00 6.94 VBFS321F / VBFS361F NON-FUSIBLE 11.78 7.00 6.94 VBNFS361F VBFS322F / VBFS362F FUSIBLE 16.30 9.05 6.94 NON-FUSIBLE 16.30 9.05...
  • Page 32 Handle Cut-out Dimensions: Standard Cut-Out Alternate Cut-Out 5 / 16 I.L. No. 500524E00...
  • Page 33 Hazardous Voltage. Hazardous Voltage. Tensión peligrosa. Tensión peligrosa. Tension dangereuse. Tension dangereuse. Will cause death or serious injury. Will cause death or serious injury. Puede causar la muerte o lesiones graves. Puede causar la muerte o lesiones graves. Danger de mort ou risque de blessures graves. Danger de mort ou risque de blessures graves.
  • Page 34 Hazardous Voltage. Hazardous Voltage. Tensión peligrosa. Tensión peligrosa. Tension dangereuse. Tension dangereuse. Will cause death or serious injury. Will cause death or serious injury. Puede causar la muerte o lesiones graves. Puede causar la muerte o lesiones graves. Danger de mort ou risque de blessures graves. Danger de mort ou risque de blessures graves.
  • Page 35 Prepare Handle for Installation Left hand side mounting Right hand side mounting (Modify Interlock Lever Position) (Use interlock lever as shipped from the factory) Move Interlock lever to this side of handle for left hand side mounting. Torque mounting screw to 17+/- 3 lb-ins. Install Handle on Enclosure Enclosure Torque to 75 lb-ins.
  • Page 36 Hazardous Voltage. Hazardous Voltage. Tensión peligrosa. Tensión peligrosa. Tension dangereuse. Tension dangereuse. Will cause death or serious injury. Will cause death or serious injury. Puede causar la muerte o lesiones graves. Puede causar la muerte o lesiones graves. Danger de mort ou risque de blessures graves. Danger de mort ou risque de blessures graves.
  • Page 37 Prepare Panel Mounted Disconnect for Installation Torque to 27+/-5 lb-ins Note: Drive Pin, item 19, Torque to lubricated at factory 27+/-5 lb-ins Load Base, Item 1b, not shown for clarity Completed Assembly 10 / 16 I.L. No. 500524E00...
  • Page 38 Hazardous Voltage. Hazardous Voltage. Tensión peligrosa. Tensión peligrosa. Tension dangereuse. Tension dangereuse. Will cause death or serious injury. Will cause death or serious injury. Puede causar la muerte o lesiones graves. Puede causar la muerte o lesiones graves. Danger de mort ou risque de blessures graves. Danger de mort ou risque de blessures graves.
  • Page 39 Install E-Ring 12 / 16 I.L. No. 500524E00...
  • Page 40 Hazardous Voltage. Hazardous Voltage. Tensión peligrosa. Tensión peligrosa. Tension dangereuse. Tension dangereuse. Will cause death or serious injury. Will cause death or serious injury. Puede causar la muerte o lesiones graves. Puede causar la muerte o lesiones graves. Danger de mort ou risque de blessures graves. Danger de mort ou risque de blessures graves.
  • Page 41 Hazardous Voltage. Hazardous Voltage. Tensión peligrosa. Tensión peligrosa. Tension dangereuse. Tension dangereuse. Will cause death or serious injury. Will cause death or serious injury. Puede causar la muerte o lesiones graves. Puede causar la muerte o lesiones graves. Danger de mort ou risque de blessures graves. Danger de mort ou risque de blessures graves.
  • Page 42 Installation of Cover Catch Step 2 - Installation of Cover Catch 2 X No. 2 X 17+/-3 lb.in. 2 X 8–32 X .312” Step 3 - Verify operation of cover catch ( Switch ON ) Result Go To Closed Open Cover should Step 5 remain closed...
  • Page 43 Step 6 - Adjust Cover Catch Up 90º 5 lbf 2 X 17+/-3 lb.in. Step 5 Technical Support: Toll Free: 1-800-241-4453 Internet: http://www.sea.siemens.com/power 16 / 16 I.L. No. 500524E00 Subject to change without prior notice Siemens Energy & Automation Inc. , Bellefontaine, OH U.S.A.
