Control Elements; Sub Level - LD Systems MAUI28 Manuel D'utilisation

1

SUB LEVEL

Presetting of the subwoofer volume in relation to
the volume of the array columns. Basic setting
12 o'clock.
2
MAIN LEVEL
Presetting of the overall volume - the subwoofer
is also controlled in accordance with the SUB
LEVEL preset.
1 2 3
3
4

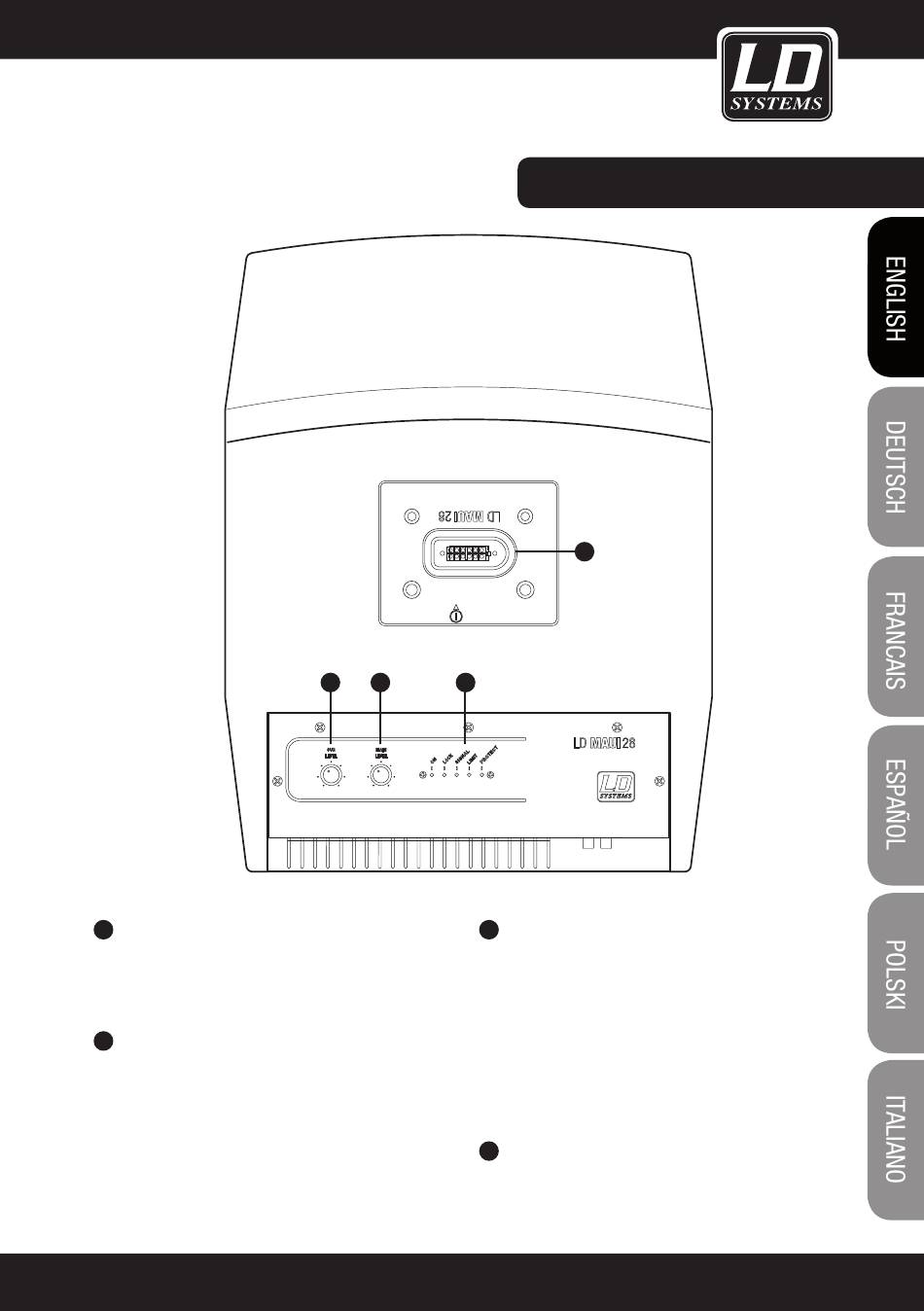

CONTROL ELEMENTS:

4
LEDS
ON: lights up when the unit is on.
LOCK: lights up when the system is plugged
together correctly.
SIGNAL: lights up when a signal is present at the
input.
LIMIT: lights up when the limiter is active.
PROTECT: lights up when the system is overloa-
ded and automatically switches to mute.
MULTIPIN PLUG-IN CONNECTOR
This is where the lower part of the array column
is plugged on.
