Bellcome advanced Manuel De L'utilisateur page 23

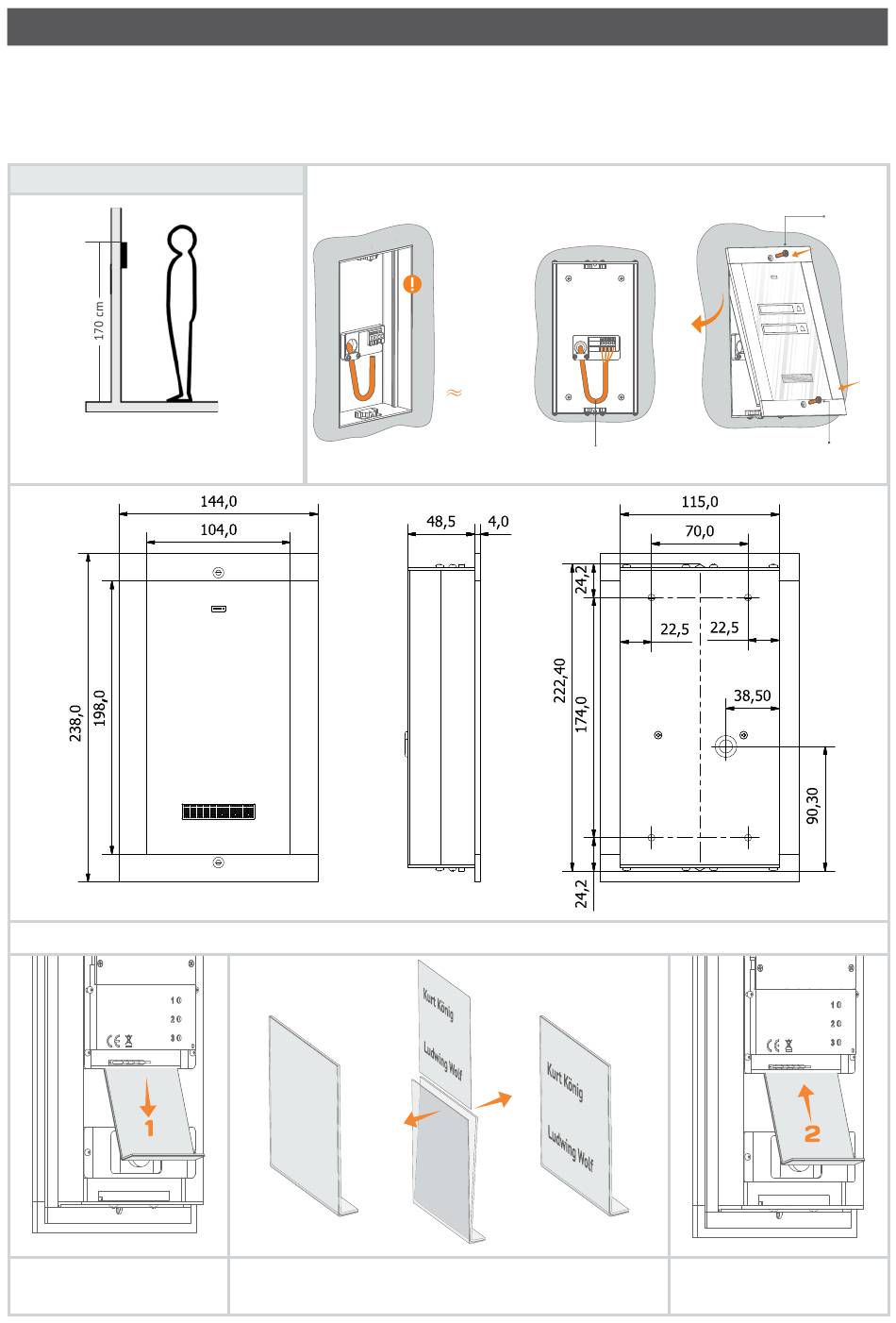

4.6 Installation of the outdoor panel
The outdoor panel is installed at the entrance of the property or building, on the body closest
to the access door, at a height of approx. 1.7 m (upper part) from the ground, protected from
rain and sunrays. The outdoor panel keys numbering is from the bottom up, the first key
meaning address 1.
Before starting...
The outdoor panel is installed at the
entrance to the building, on the body
closest to the entrance door.
Remove the plastic pad from
the keyboard module
- 5
- 5
Frontal view
Name display of inhabitant
Remove the plastic pad from the keyboard module
The frame of the
c m
case must be at
c m
the level of the
wall's surface.
20 cm
Cable length
Lateral view
2
Cable length
Back view
Insert the pad back in the
keyboard module
Torx
screw
1
3
Torx screw
