6 Control
(PSE700-1000)

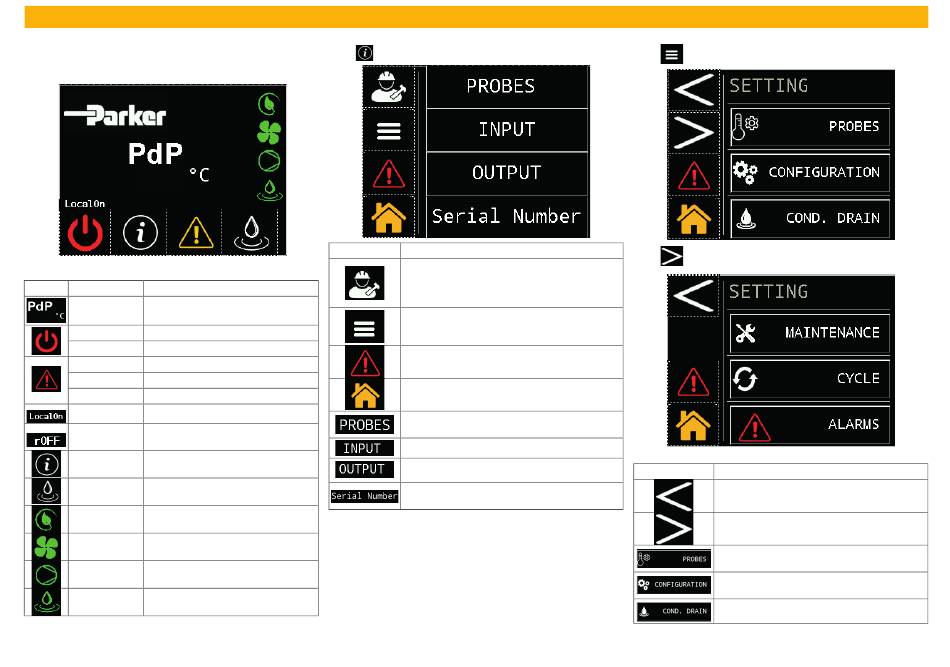

6.1 Control panel "Touch"
Fig.1
3.0
6.2 Symbol
Symbol Status symbol Function
- Dew point temperature
3.0
Green Dryer ON
Red Dryer OFF
Red Alarm present
Yellow Warning present
Absent No alarm/warning present
Local ON Touch ON/OFF command
Remote control with clean contact on
rOFF
the terminal board
- Touch to enter on information menu
- Touch to manually activate the drain
Present when dryer is ON, compressor
Present
is OFF and no alarm is present (cycling)
Present Present when fan is ON
Present Present when compressor is ON
Present Present when drain is ON
Touch

6.3 Information menu

Touch on home screen to enter information menu
Symbol
PSE 325-1000 60Hz
Function
Touch to enter "service / Factory" menus (password
protected).
access is allowed only to Parker qualifi ed or certifi ed
personnel.
Touch to enter "parameter settings" menu: LB1,
HB1; C ° or F °; local or remote; Drain on / off times;
working hours.
Touch to see all available alarm / warning signals.
Touch to return to home screen
Touch to see probe data : B0, B2, B5, B8, P1,
Touch to see digital input
Touch to see digital output
Touch to get dryer information: serial number, soft-
ware version of the PLC / HMI
6.3.1 Setting parameter menu
Touch to eneter on menu 1
Touch for menu 2
Symbol Function
Touch to go back
Touch to move forward to next screen
Touch to view thresholds of analogue output of
dew point "LB1 / HB1",
Touch to confi gure: unit of measure; local / remote
start and alarm signaling,
Touch to confi gure drain
