1 Quick Reference
Microampere current measurements - Available on Keysight N6761A, N6762A, and N678xA SMU
l
power modules. Current measurement can be made as low as 1 μA in the 10 μA range.
Fast Digitizing Available on Keysight N678xA SMU power modules. 5.12 μs/sample for one para-
l
meter; 10.24 μs/sample for two parameters.
System features
Choice of three interfaces - GPIB (IEEE-488), LAN, and USB remote programming interfaces are
l
built in.
Built-in Web server - A built-in Web server lets you control the instrument directly from an internet
l
browser on your computer.
SCPI language - The instrument is compatible with the Standard Commands for Programmable
l
Instruments (SCPI).
Front panel I/O setup - Menus let you set up GPIB and LAN parameters from the front panel.
l
Real-time status information - The front panel indicates the status of each output. It also indicates
l
when a protection shut-down has occurred.
Module identification - Each module has identifying data stored in non-volatile memory. Inform-
l
ation includes model number, serial number, and options.
Universal AC input - Mainframes have universal input voltage capability with active power factor
l
correction.

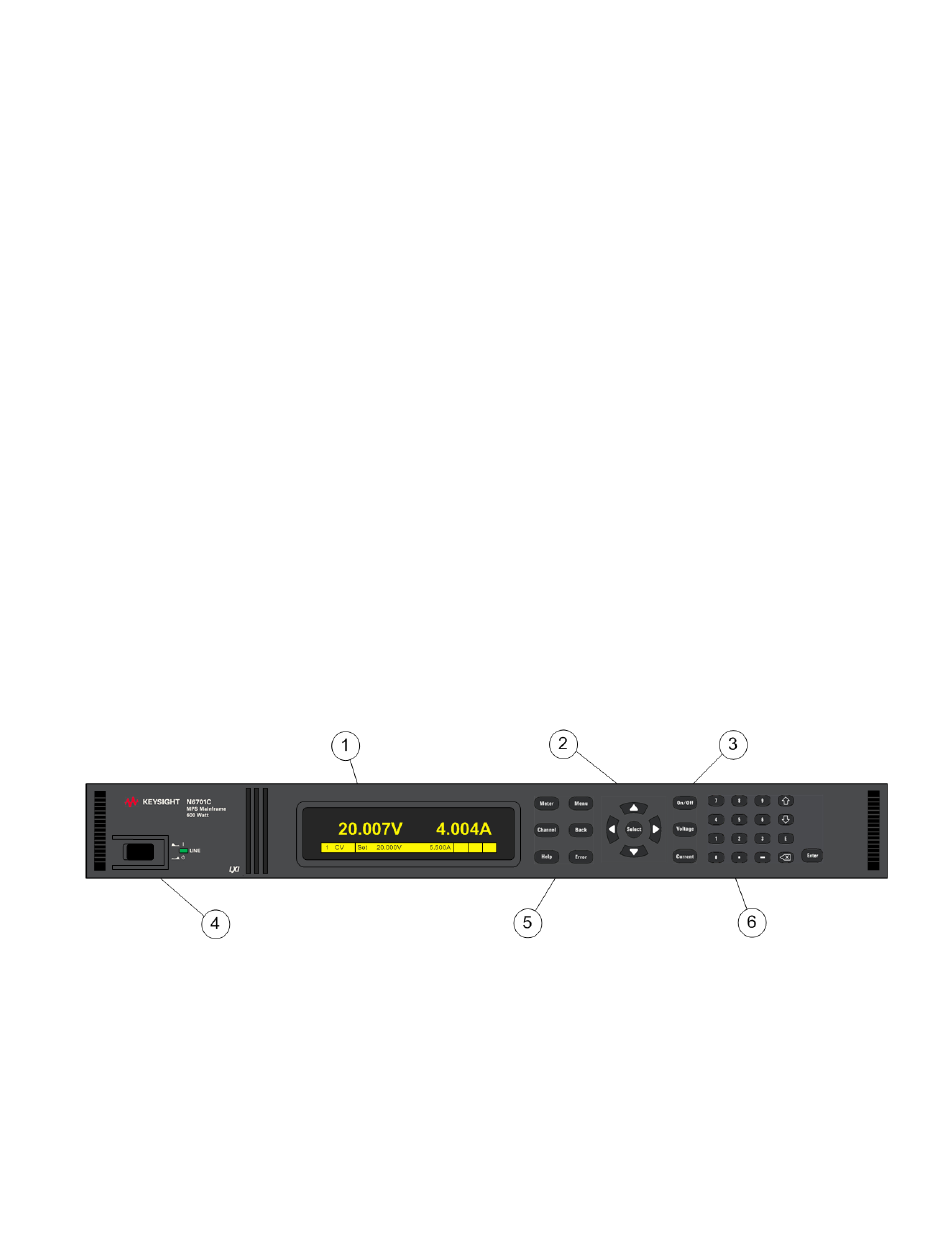

Front Panel at a Glance
1. Display - Turns off after 1 hour of inactivity. Press any key to restore the display.
2. Navigation keys - Move the cursor to a menu item. Select the highlighted menu item.
3. Output keys - Turn the outputs on or off. Enter voltage or current.
4. On/Off switch and LED - LED indicates power is on. Green indicates normal operation. Amber indic-
ates display is in screen-saver mode.
16
Keysight N6700C Series User's Guide
